Varenr. DFR0807

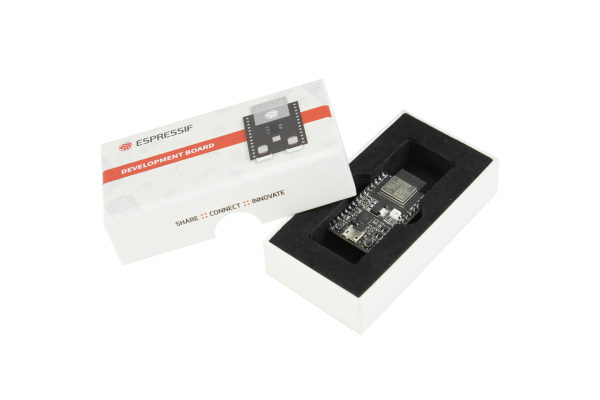

ESP32-C3-DevKitM-1 Development Board

241,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

241,25 DKK pr. stk. -
217,00 DKK pr. stk.
Spar 10%
193,00 DKK pr. stk.
Spar 20%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • User Guides
  • Introduction

    ESP32-C3-DevKitM-1 is an entry-level development board based on ESP32-C3-MINI-1, a module named for its small size. This board integrates complete Wi-Fi and Bluetooth LE functions.

    Most of the I/O pins on the ESP32-C3-MINI-1 module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitM-1 on a breadboard.

    Description of Components

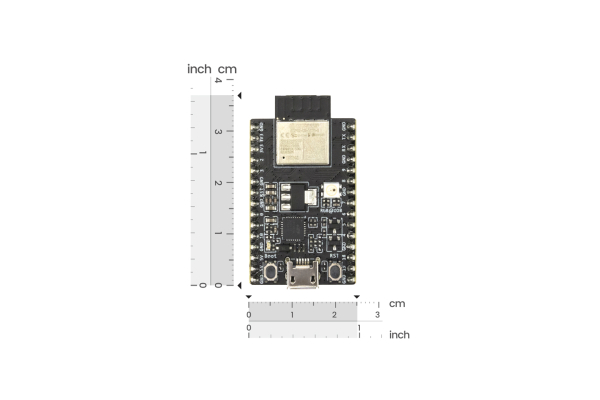

    ESP32-C3-DevKitM-1 Development Board

    Key Component Description
    ESP32-C3-MINI-1 ESP32-C3-MINI-1 is a general-purpose Wi-Fi and Bluetooth LE combo module that comes with a PCB antenna. At the core of this module is ESP32-C3FN4, a chip that has an embedded flash of 4 MB. Since flash is packaged in the ESP32-C3FN4 chip, rather than integrated into the module, ESP32-C3-MINI-1 has a smaller package size.
    5 V to 3.3 V LDO Power regulator that converts a 5 V supply into a 3.3 V output.
    5 V Power On LED Turns on when the USB power is connected to the board.
    I/O Connector All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board.
    Boot Button Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.
    Micro-USB Port USB interface. Power supply for the board as well as the communication interface between a computer and the ESP32-C3FN4 chip.
    Reset Button Press this button to restart the system.
    USB to UART Bridge Single USB-to-UART bridge chip provides transfer rates up to 3 Mbps.
    RGB LED Addressable RGB LED (WS2812), driven by GPIO8.

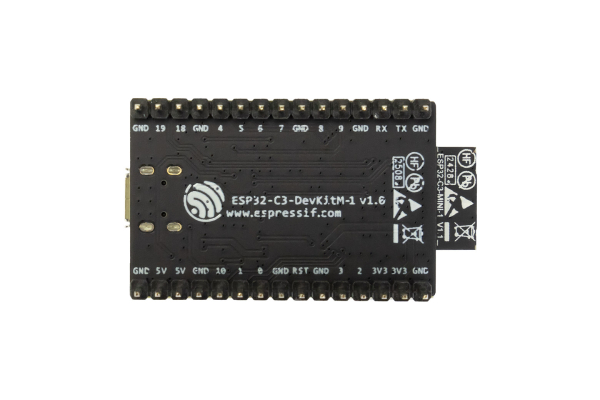

    Pin Header

    ESP32-C3-DevKitM-1 Development Board

    Specification

  • ESP32-C3FN4 embedded, 32-bit RISC-V single-core processor, up to 160 MHz
  • 384 KB ROM
  • 400 KB SRAM
  • 8 KB RTC SRAM
  • 4 MB SPI flash
  • Operating Voltage/Power supply: 3.0~3.6 V
  • Operating Temperature Range: –40~85°C
  • Shipping List

  • ESP32-C3-DevKitM-1 Development Board ×1
