Varenr. DFR0743-SOLO

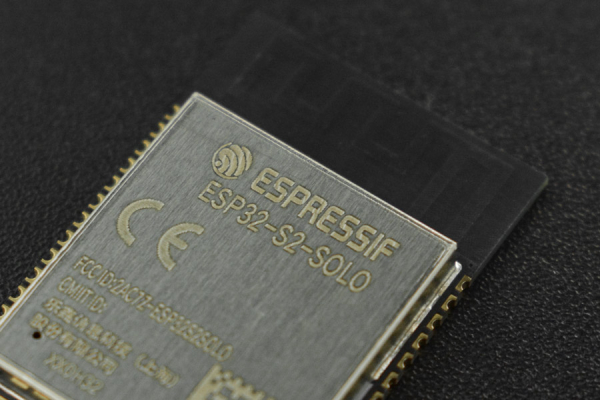

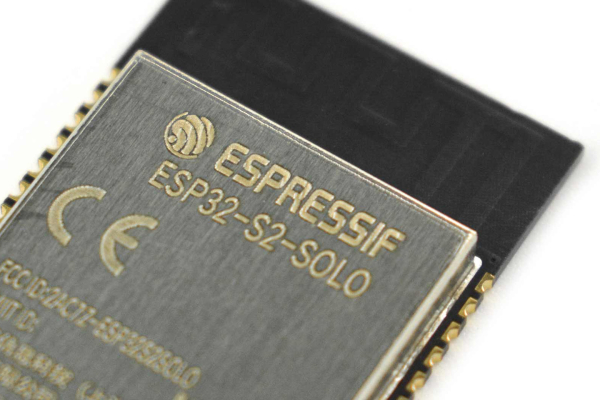

ESP32-S2- SOLO Wi-Fi Module (PCB Antenna)


På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

43,75 DKK pr. stk. -
38,00 DKK pr. stk.
Spar 13%
33,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .


Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.


  • ESP32-S2 Technical Reference Manual
  • ESP32-S2 Hardware Design Guidelines
  • Introduction

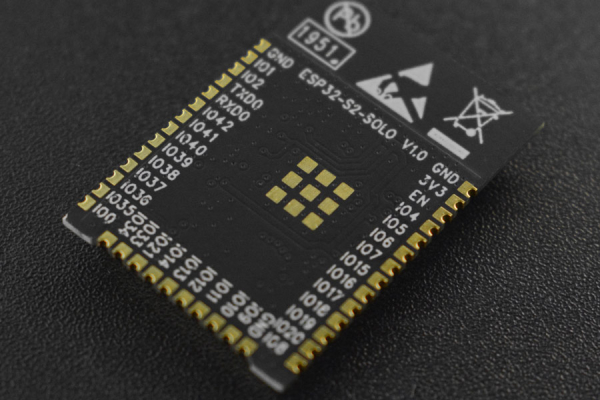

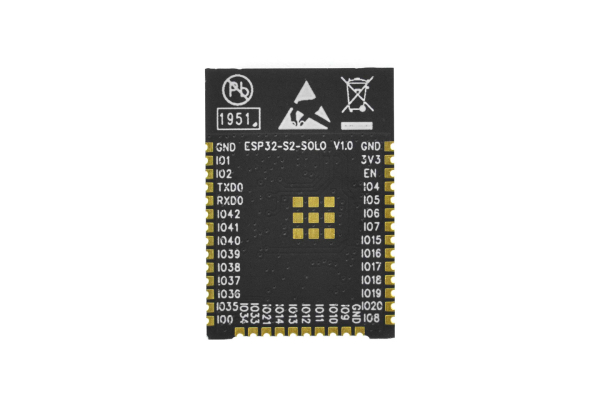

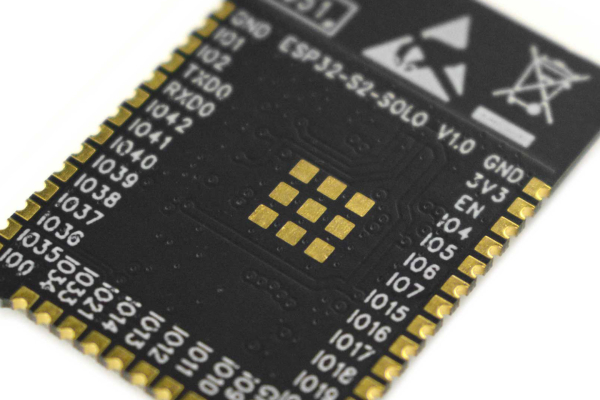

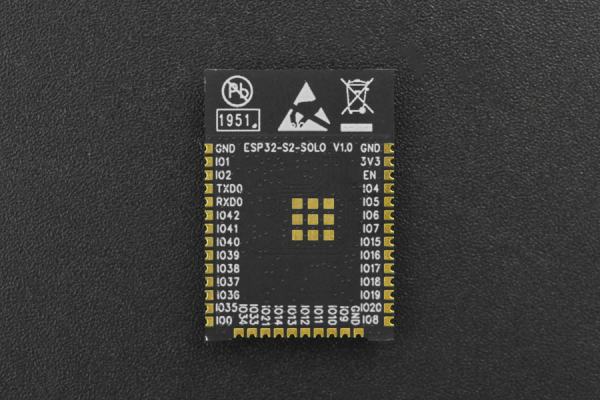

    ESP32-S2- SOLO is a generic WiFi MCU module featuring rich peripherals and high performance. The module has 38 pins and 4 MB SPI flash. With the smallest size of 18×25.5×3.1mm among the S2 modules, it is very suitable for applications requiring a small size.

    At the core of this module is the ESP32-S2 chip. ESP32-S2 is based on the Xtensa® 32-bit LX7 CPU that can operate at up to 240Mhz. The ULP coprocessor can run while the chip is in sleep mode(CPU powered down), which allows it to be used to monitor the state change of peripheral devices or detect if an analog quantity exceeds the preset threshold. Moreover, the ESP32-S2 provides a rich set of peripheral interfaces including SPI, I2S, UART, I2C, LED_PWM, LCD interface, camera interface, ADC, DAC, touch sensor, temperature sensor, as well as 43 GPIOs. It also includes a full-speed USB On-The-Go (OTG) interface to enable USB communication.

    Note: This module is recommended for developers currently. The peripheral circuit needs to be soldered when using, and few peripheral interfaces may not perform the full functionality of the sample code. There are still bugs that have to be found and fixed.


  • Built-in ESP32-S2 chip, Xtensa® single-core 32bit LX7 microcontroller, up to 240MHz
  • Support multiple low-power modes: fine-grained clock gating, dynamic voltage and frequency scaling
  • Security: eFuse, Secure Boot, Flash Encryption, Digital Signature, Integrated AES, SHA and RSA algorithms
  • 128 KB ROM
  • 320 KB SRAM
  • 16 KB RTC SRAM

  • WiFi
  • 802.11 b/g/n
  • Data rate up to 150Mbps
  • 0.4µs guard interval
  • Center frequency range of operating channel: 2412 ~ 2484 MHz

  • Hardware
  • Port: GPIO, SPI, UART, I2C, I2S, LCD interface, Camera interface, IR, pulse counter, LED, PWM, USB1.1, ADC, DAC, capacitive touch sensor, temperature sensor
  • 40 MHz Oscillator
  • 4 MB SPI Flash
  • Operating Voltage/Power Voltage: 3.0 ~ 3.6 V
  • Suggested Operating Temperature: –40 ~ 85 °C

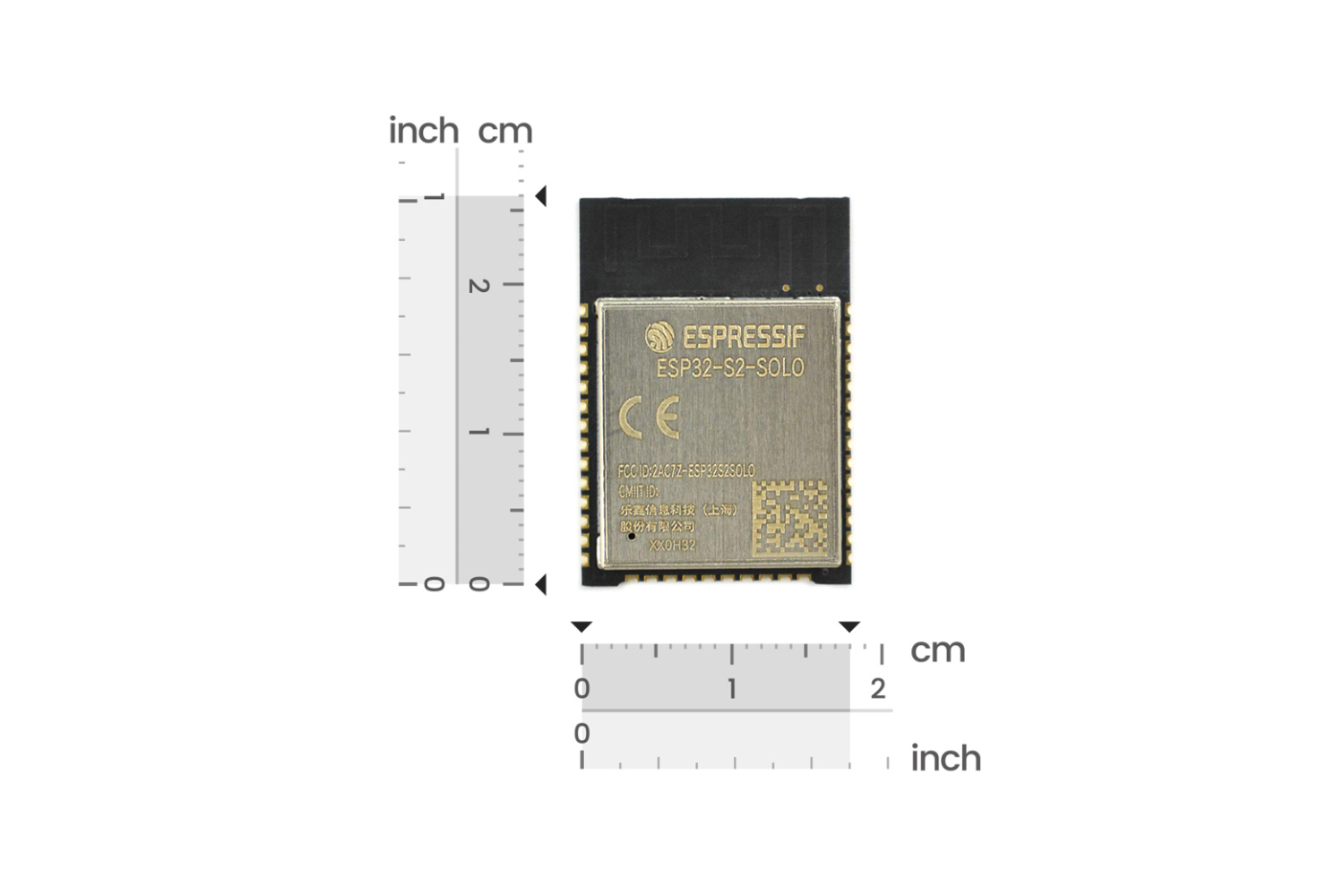

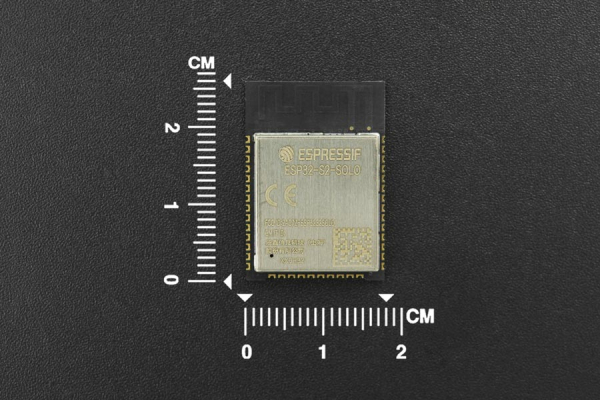

  • Package Size: (18 x 25.5 x 3.1) mm

  • Certification
  • RF Certification: FCC/CE-RED/SRRC

  • Test
  • Shipping List

  • ESP32-S2- SOLO Wi-Fi Module (PCB antenna) x1
