DFRobot

Varenr. DFR0792

Fermion: ADKey Board -10 Keys (Breakout)

50,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

50,00 DKK pr. stk. -
44,00 DKK pr. stk.
Spar 12%
38,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

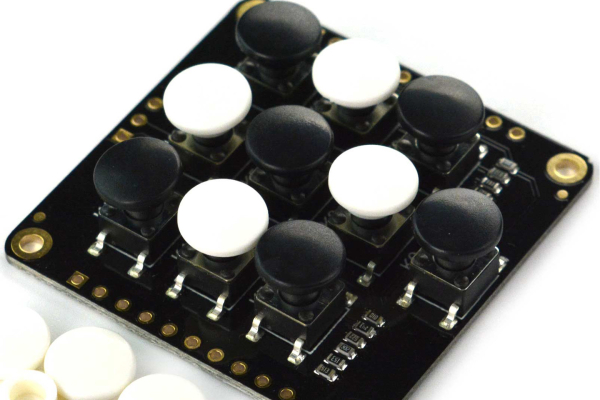

This ADKey board with 10 keys can be used to drive your DFPlayer Pro, DFPlayer Mini, or Voice Recorder Module without programming or using various resistors. It offers 20 delicate button caps with comfortable hand feel, easy to be integrated into projects. You can also connect your favorite keys to the board through the welding pad on both sides. In addition, this ADkey board can be used as the ADkey input of a main-controller, by which it could expand 10 keys for your main-board via only one analog port.

Fermion: ADKey Board -10 Keys (Breakout)

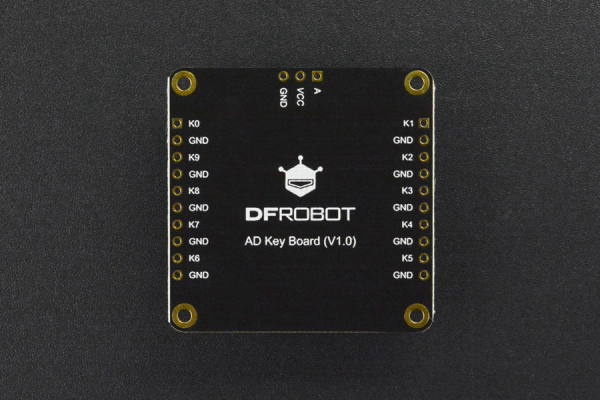

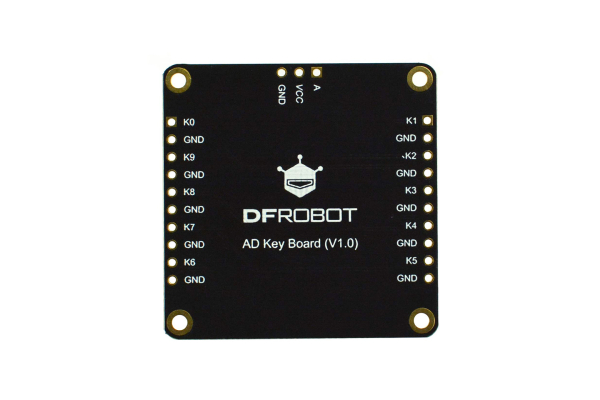

Board Overview

Specification

  • Power Supply: 3.3~5V
  • Key Size: 6*6*7mm

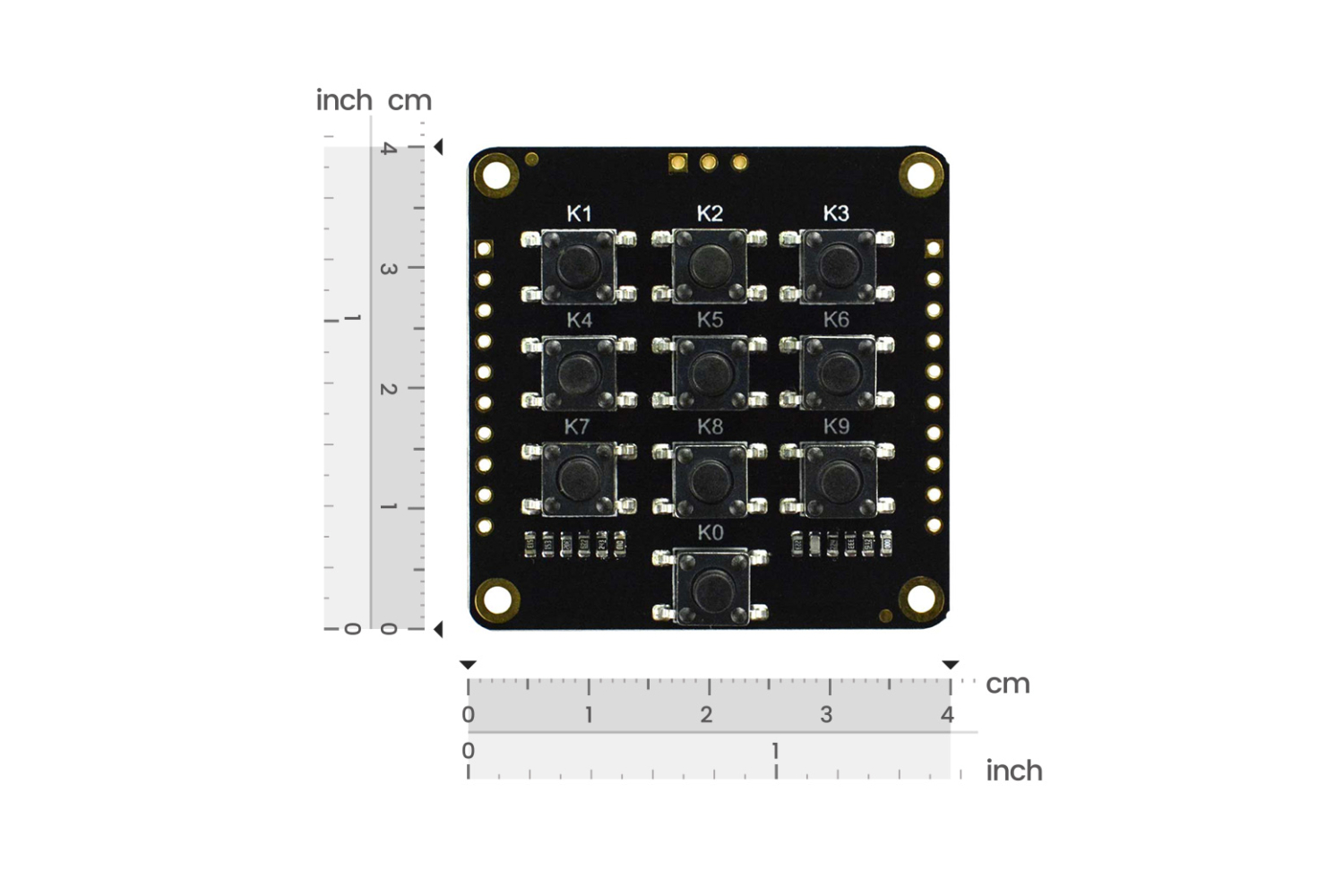

  • Product Size: 40*40mm/1.57*1.57”

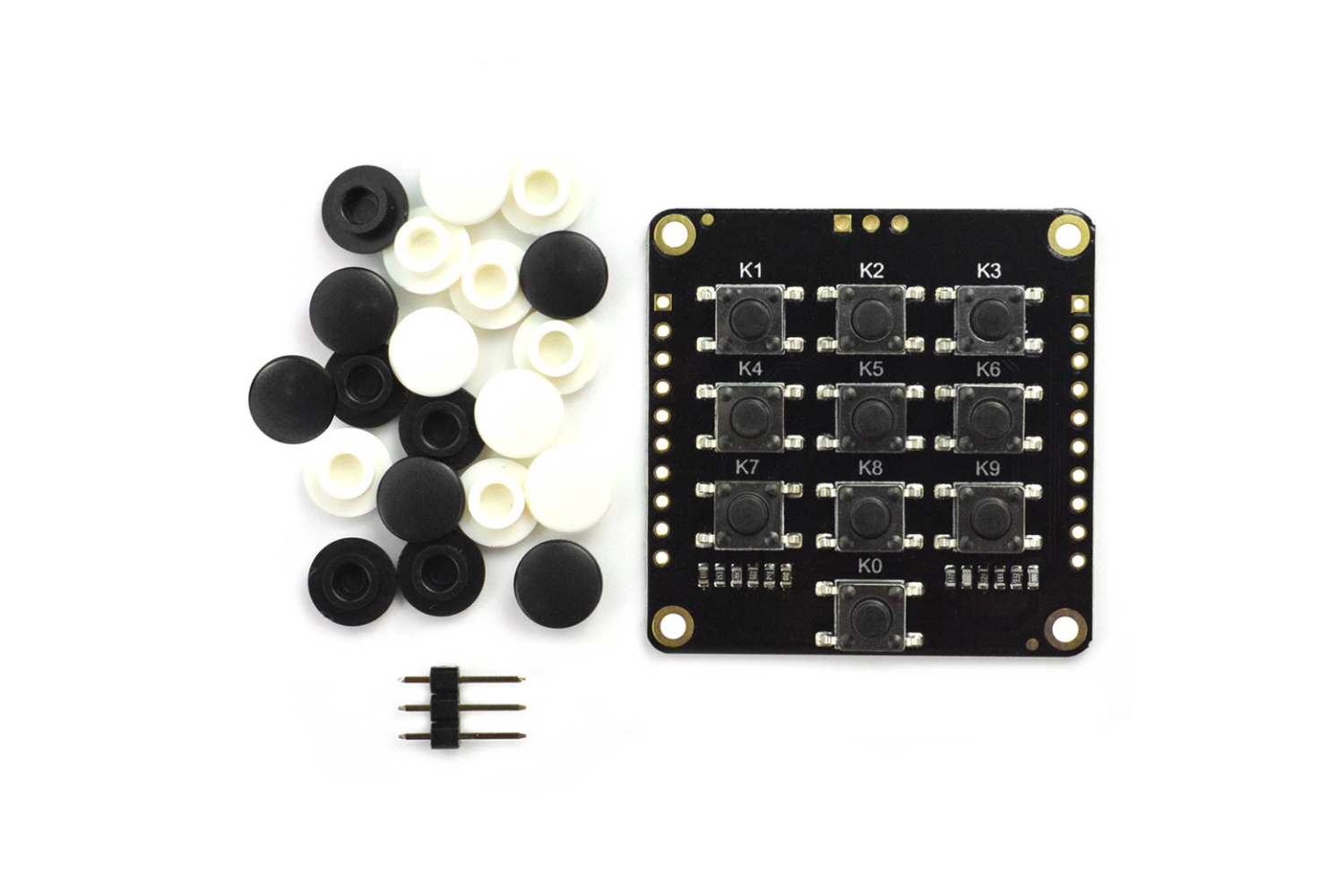

Shipping List

  • ADKey Board-10 Keys x1
  • 2.54-3P Black Single Row Pin Connector x1
