DFRobot

Varenr. SEN0079

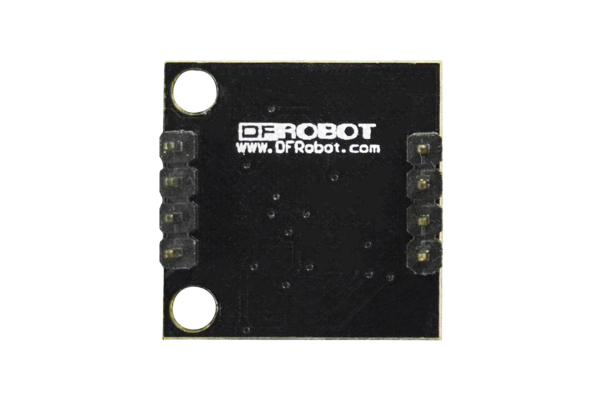

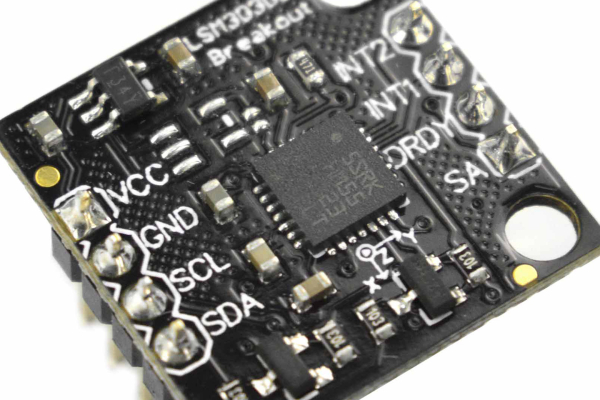

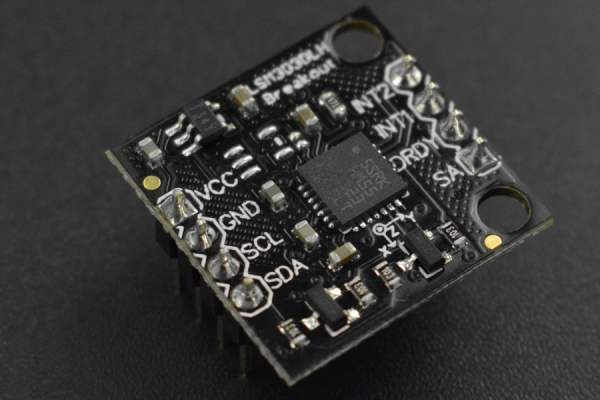

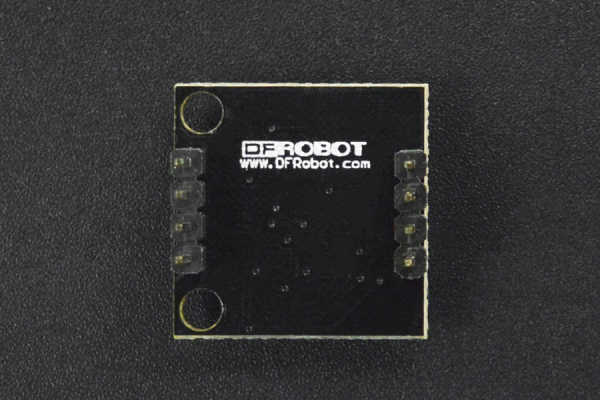

Fermion: LSM303 Tilt Compensated Compass (Breakout)

241,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

241,25 DKK pr. stk. -
217,00 DKK pr. stk.
Spar 10%
194,00 DKK pr. stk.
Spar 20%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

The LSM303DLH is a triple axis accelerometer combined with a triple axis magnetic sensor.
This breakout board uses the LSM303DLH to give you the data you need to feed into a microcontroller and calculate tilt-compensated output.

Specification

  • Power supply: 3.6~8V DC
  • Chip: LSM303DLH
  • ±1.3 to ±8,1 gauss magnetic field full-scale
  • ±2 g/±4 g/±8 g dynamically selectable fullscale
  • 16-bit data out
  • I2C serial interface
  • 2 independent programmable interrupt
  • generators for free-fall and motion detection
  • Embedded self-test
  • Accelerometer sleep-to-wakeup function
  • 6D orientation detection

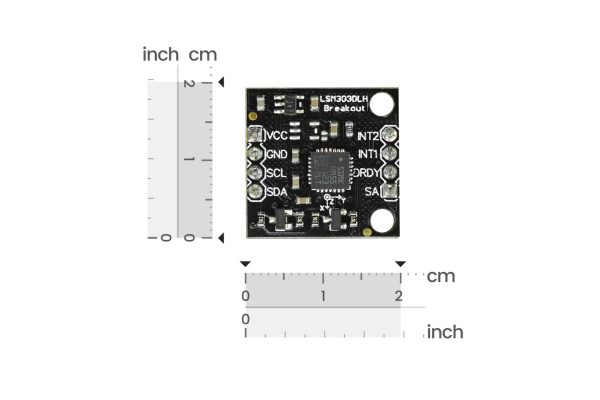

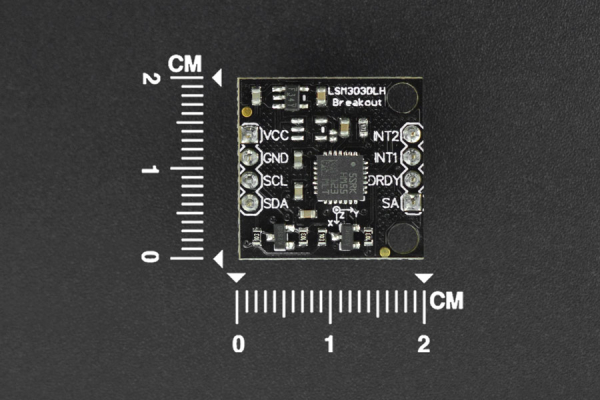

  • Dimensions: 20.5mmx20.5mm(0.8x0.8'')
  • Weight: 1g

Shipping List

  • LSM303 breakout board     x1
