Varenr. SEN0405

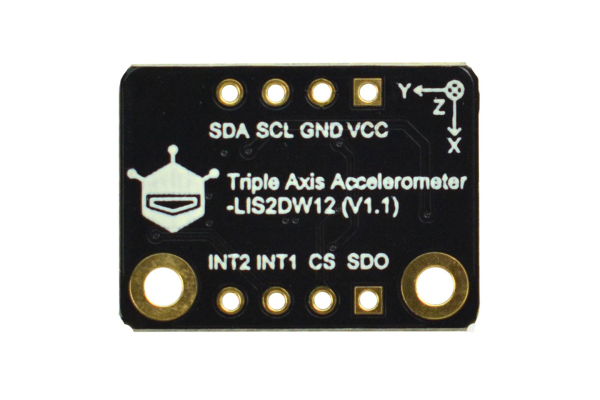

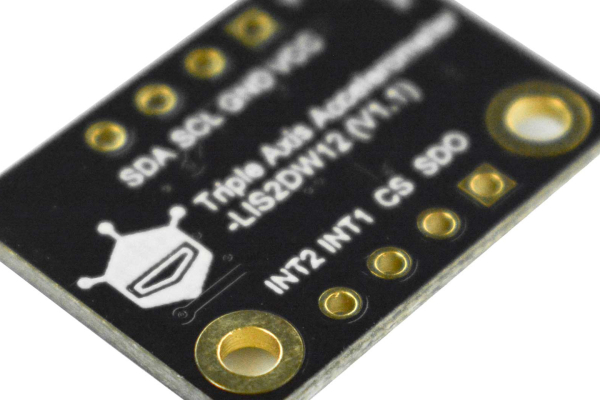

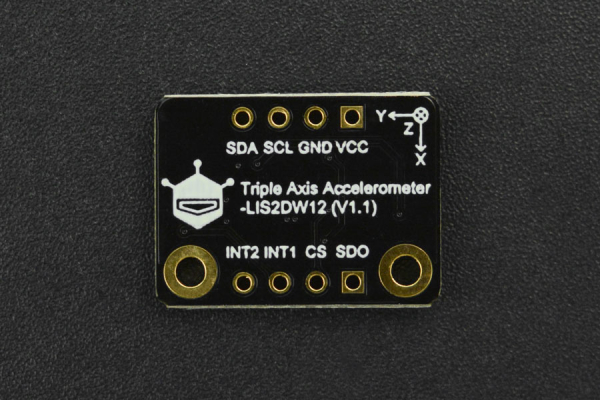

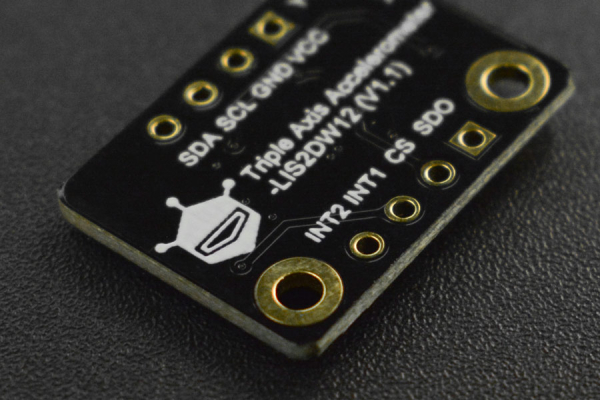

Fermion: LIS2DW12 Triple Axis Accelerometer Sensor (Breakout) (±16g)

65,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

65,00 DKK pr. stk. -
57,00 DKK pr. stk.
Spar 12%
49,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

TUTORIAL

TUTORIAL

  • Triple Axis Accelerometer Sensor Selection Guide
    2021-09-15 11:09:53

Documents

  • Product wiki
  • Introduction

    The LIS2DW12 is a low power high-performance three-axis linear accelerometer, featuring low power(50nA), low noise(1.3mgRMS), 32 FIFO, ±2g/±4g/±8g/±16g full scale, 16-bit data output, and 1.6~1.6KHz bandwidth. The sensor comes with two independent programmable interrupts and a dedicated internal engine that can achieve various motion and acceleration detection including free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wakeup for smart power saving, etc. And for your convenience, we provide you with sample programs(C and Python) for the above functions.

    Fermion: LIS2DW12 Triple Axis Accelerometer Sensor (Breakout)

    Connect Diagram

    Features

  • Selectable scales: ±2g/±4g/±8g/±16g
  • 16-bit data output
  • Two independent programmable interrupts
  • Dedicated internal engine for achieving various functions: free-fall, portrait/landscape detection, 6D/4D orientation detection, configurable single/double-tap recognition, stationary/motion detection, wakeup for smart power saving, etc.
  • Specification

  • Operating Voltage: 3.3V
  • Operating Current: 50nA (low power consumption mode)/0.17mA (high performance mode)
  • Interface: SPI/I2C
  • I2C Address: 0x19(default address)/0x18(optional: pull down the SDO pin to select)
  • Optional Scale: ±2g/±4g/±8g/±16g
  • Operating Temperature: -40℃~+85℃
  • 16-Bit Data Output
  • Frequency: 1.6Hz~1600Hz
  • Ultra-low Noise: 1.3 mg RMS (low power mode)
  • 32-level FIFO (first-in first-out buffer zone)
  • 10000g high shock survivability
  • ECOPACK, RoHS and “Green” compliant

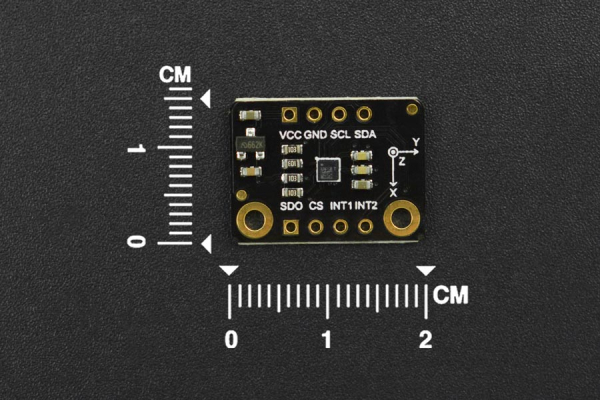

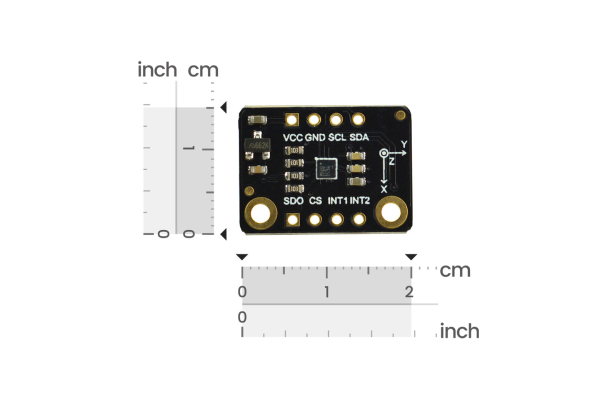

  • Module size: 15 x 20 (mm) / 0.59 x 0.79 (inch)
  • Shipping List

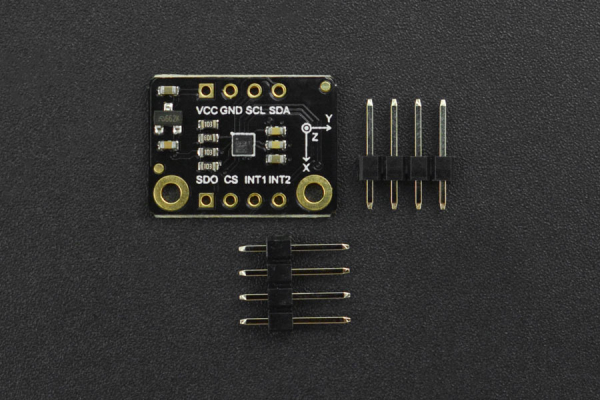

  • Fermion: LIS2DW12 Triple Axis Accelerometer Sensor (Breakout) (±16g) x1
  • 2.54-4P Black Single Pin Header x2
