Product Wiki Introduction

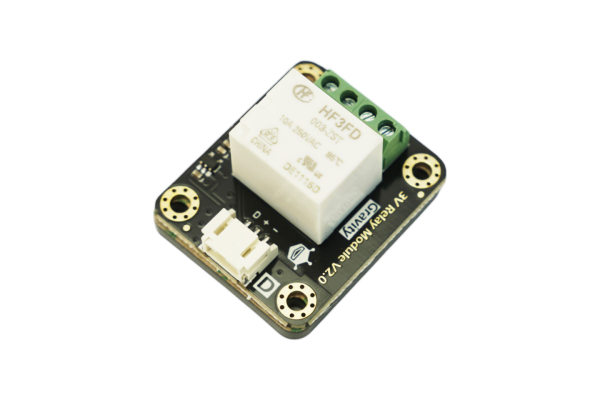

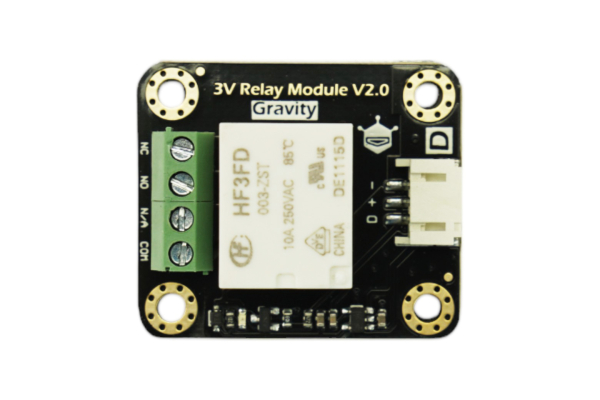

Introducing the Gravity Digital Relay Module – the latest addition to DFRobot’s
Gravity series! This module is a little different to the other relays in our store - not only is it compatible with 5V
Arduino boards, but also with
Raspberry Pi, BBB (BeagleBoard Black), mbed, Intel Joule, Arduino 101 and other 3.3V devices.
It is specially designed for low-voltage devices and works well under 3.3V power supplies, just like the Raspberry Pi relay board. In addition, the module has a wide range of power inputs. In our tests, once it reaches 2.8~5.5V, it can also support 1.8V devices.

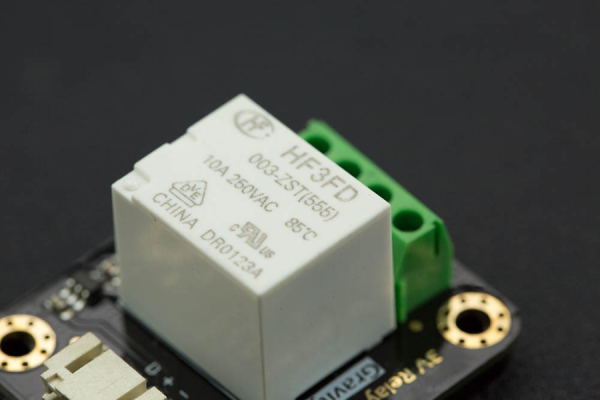

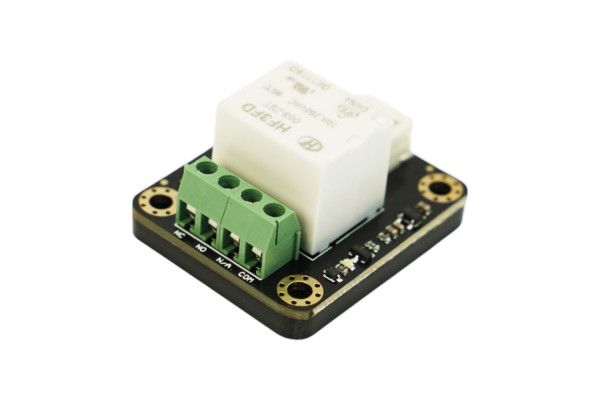

DFRobot’s Digital Relay Module uses a high quality 3V relay. It can handle up to 10A current and mechanical parts are guaranteed up to 100 million uses. An on-board indicator LED demonstrates the relay’s state. Terminals include normally open (NO) and normally closed (NC). The module uses a Gravity-3 pin interface, which requires no soldering for convenient plug and play usage.
Features
Supports Arduino, Raspberry Pi, LattePanda etc.
2.8 ~ 5.5V – A wide-range of input voltages

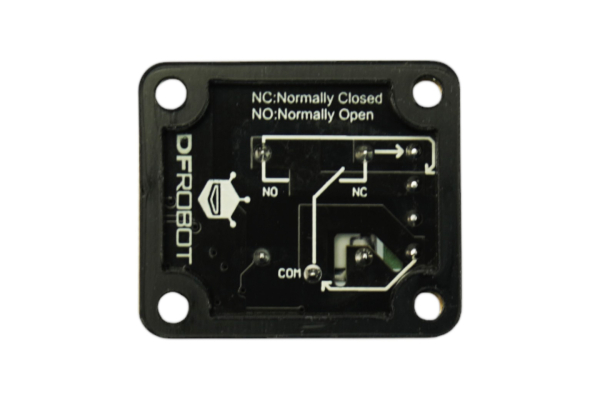

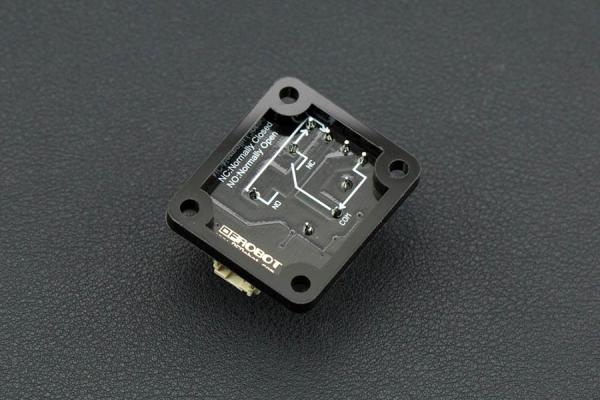

The underside of board is isolated using an acrylic plate for safety
Includes an LED Indicator
Uses a gravity-3 Pin interface for easy, plug and play usage
Specification
Operating Voltage: 2.8V ~ 5.5V
Input Signal: High Level (≥2.8V); Low Level (≤0.5V)
Max Switching Current: 10A
Max Switching Voltage: 35VAC; 30VDC
Rating Load: 10A@35VAC; 10A@28VDC
Max Switching Power: 300W
Operate Time: ≤10ms
Release Time: ≤5ms

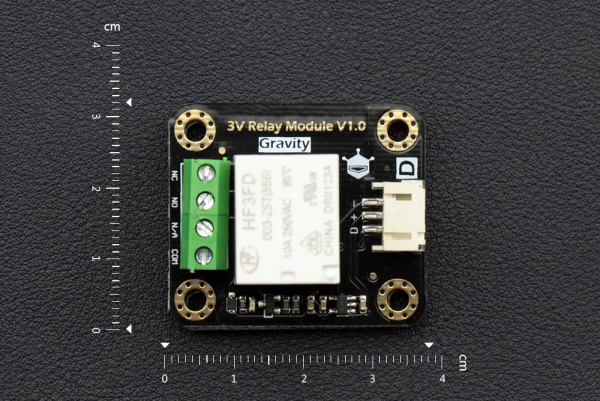

Dimensions: 38 x 33 x 20 mm /1.5 x 1.3 x 0.81”
Mechanical Life: 1 million uses
Electrical Life: 50 thousand uses
Weight: 20g

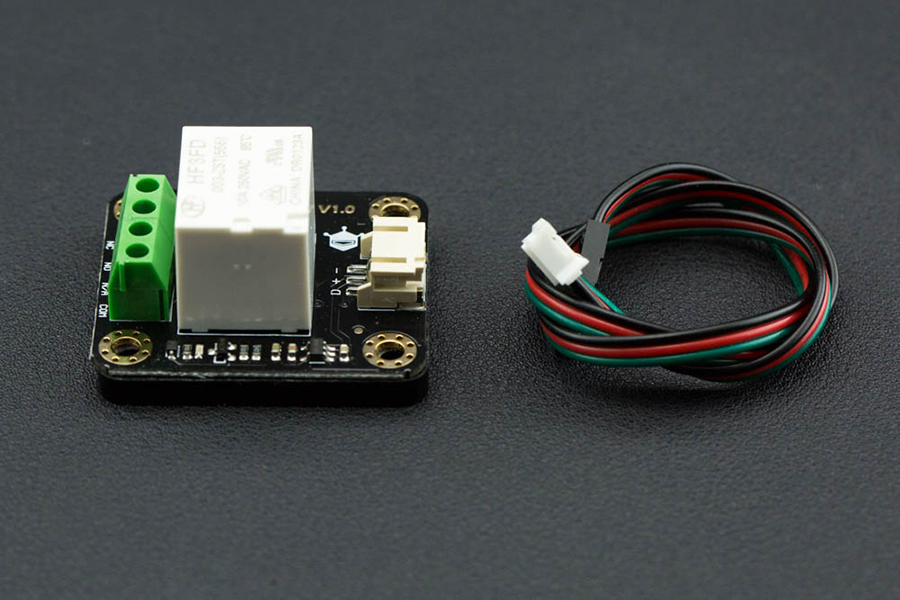

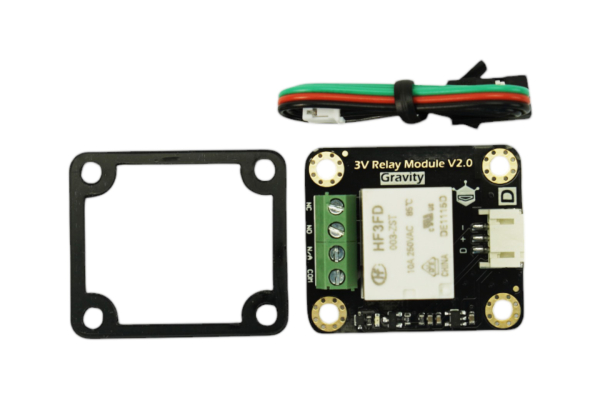

Shipping List
Gravity: Digital Relay Module (with Acrylic Base) x 1
Gravity Digital Sensor Cable x 1
