Varenr. SEN0514

Gravity: ENS160 Air Quality Sensor

301,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

301,25 DKK pr. stk. -
274,00 DKK pr. stk.
Spar 9%
248,00 DKK pr. stk.
Spar 18%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Schematics
  • Dimension
  • ENS160 Manual
  • Introduction

    This Gravity: ENS160 Air Quality Sensor, based on ScioSense's new ENS160 sensor chip, is specifically designed for indoor air quality monitoring and offers detection of multiple IAQ data (TVOC, eCO2, AQI).

    The innovative TrueVOC™ technology combines the metal oxide (MOX) technology that brings this sensor superior accuracy, fast response, anti-interference, etc. With intelligent on-chip algorithms, the ENS160 can directly output rich and easy-to-understand environmental data. Preheat the sensor 3 minutes before use then you can obtain accurate data more quickly. What's more, the built-in automatic baseline correction algorithm ensures the long-term stability of the sensor.

    Gravity: ENS160 Air Quality Sensor

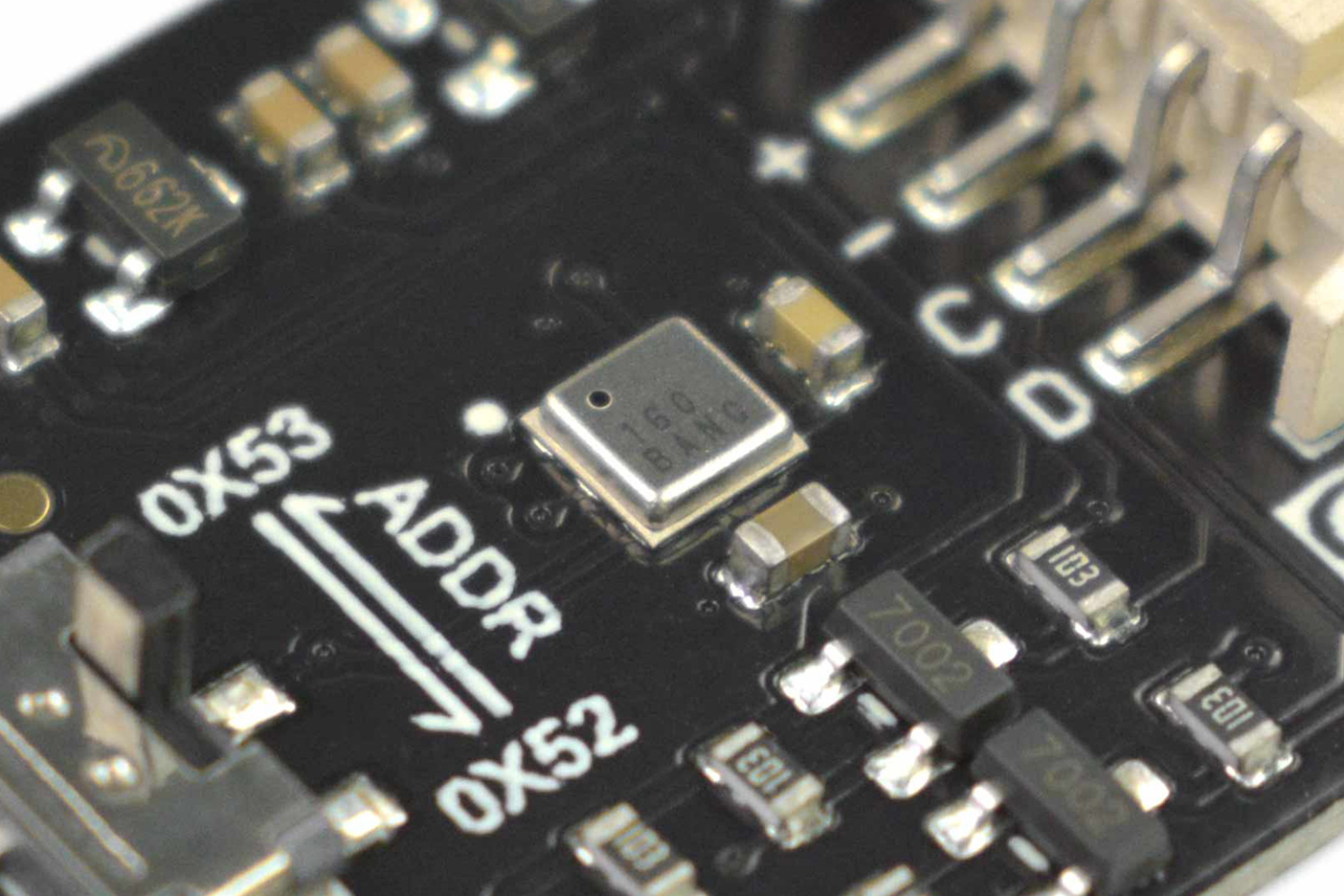

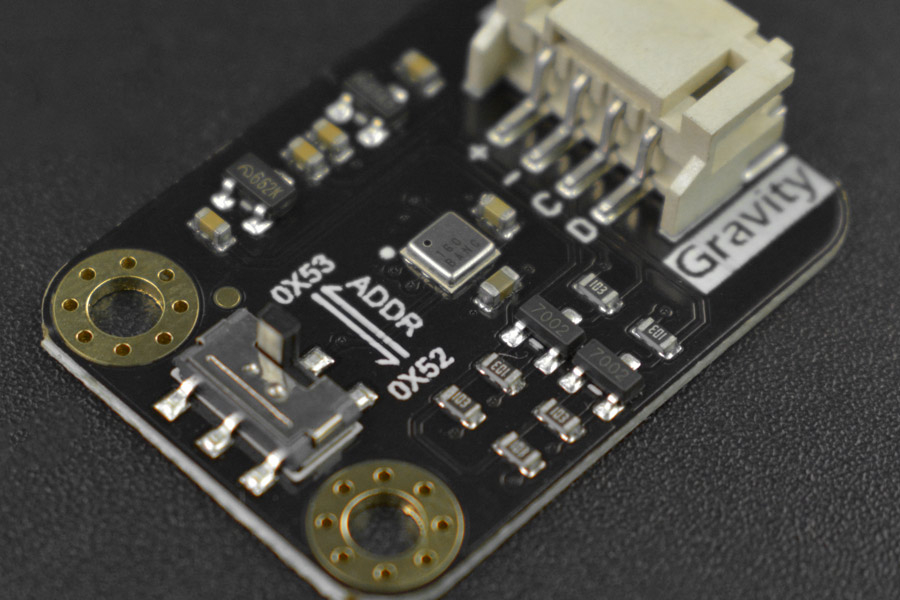

    Board Overview


    Gravity: ENS160 Air Quality Sensor

    Connection Diagram

    Features

  • Multiple IAQ outputs (TVOC, eCO2, AQI), various environmental data
  • Less than 3 minutes warm-up time, get data faster
  • Built-in algorithm, more accurate output
  • Automatic baseline correction, more stable for long-term use
  • Specification

  • Power Supply Voltage: 3.3 V~5.5 V
  • Working Current: 29 mA
  • Interface Mode: I2C
  • I2C Address: 0x52, 0x53
  • Operating Temperature Range: -40℃~85℃
  • Working Humidity Range: 5 %RH~95 %RH
  • eCO2 Measurement Range: 400 ppm~65000ppm
  • TVOC Measuring Range: 0ppb~65000ppb

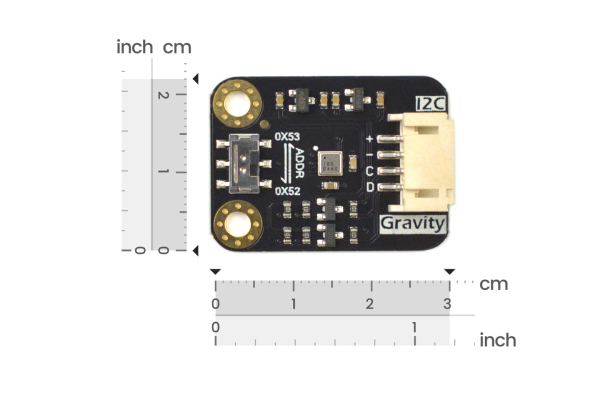

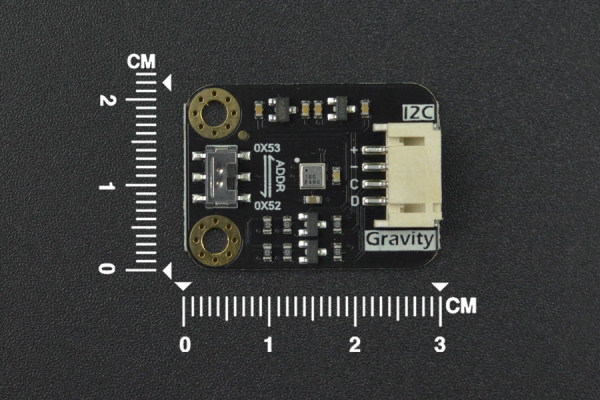

  • Product Size: 30x22 mm/1.18x0.87 inch
  • Shipping List

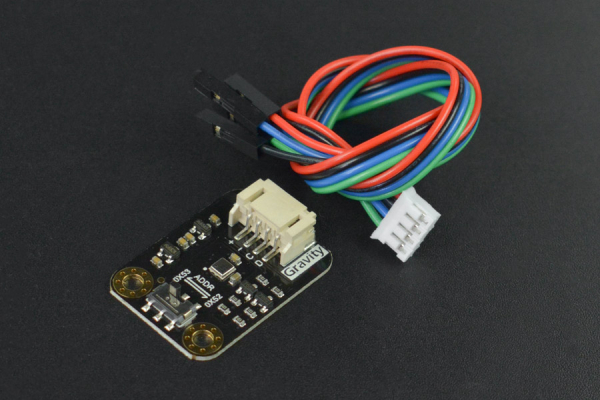

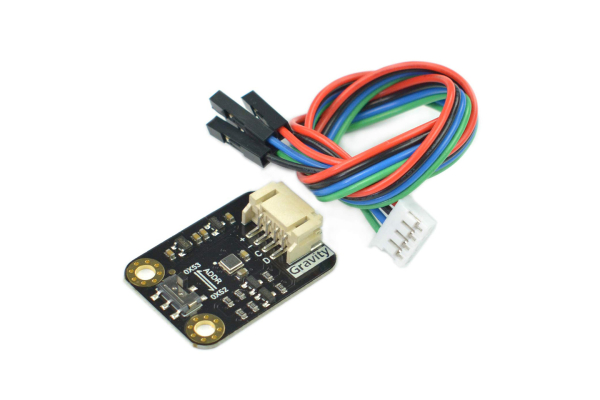

  • Gravity: ENS160 Air Quality Sensor x1
  • Gravity-4P I2C/UART Sensor Connector x1
