DFRobot

Varenr. DFR0785

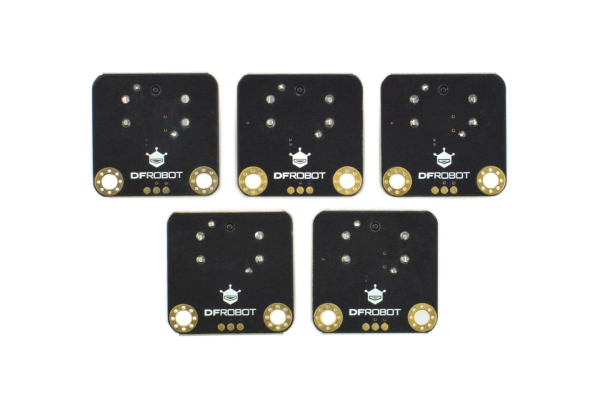

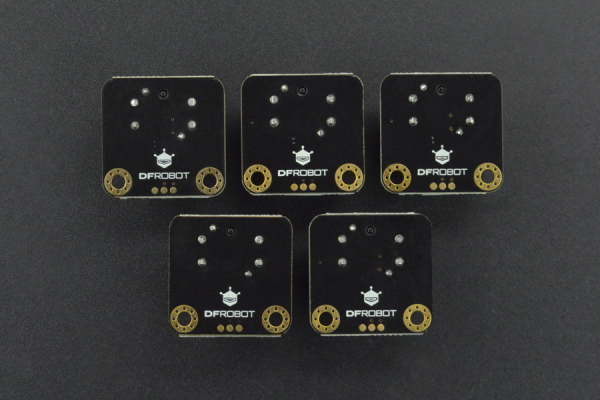

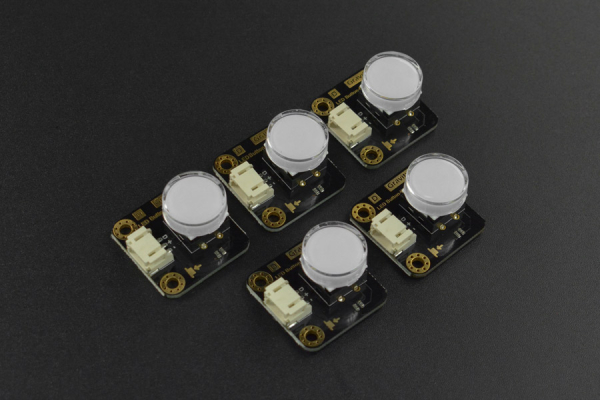

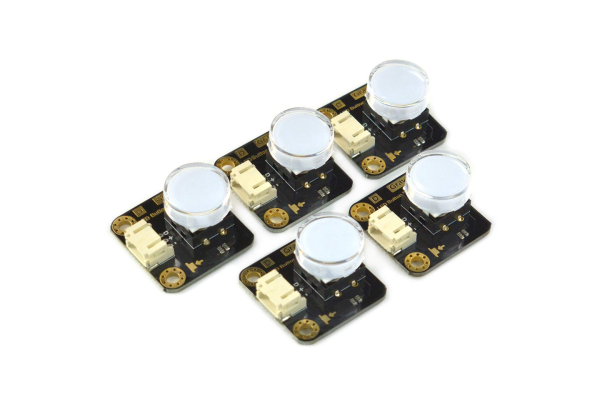

Gravity: LED Button x 5 Pack

335,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

335,00 DKK pr. stk. -
308,00 DKK pr. stk.
Spar 8%
280,00 DKK pr. stk.
Spar 16%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    This is a simple LED-illuminated switch button. It’s just like a common switch button but lights up different colors(red/yellow/green/blue/white) when pressed down, which gives us visual feedback. These little buttons can be used with controllers like micro:bit, Arduino, etc., to realize various fun interactive projects.

    Gravity: LED Button Kit

    This is a digital button switch with an LED light display.



    Experimental Cases

    Supports programming platforms like MakeCode, Mind+ and Arduino IDE.

    Gravity: LED Button Kit

    1.Mind+ Program Example

    Gravity: LED Button Kit


    Program Effect

    Gravity: LED Button Kit

    Mind+ official download - Mind+ graphical programming software (mindplus.cc)For more fun, welcome to the Mind+ special column.


    2.MakeCode Program Example

    Gravity: LED Button Kit


    Program Effect

    Gravity: LED Button Kit


    3.Arduino Program Example

    Gravity: LED Button Kit


    Program Effect

    Gravity: LED Button Kit

    Features

  • 1. 5 lighting colors of red, green, white, yellow, and blue are optional.
  • Gravity: LED Button Kit

    There are 5 available colors to choose from: red, green, white, yellow, and blue

  • 2.Convenient and easy-to-use Gravity interface.
  • Gravity: LED Button Kit

    Gravity interface, convenient and easy to use

  • 3.Large button for easy control.
  • Gravity: LED Button Kit

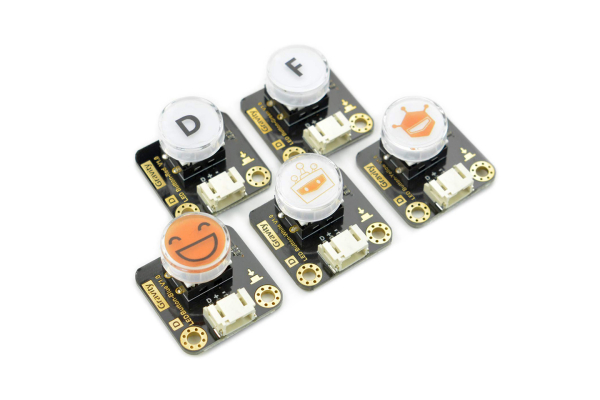

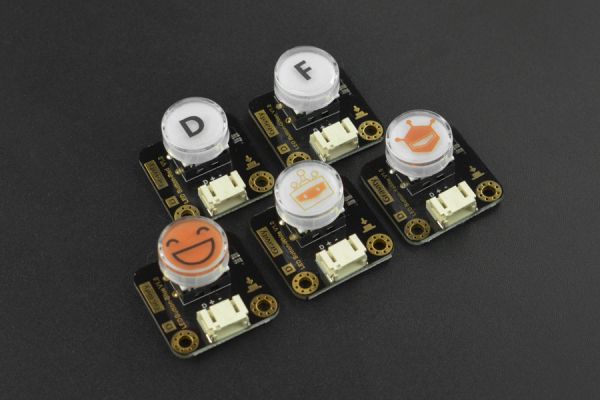

  • 4.Various types of stickers are provided.
  • Gravity: LED Button Kit

    Gravity: LED Button Kit

    Specification

  • Working Voltage: +3.3-5V (3.3V is recommended)
  • Output: Digital signal
  • Interface: PH2.0-3P
  • Size: 27×26.5mm
  • LED Light Color: red, yellow, green, blue, white
  • Note: When pressed down, the module outputs High, and the LED lights up. When released, the module outputs Low and the LED turns off.

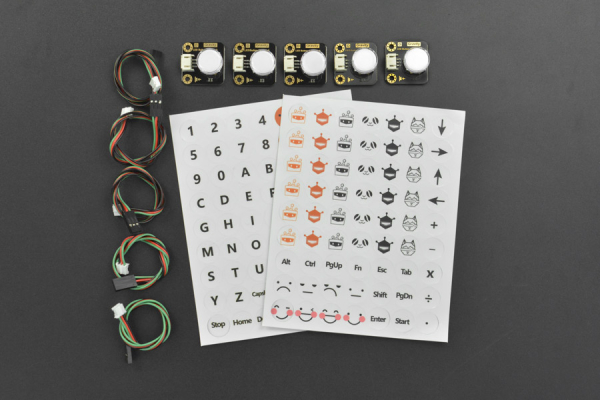

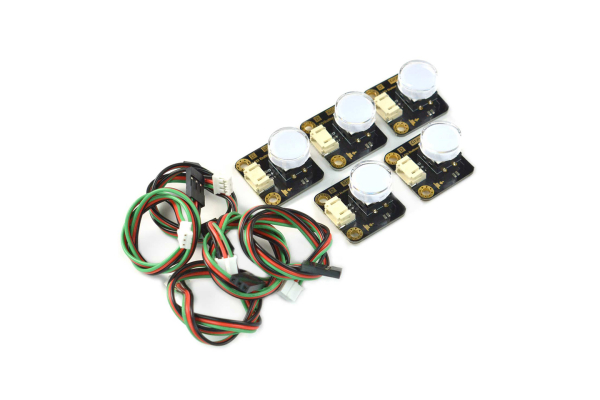

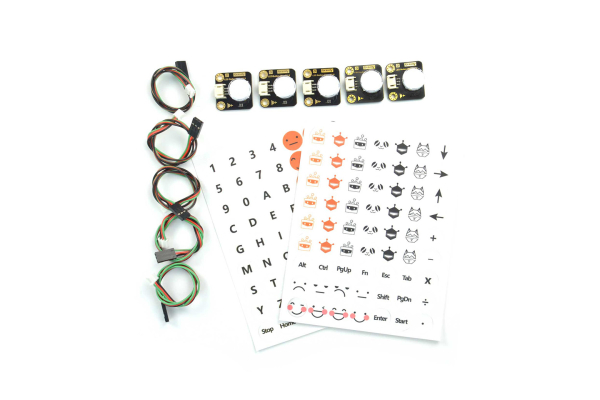

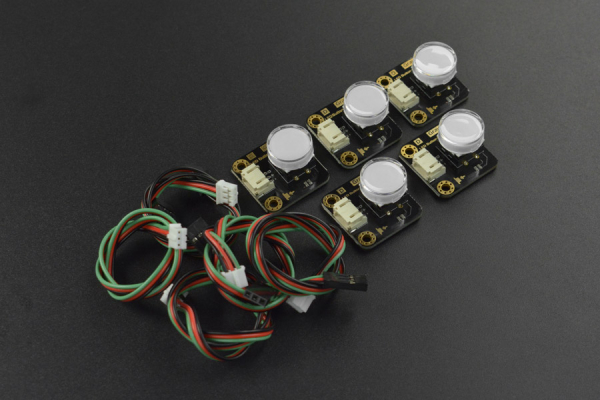

    Shipping List

  • Gravity: Digital Button Switch with LED x5 (red/ yellow / green/ blue/ white)
  • Digital Sensor Connector  x5
  • Sticker x2
