DFRobot

Varenr. DFR0789-Y

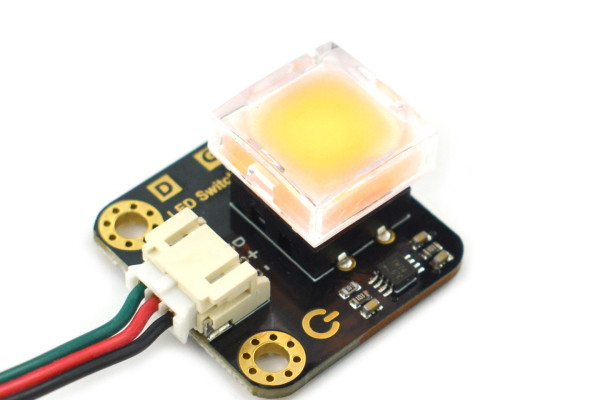

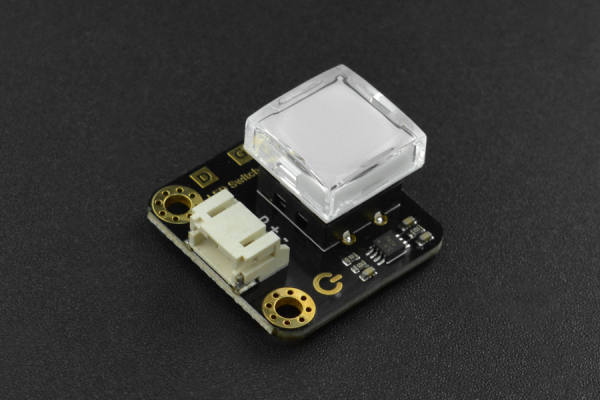

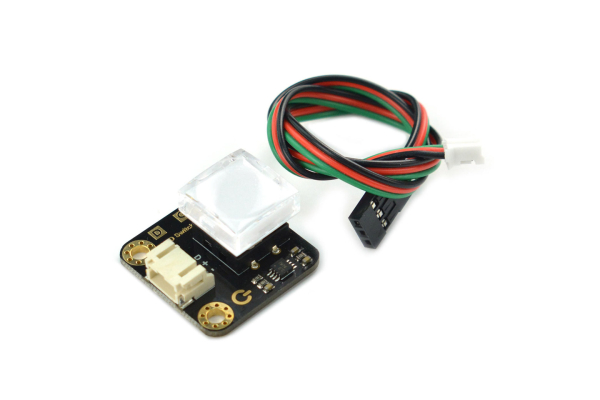

Gravity: LED Switch - Yellow

75,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

75,00 DKK pr. stk. -
65,00 DKK pr. stk.
Spar 13%
56,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

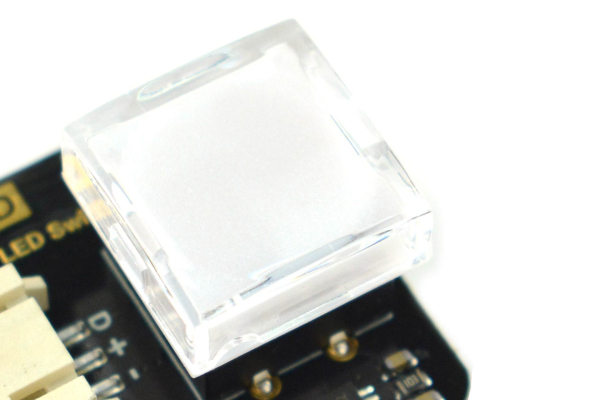

    This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects, such as, switch, backlight keyboard, music player panel, and recording control panel.

    Note: The module comes with self-lock function. When the button is pressed down, the module outputs High, and the LED lights up. When being pressed again, the module outputs Low and the LED turns off.

    Gravity: LED Switch

    Connection Diagram

    Features

  • Internal LED turns On when the button is pressed down
  • Specification

  • Operating Voltage: +3.3-5V (3.3V is recommended)
  • Output: digital
  • Connector: PH2.0-3P

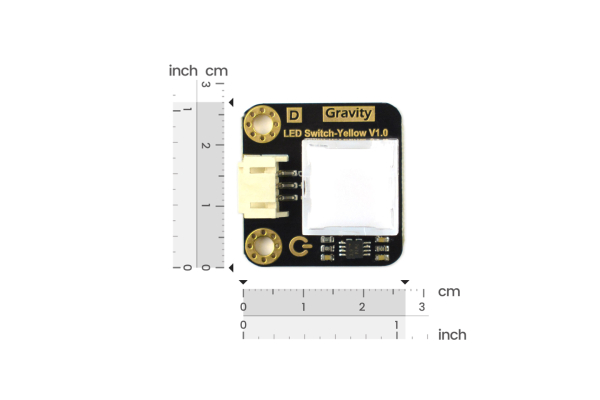

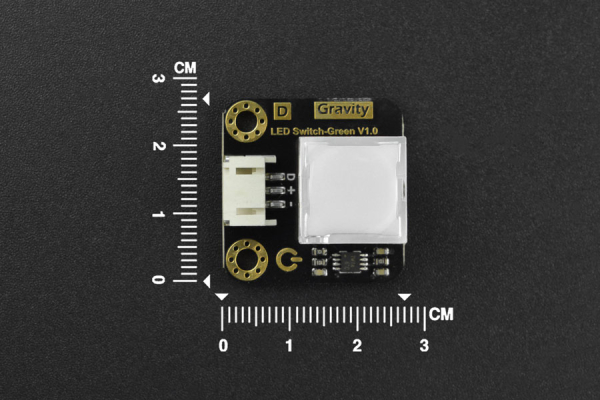

  • Dimension: 27×26.5mm
  • Colors Available: red, yellow, green, blue, white
  • Shipping List

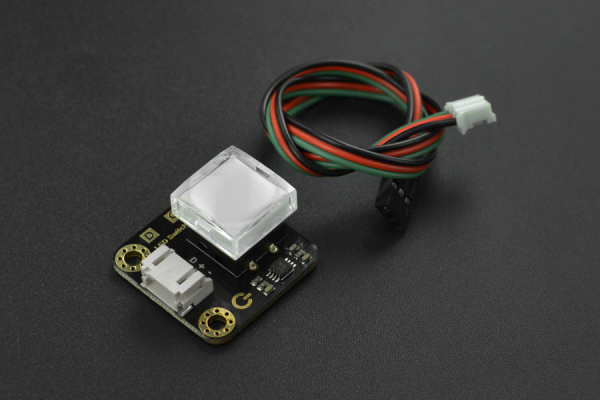

  • Gravity: LED Switch x1
  • Digital Sensor Connector x1
