Varenr. SEN0327

I2S Microphone Module


På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

58,75 DKK pr. stk. -
51,00 DKK pr. stk.
Spar 13%
44,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .


Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.


  • Documents
  • Introduction

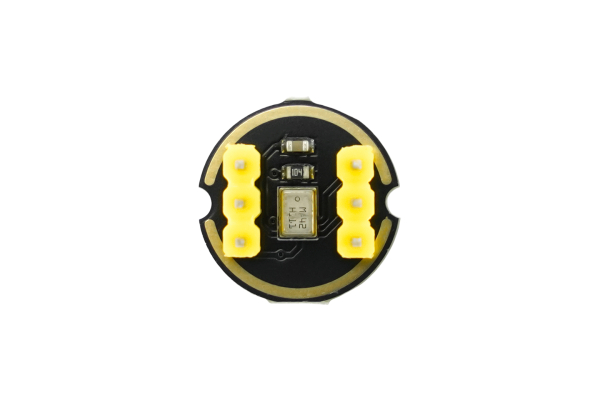

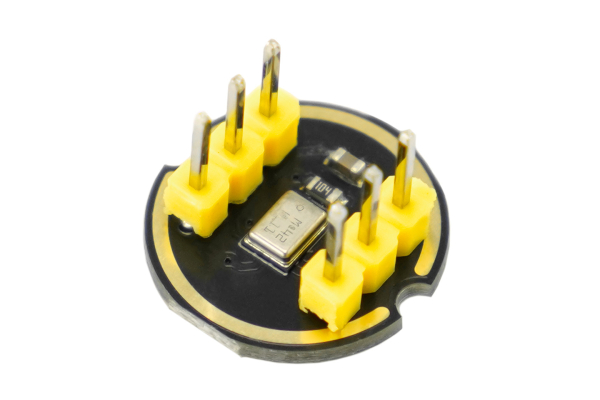

    This high sensitivity single microphone module features MSM261S4030H0 digital silicon chip, I2S output, onboard SK9822 series RGB LED, two-wire control color.

    MSM26S4030H0 is omnidirectional, bottom ported, I2S digital output MEMS microphone chip. I2S is a general-purpose digital audio interface and widely used in DSP and digital audio processing fields. In a conventional audio system, audio signal collected by the microphone will be converted into analog voltage and output, and then processed by the main controller chip after being changed into digital signal and encoded through the ADC of codec. However, the product of MSM261S4030H0 series has built-in 24bit I2S audio port, so without adding extra Codec, it is able to realize full digital signal connections with DSP or MCU. The raw digital audio signal is directly output to the main controller chip. As a result, the complexity of designing signal chains will be greatly reduced, which allows the product to hold advantages in size, cost, power consumption, and anti-interference.

    Nowadays, personal portable electronic products have been gradually becoming dominant in the consumer market. This kind of silicon-made microphone learns the advantages of semiconductor technology and combines high repeatability of production, excellent sound performance, and great expansibility. Therefore, it can be said with confidence that in the near future, the traditional ECM(electret condenser microphone) will be replaced by the low cost and high-performance MEMS.

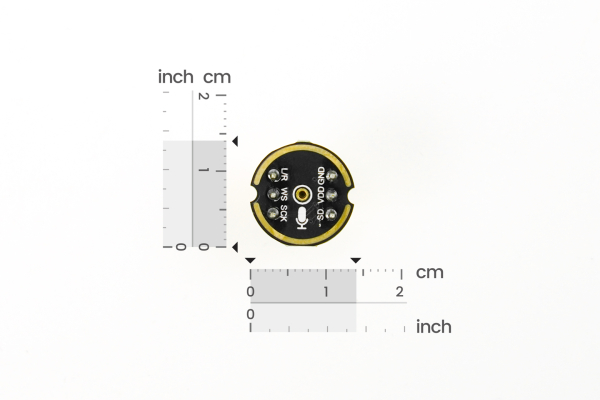

    • Dimension: 15.2×9.1mm/0.60×0.36”
    • Input Voltage: 3.3V±0.2V(DC)
    • Input Current: >1mA
    • Sound Level Pressure: 140 dB SPL
    • Sensitivity: -26(dB, dBFS@1kHz 1Pa)
    • S/N Ratio: 57dB(20kHz bandwidth, A-weighted)
    • Operating Temperature: -30℃~85℃
    • Output: digital I2S output
    • Connector: 16P 2.54mm Dupont Wire

    Shipping List

  • Microphone Module x1
