DFRobot

Varenr. FIT0389

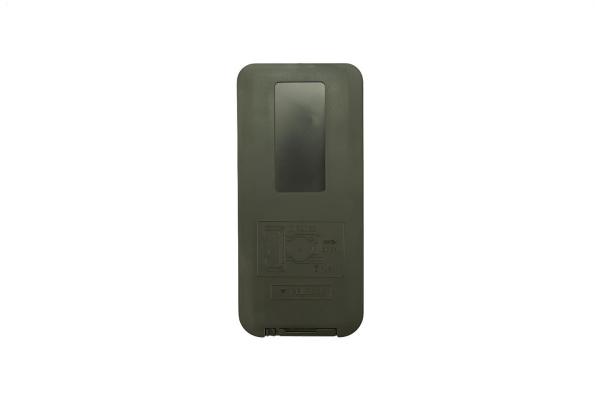

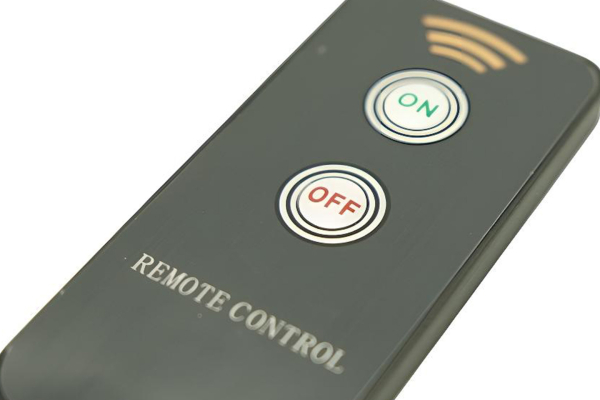

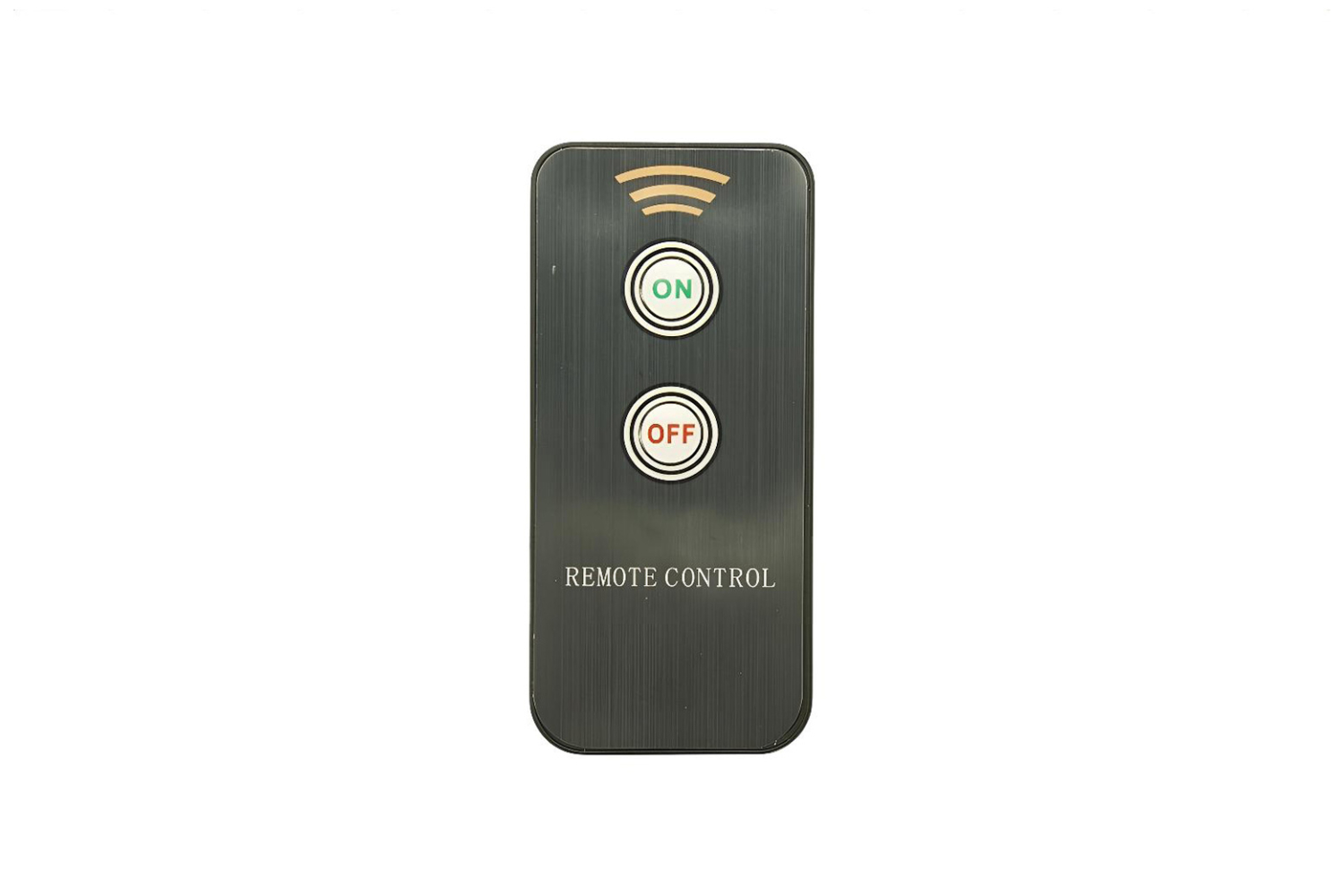

IR Remote Controller (2-Key)

26,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

26,25 DKK pr. stk. -
21,90 DKK pr. stk.
Spar 17%
18,60 DKK pr. stk.
Spar 29%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

Ever wanted a simple way of activating your robot from across the room? We designed this remote controller to be as simple, small, and affordable so that for the majority of the projects you've built, you will no longer need to move constantly to swtich it on/off.

Our infrared remote control offers two buttons - the simplist and most straightforward "ON"and "OFF" interaction. With a little programming you can also alter these two keys for commands like "move forward/backward" or "missle unlock/missle launch" combinations, you name it.

Note: The remote control comes with a CR2025 coin cell battery.

Specification

  • Encoded Format: NEC, Address is 0x00FF
  • Assign Buttons: ON(0x02) and OFF(0x98)
  • Battery Type: CR2025 coin cell
  • Frequency: 38Khz
  • Transmitting Range: >8m
  • Transmitting Angle: 60°
  • Facial materials: 0.125mm PET
  • Current: 3-5uA( Quiescent)/3-5mA(Dynamic)
  • Dimensions: 86x40x6mm(3.39x1.57x0.24")

Shipping List

  • IR Remote Controller (2-Key) x1 (include battery)
