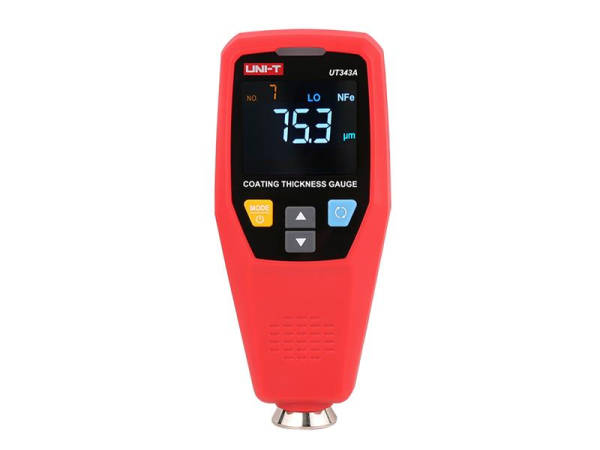

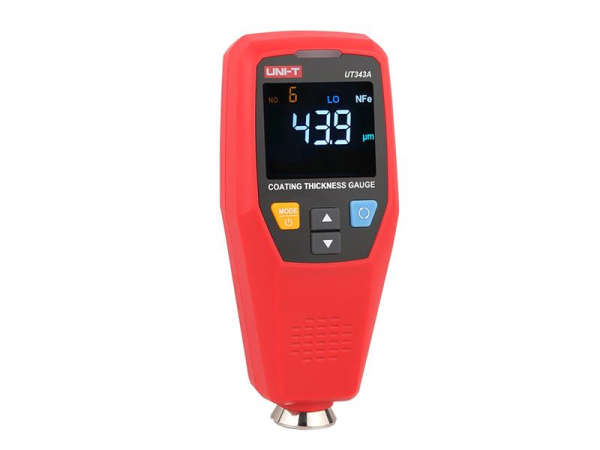

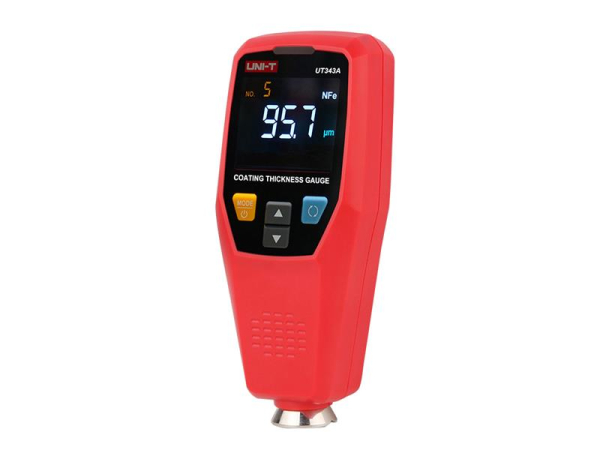

Coating Thickness Tester UNI-T UT343A

The UT343A is a high-precision paint thickness gauge that can measure paint thickness on ferrous (ferromagnetic) and non-ferrous (paramagnetic and diamagnetic) metals.

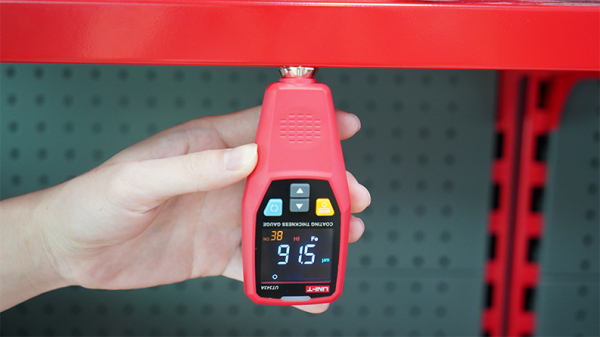

Electrically non-conductive or conductive varnishes on ferromagnetic metals, such as iron or steel (for example: galvanized sheet steel), can be measured by electromagnetic induction (instrument setting symbol is Fe), which measures the thickness of the varnish according to the amount of magnetic flux flowing from the sensor through non-ferrous magnetic varnish for ferromagnetic substrate.
You can measure the thickness of electrically non-conductive paints on non-magnetic metallic materials such as aluminum or copper using the eddy current measurement method (NFe setting symbol). The principle is to measure the differences of eddy el. currents generated by the instrument in a non-magnetic metal substrate.

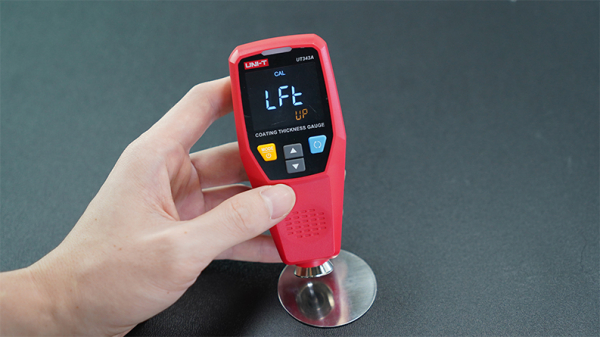

This device is characterized by high accuracy, non-destructive measurement of paint thickness and the function of single-point and multi-point averaging algorithm and fast measurement. Automatic detection of the substrate type, high measuring range of thickness 0 to 1850 μm, automatic conversion of units μm to mil. Possibility of storing up to 199 measurement groups in memory. Simple multipoint calibration on the enclosed calibrated samples.

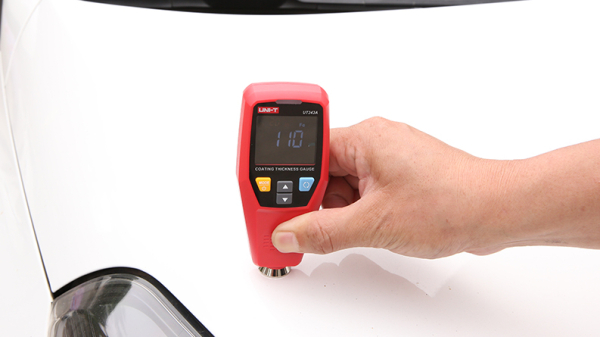

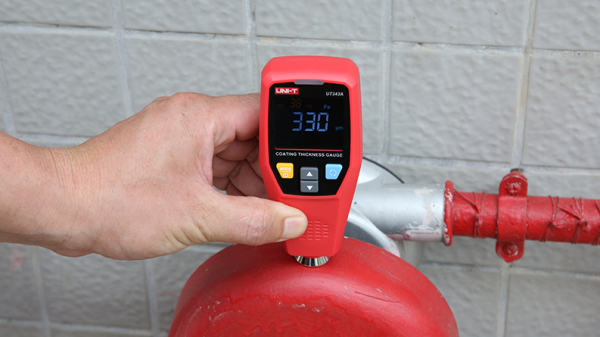

Wide use in metal production and processing, aviation, marine mechanics, rail transport, scientific research, quality control and defectoscopy in the automotive industry and other industries in laboratories, workshops and outdoor areas.


Product parameters :

- paint thickness measuring range:

0 to 1750 μm
- measurement accuracy:


± (3% of measured value + 1μm)
- resolution:



0.1 μm
- working modes:



automatic substrate detection, Fe, NFe
- type of measurement:


single or continuous
- statistical measurement:


MAX / MIN / average value
- data rotation on the screen:


automatic, manual
- setting of limits:



yes, in the range of values ​​0 to 1750 μm, including indication of exceeding the limits
- built-in memory:



yes, for 199 measurement groups
- switchable buzzer:



yes


Technical parameters :

- measurement refresh rate:


0.5 seconds

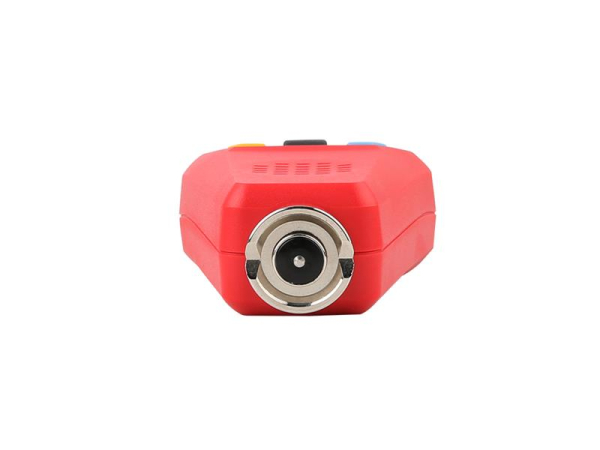

- sensor type:



composite sensor for electromagnetic induction and eddy el. currents
- paint thickness measuring range:

0 to 1750 μm
- measurement accuracy:


± (3% of measured value + 1μm)
- resolution:



0.1 μm
- force of pressing the probe against the surface:
0.3 to 1.5N
- display type:



EBTN display with data rotation
- automatic shutdown:


yes, after 5 minutes of inactivity
- impact resistance:



the device withstands a fall of 1 meter
- power supply:



AAA alkaline batteries (2 pieces)
- standby power consumption:


≤ 5uA
- current consumption at work:

≤80mA
- low battery warning:


yes, at 2.3V ± 0.2V, the battery symbol will start flashing
- working environment:


0 ° C to 40 ° C, ≤80% relative humidity
- storage environment:


-20 ° C to 60 ° C, ≤80% relative humidity
- dimensions:



117 x 53 x 37mm
- weight:




about 111g (including batteries)
- certification:



CE, UKCA

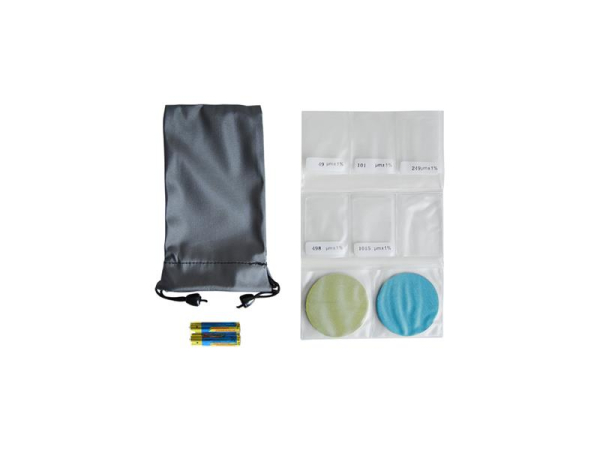

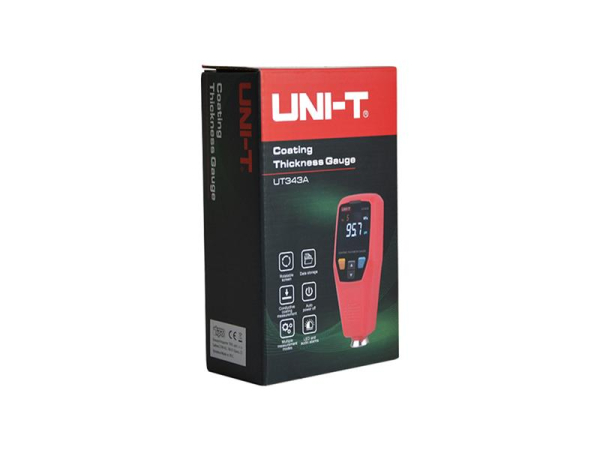

Contents of each package :

- UT343A device:



1 pc
- sensor cover:



1 pc
- standard sheets with calibrated paint thicknesses:
1 set (5 pcs)
- iron base for calibration:


1 pc
- non-ferrous substrate for calibration:

1 pc
- AAA alkaline battery:


2 pcs
- operating instructions:


1 pc
