Varenr. SEN0343

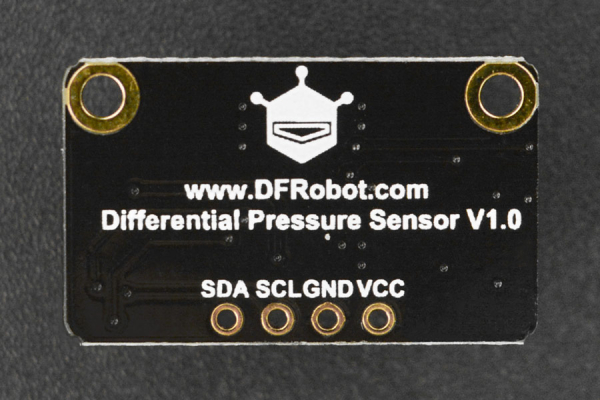

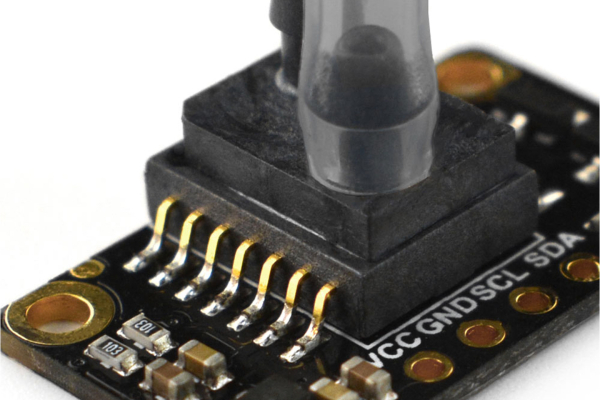

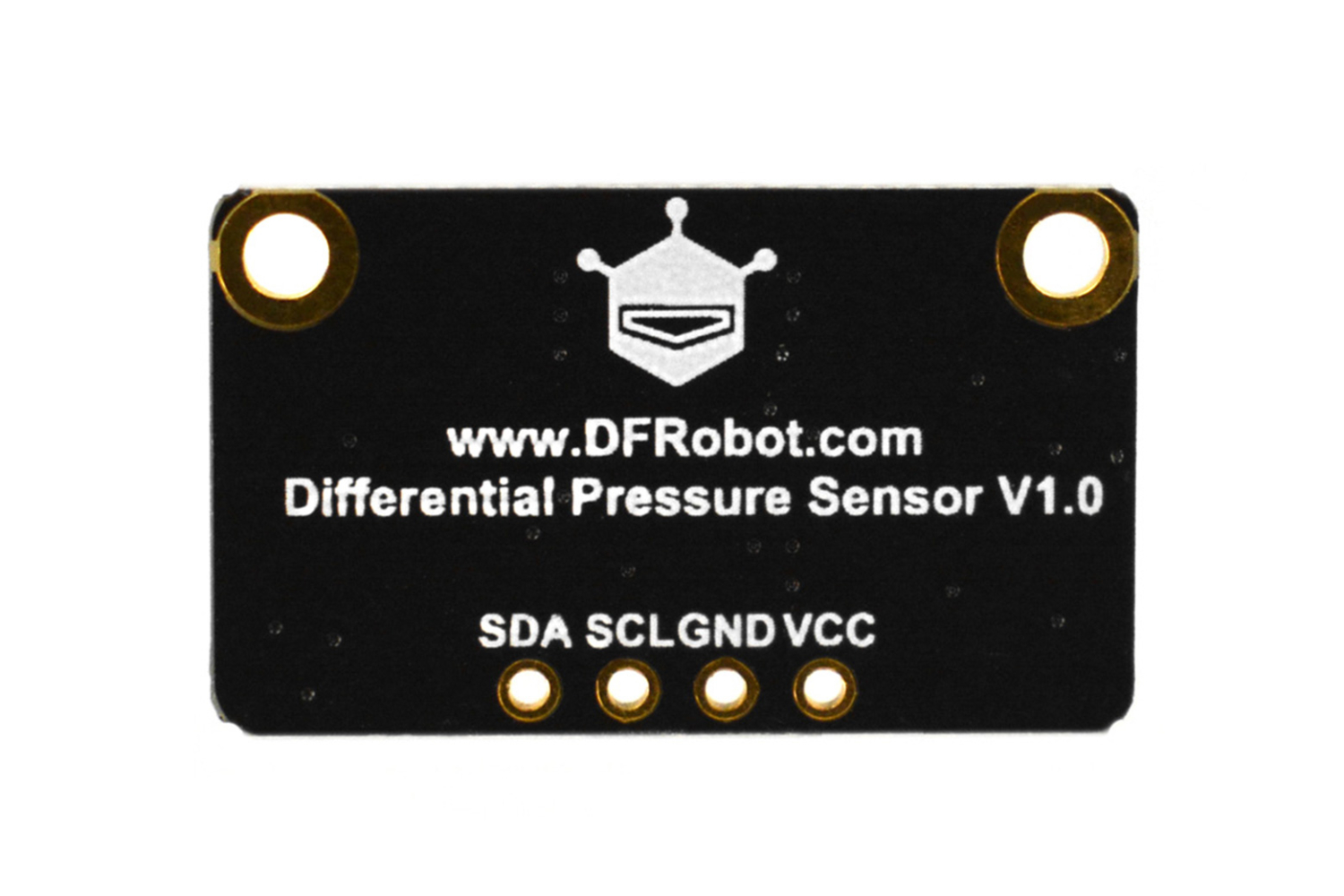

Fermion: LWLP5000 Differential Pressure Sensor -±500pa (Breakout)

532,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

532,50 DKK pr. stk. -
514,00 DKK pr. stk.
Spar 3%
496,00 DKK pr. stk.
Spar 7%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    This high-resolution differential pressure breakout board with I2C communication is used to measure the difference in pressure across two points on a device. A high-performance MEMS pressure chip and a special conditioning chip are encapsulated inside the sensor. It will give you a comparative measurement between two points. Besides, the sensor IC adopts a unique multi-stage temperature-compensation algorithm to reduce the effect of the environment on the sensor output.

    Note: In order to ensure the measurement resolution and the sensor life, please use the sensor in the clean air. Do not let water enter the nozzle of the sensor, or it will cause damage to the sensor.

    Here is a review for this differential pressure sensor, click here to read more.

    Features

    • Multi-stage temperature-compensation algorithm
    • I2C digital output
    • High resolution

    Specification

    • Operating Voltage: 3.3V~5V
    • Measuring Range: ±500pa(±1.5%FS)
    • Operating Current: <5mA
    • Communication Mode: I2C
    • I2C Address: 0x00
    • Operating Temperature Range: -40℃~85℃
    • Temperature-compensation Range: -5℃~65℃

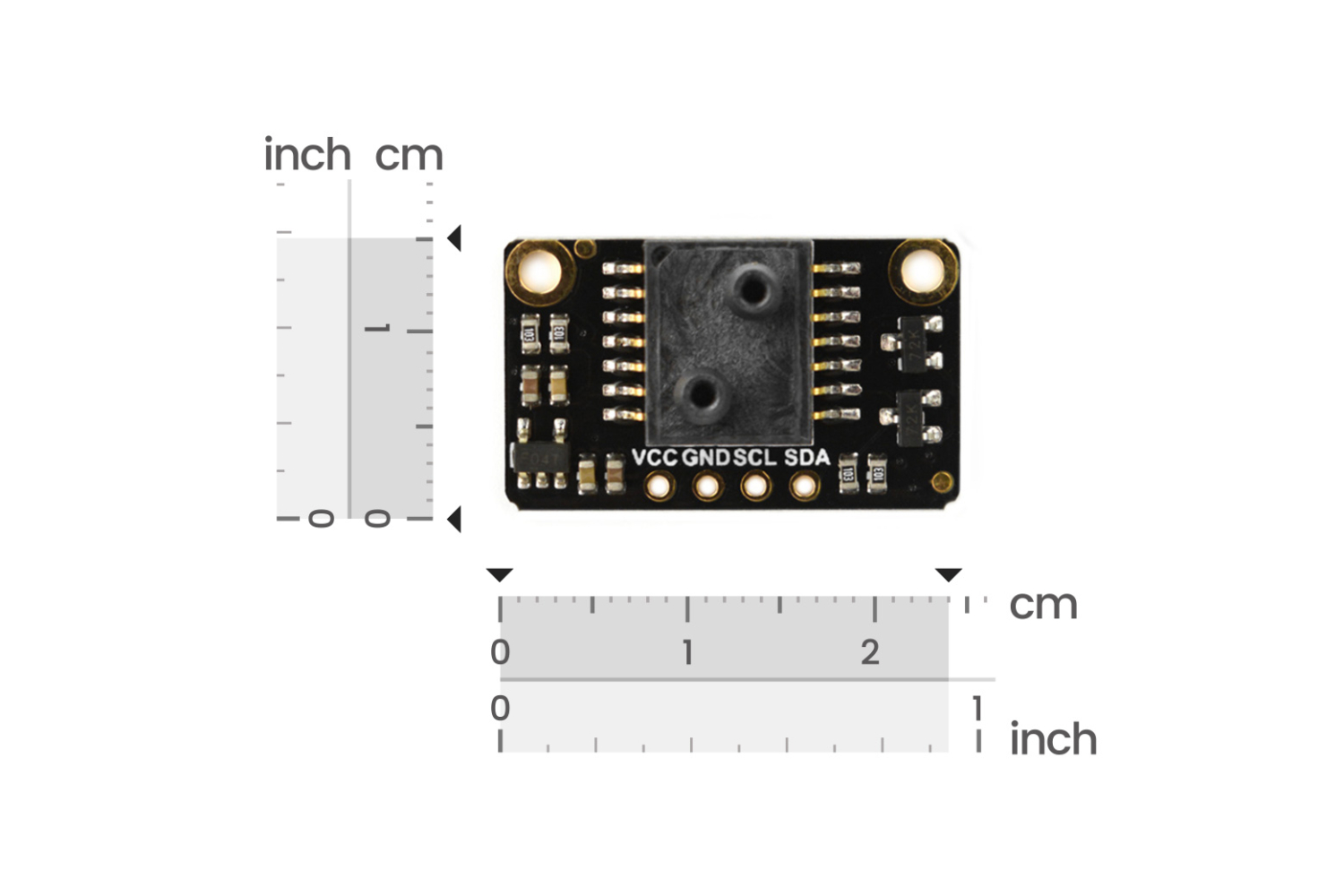

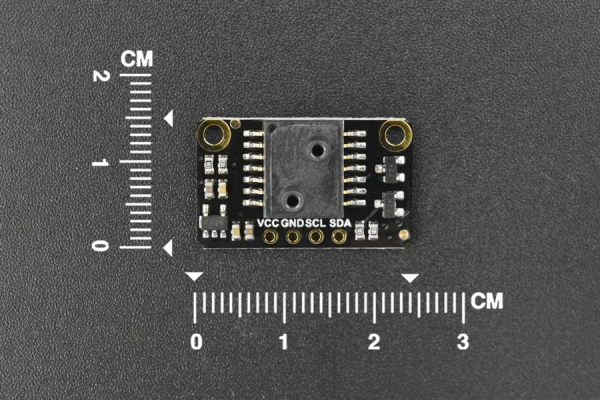

    • Dimension: 14.5*24mm/0.57*0.94”

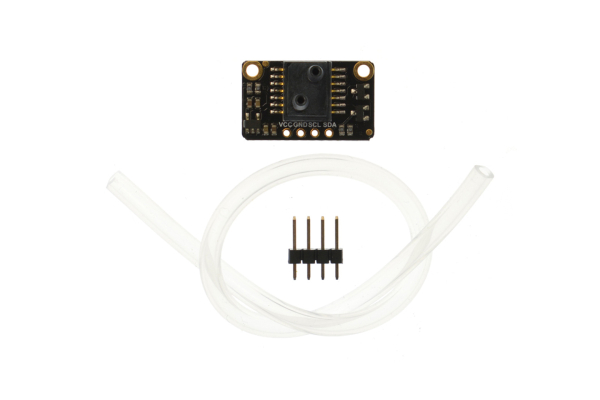

    Shipping List

  • Differential Pressure Sensor(±500pa) x1
  • 2.54-4P Black Single Row Pin Header x1
  • Silicone Tube (20cm) x1
