Varenr. SEN0544

GM73 Barcode & QR Code Scanning Module

522,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

522,50 DKK pr. stk. -
503,00 DKK pr. stk.
Spar 4%
484,00 DKK pr. stk.
Spar 7%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Introduction

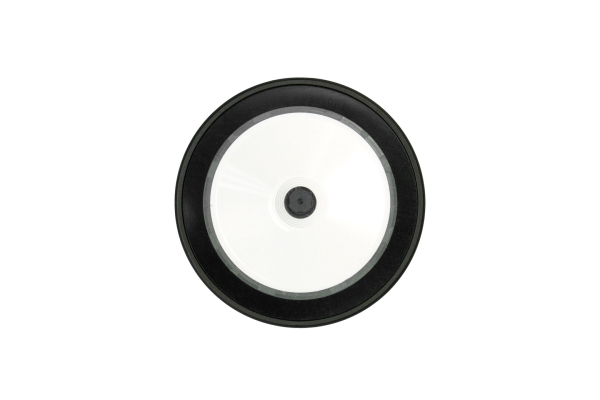

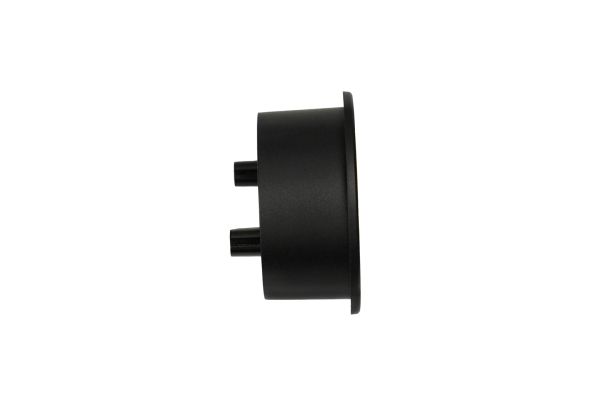

The GM73 code reader module is a high-performance code scanner that can capture common 1D and 2D codes like Barcode and QR on labels, papers, or even screens at a high speed of about 1s.

The module comes with superior reading performance utilizing advanced decoding algorithms based on smart image recognition, which is able to read all kinds of codes accurately. The scanner allows users to configure parameters by scanning setup codes, greatly reducing development difficulty. Besides, it has onboard micro USB and UART and can be conveniently embedded into various devices like self-service vending machines, metro gates, access control, checkout counter, and so on.

Features

  • Smart image recognition
  • Capture speed of about 1s

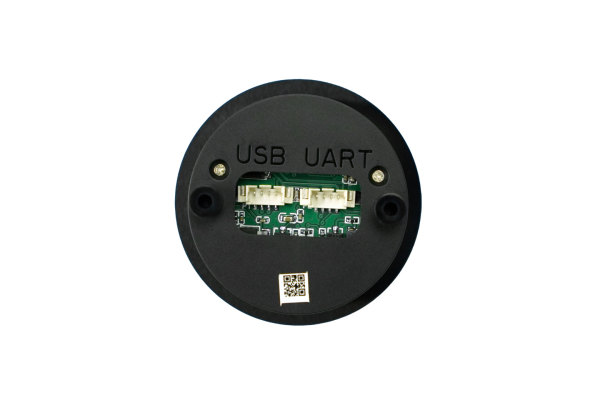

  • Onboard micro USB and UART
  • Specification

  • Sensor: 640*480 CMOS
  • Illumination: white LED
  • Focus: red LED
  • 1D Codes Supported: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Standard 25, Matrix 2 of 5
  • 2D Codes Supported: QR Code, Data Matrix, PDF417
  • Reading Accuracy: ≥5mil
  • Depth of Field: 30-150mm (Starting from the front camera, the mobile phone screen size of 5.2”)
  • Scanning Angle: intersection angle 360°, elevation ± 55°, deflection angle ± 55°
  • Viewing Angle: Inclination 60°, Elevation 46°
  • Contrast: ≥25%
  • Interface: TTL-232, USB
  • Dimension: about 30*24*7mm /1.18*0.94*0.28”
  • Operating Voltage: DC 5V
  • Operating Current: ≤180mA
  • Ambient Light: 0~10000lux
  • Operating Temperature: -20℃~50℃
  • Storage Temperature: 40℃~70℃
  • Operating Humidity: 5%~95% (Non-condensing)

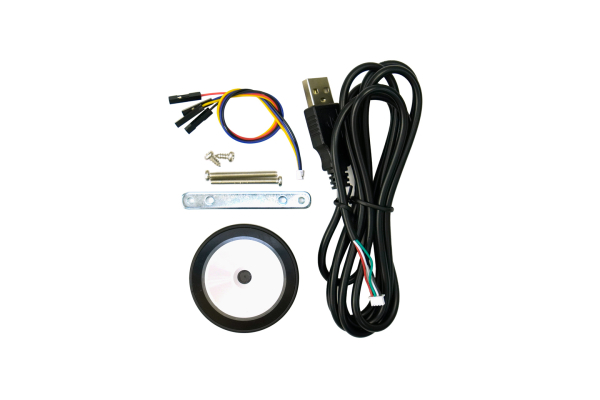

  • Shipping List

  • GM73 Barcode & QR Code Scanning Module x1
  • USB Cable x1
  • TTL Adapter x1
