Varenr. DFR0588

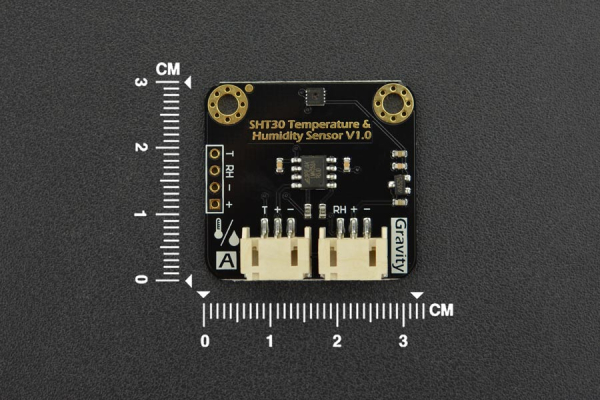

Gravity: Analog SHT30 Temperature & Humidity Sensor

112,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

112,50 DKK pr. stk. -
99,00 DKK pr. stk.
Spar 12%
86,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • More Documents
  • Introduction

    Gravity: Analog SHT30 Temperature & Humidity Sensor adopts the new generation SHT30 temperature and humidity sensor from Sensirion. Thanks to Sensirion's CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and immunity to interference. The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity. It is compatible with 3.3V/5V controllers such as Arduino, micro:bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

    Connection Diagram


    Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (Arduino UNO)


    Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (micro:bit+micro:mate)


    Features

    • Internal auto-calibration, linear analog voltage output
    • High precision, low power consumption, fast response
    • Compatible with 3.3V/5V controller

    Specification

    • IC (Sensor): Sensirion SHT30
    • Input Voltage (VCC) : 3.3V~5.5V
    • Interface: Gravity Analog (PH2.0-3P,analog voltage output 0.3-2.7V)
    • Quiescent Current: <0.5 mA

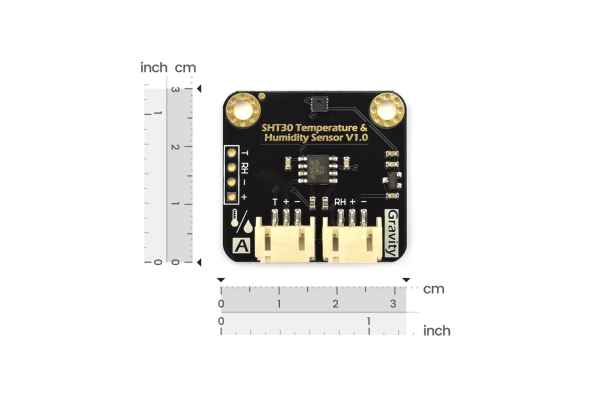

    • Dimension: 30×32 mm / 1.18×1.26 in
    • Weight: 3g
    • Temperature Performance
                 Range: -40 ~ 125 ℃
                 Resolution: 0.01 ℃, 14bit
                 Accuracy: ±0.2℃@10~55℃ (typical), ±1.5℃@-40 ~ 125 ℃ (typical)
                 Response Time: >2s

    • Humidity Performance
                 Range: 0 - 100 %RH
                 Resolution: 0.006 %, 14bit
                 Accuracy: ±3 %RH@10~90 %RH (typical),±8 %RH@0~100 %RH (typical)
                 Response Time: >8s

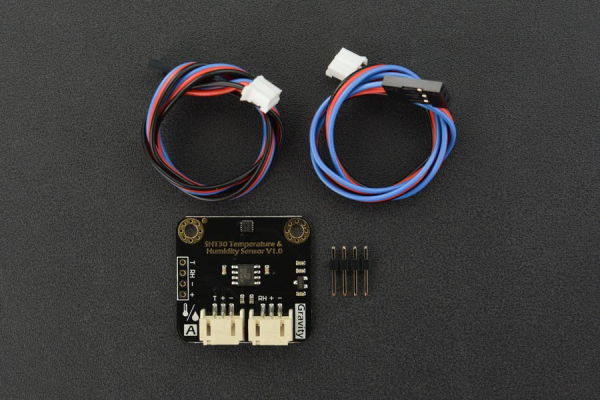

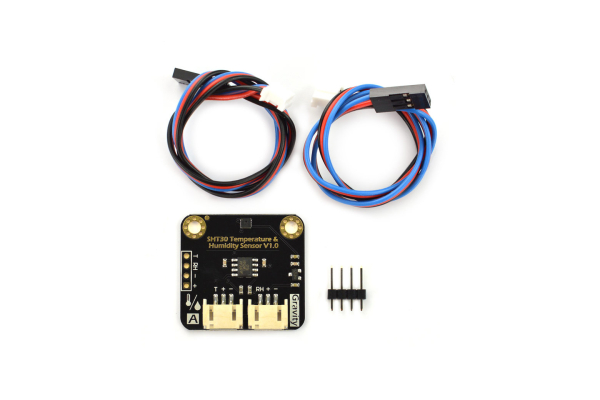

    Shipping List

    • Gravity: Analog SHT30 Temperature & Humidity Sensor x1
    • XH2.54-4P Black Header x1
    • Gravity-3P Analog Sensor Cable x2
