Multimeter UNI-T UT622A

The UT622A LRC is a hand-held component meter - inductors, resistors and capacitors and their secondary properties: D (loss factor), Q (quality factor), Θ (phase angle in degrees), Θ (phase angle in radians) and ESR (equivalent series or parallel resistance). The parameters of the components are measured by alternating voltage with a selectable frequency of 100, 120, 1000, 10000 Hz and a selectable amplitude of 0.1Vrms, 0.3Vrms, 1.0Vrms at the output impedance of the signal source 100Ω. The highest measurement accuracy is 0.1%.

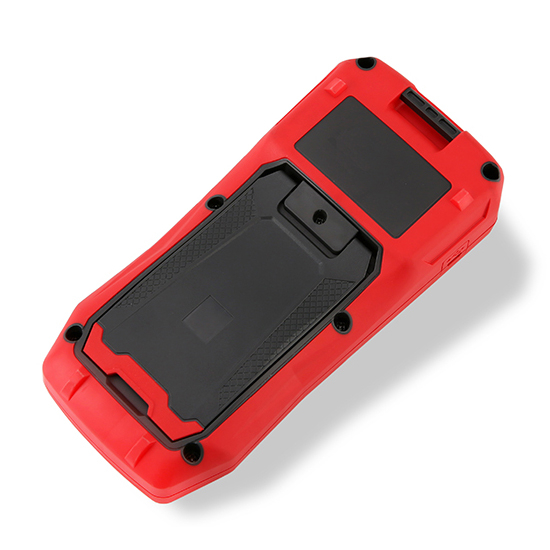

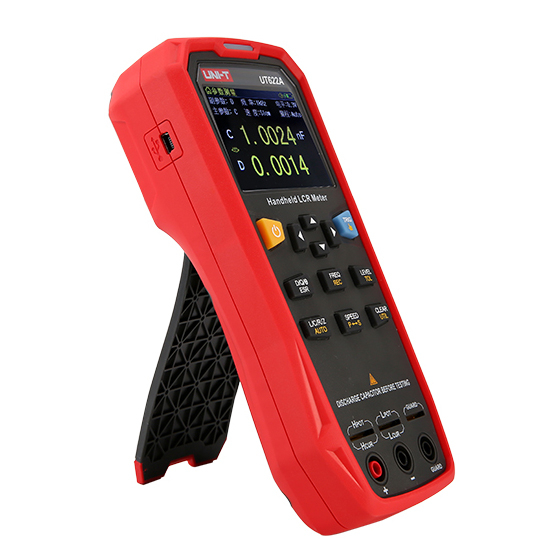

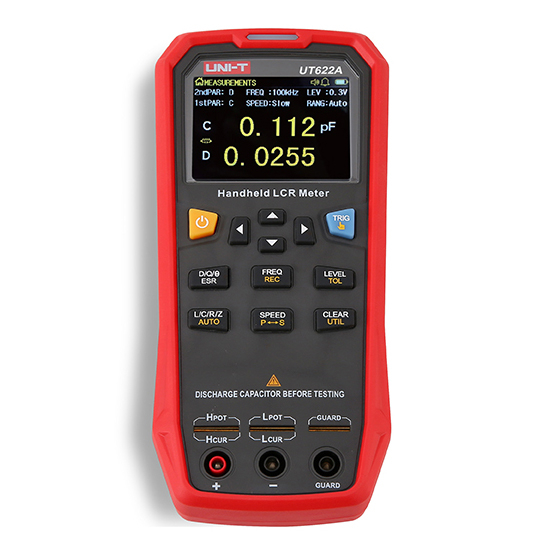

The device has an intuitive TFT LCD display with a diagonal of 2.8 inches and adjustable backlight brightness in ten degrees, a built-in large-capacity Li-Pol battery 1800mAh and a miniUSB connector for charging and data transfer to a PC. The maximum value of the display when measuring primary parameters is 99999 and the minimum value when measuring secondary parameters is 0.0001. Measurement mode - one measurement triggered by a TRI button or a command from a PC; or continuous measurement with adjustable test start speed 20x / sec, 5x / sec, 2x / sec. Configuration of 2 + 1 or 4 + 1 terminals (after purchase of UTR-L100k-H test cables).
Due to its technological sophistication, the device is also suitable for professional use - in conjunction with a computer (PC) it creates a station for sorting components according to specified parameters and is usable in production lines, laboratories, etc.


Product parameters :

- manual RLC meter of primary and secondary parameters of components
- large backlit, intuitive TFT LCD display, 10 levels of brightness
- the display range is a maximum of 99999
- maximum accuracy 0.1%
- possibility to select components according to specified tolerance
- measurement with alternating voltage 100, 120, 1000 or 10000 Hz
- selectable amplitude measuring voltage 0.1Vrms, 0.3Vrms, 1.0Vrms
- equivalent mode selection (for Z <100Ω serial, for Z> 10kΩ parallel)
- automatic component identification
- built-in large-capacity Li-Pol battery:


1800 mAh
- power supply + charging:



DC adapter 5V ± 0.25V,> 1A
- operation on one battery charge:


typically 8 hours
- functions in recording mode and data statistics:

AVG, MAX, MIN
- beep when buttons are pressed:


yes, can be switched on / off
- possibility to lock the buttons:


yes
- automatic shutdown:



yes after 5, 15, 30, 60 minutes, or off
- data interface:




mini USB
- data transfer rate to PC:



9600/19200/38400 Baud
- acoustic and optical alarm comparison of tolerance results:
off, pass, fail
- audible alarm selection:



short beep, long beep, two short beeps
- open or short circuit tester reset:


yes
- setting of tolerance value from nominal:


1% to 20%, default 5%
- component counting:



all, compliant, non-compliant


Technical parameters :

- Range of measurement of primary impedance parameters:
type // display range // minimum resolution on the range
inductance L // 0.001 μH to 9999.9 H // 1 / 0.1 / 0.01 / 0.001 μH
capacitance C // 0.001 pF to 99.999 mF // 1 / 0.1 / 0.01 / 0.001 pF
resistance R // 0.0001 Ω to 99.999 MΩ // 0.0001 Ω
general impedance Z // 0.0001 Ω to 99.999 MΩ // 0.0001 Ω

- Measurement range of secondary impedance parameters:
type // display range // minimum resolution on the range
loss factor D // 0.0001 to 9.9999 // 0.0001
quality factor Q // 0.0001 to 99999 // 0.0001
phase angle in degrees Θ deg // -179.9 ° to 179.99 ° // 0.01 °
phase angle in radians Θ rad // -3.142 rad to 3.1416 rad // 0.001 rad
equivalent resistance ESR // 0.01 mΩ to 999.99 Ω // 0.01 mΩ


- display:





backlit TFT LCD display with a diagonal of 2.8 "
- display range:




maximum 99999
- accuracy:




best 0.1%
- selection of components according to the set tolerance:
yes
- voltage measurement:



AC 100, 120, 1000 or 10000 Hz
- amplitude measures. voltage:



0.1 Vrms, 0.3 Vrms, 1.0 Vrms
- data transfer to PC:



yes, after installing the software to the PC
- power supply:




Li-Pol battery 1800mAh and (or) DC adapter 5V ± 0.25V,> 1A
- automatic charge management:


even when the device is switched off
- charging and data interface:



mini USB
- working environment:



temperature 5 to 35 ° C, humidity ≤80% ° C
- weight without batteries:



305g
- product dimensions (H x W x D):


190 x 90 x 44 mm
- package dimensions:



225 x 220 x 63 mm
- safety and EMC certification:



IEC / EN61010-1: 2010, EN61326-2: 2013, EN61326-2-2: 2013

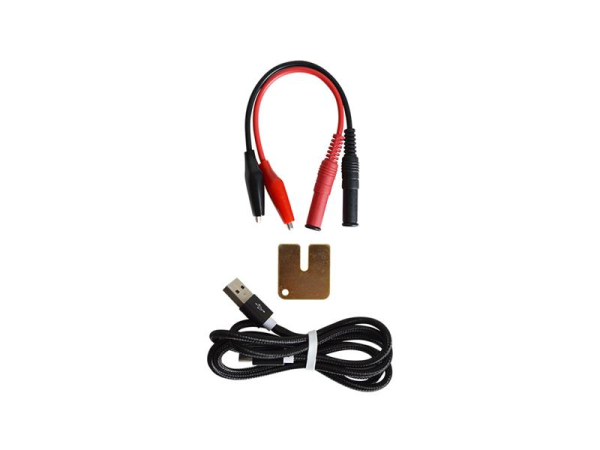

Contents of individual packaging :

- device UT622A:




1pc
- USB interface cable:



1pc
- two-pole test cables with crocodile clips UTR-002:

1pc
- gold-plated shorting board UTR-001:


1pc
- instructions for use:



1pc


MANUFACTURER: UNI-TREND
