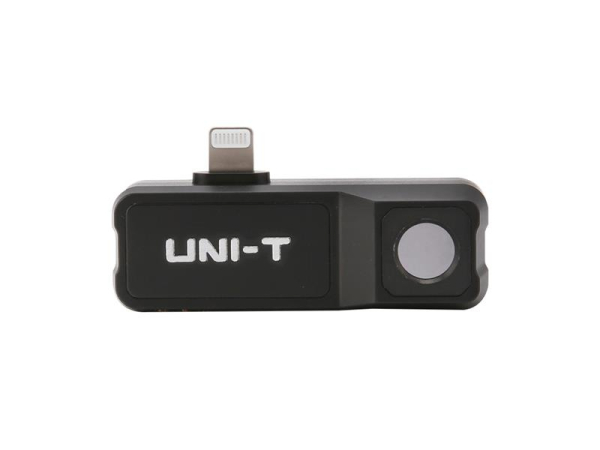

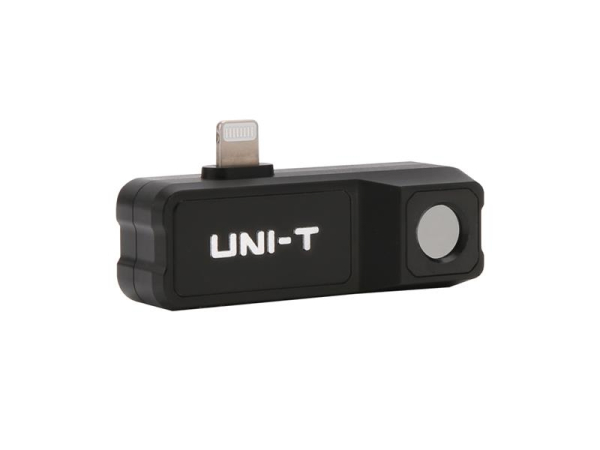

Thermal imager UNI-T UTi120MS (iPhone)

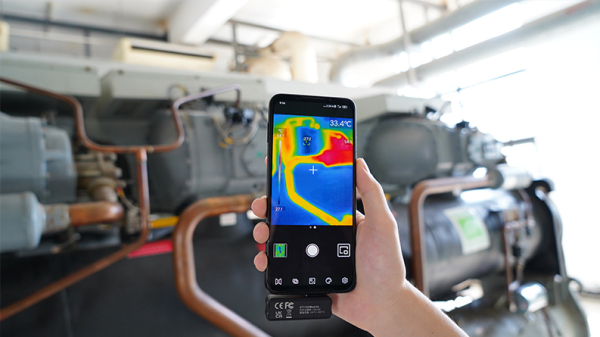

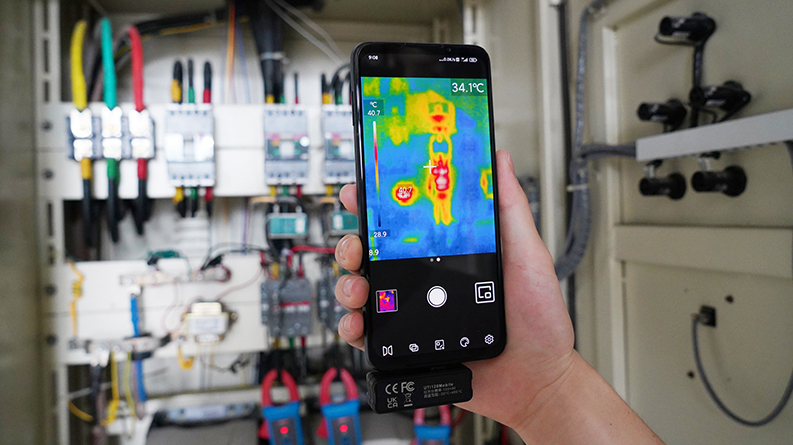

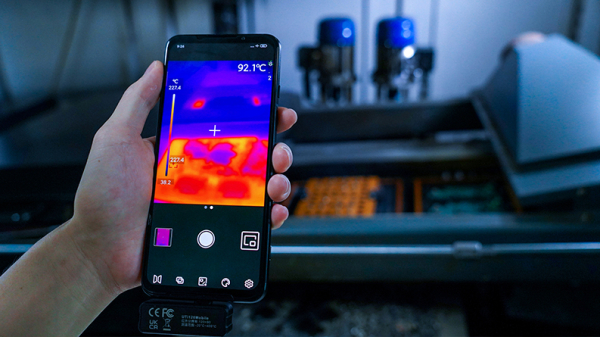

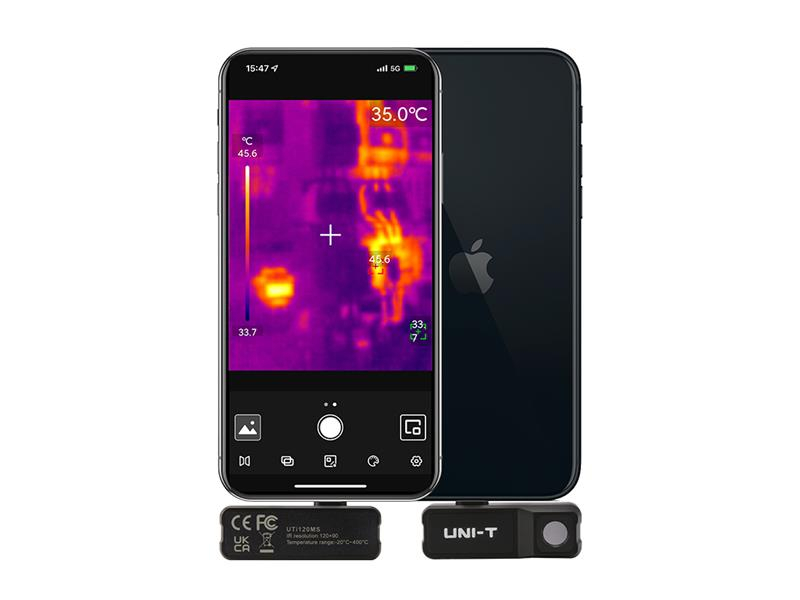

The UTi120 Mobile thermal imager is an infrared camera designed for measuring the surface temperature of objects in the range from -20 ° C to 200 ° C. The camera is designed for connection to a iPhone, preferably equipped with a socket for a lightning type connector. However, it is possible to connect the camera to the phone with the included extension cable. On the display of the mobile phone you can display the thermal image of the objects, converted into a visible image with the selected color palette: iron red, rainbow, gray scale, hot red, black and white, lava, high contrast rainbow. In real time, it is possible to have places with a minimum and maximum temperature marked in degrees Celsius or Fahrenheit. Possibility to set alarms when a certain temperature is exceeded. The image from this camera can be blended (PIP) with the image of the front or rear camera of the mobile phone, while at the same time the infrared image can be mirrored. It is possible to analyze the temperature at a point or marked area (rectangle, circle, line, etc.) of the measured object. Automatically or manually release the camera shutter, save photos or videos. Ability to edit photos in the UTi120 Mobile App.
Advantages of thermal imaging detection :
1. Intuitive, efficient and convenient, thanks to which users directly "see" the temperature fluctuations of the measured object
2. Thermal state of various sites for complex analysis, providing more information for assessment of fault sites.


Product parameters :

- surface temperature measurement from -20 ° C to 200 ° C
- adjustable alarm when the temperature is exceeded
- display of temperatures in the image on the display of the mobile phone
- save pictures and videos to the mobile phone's memory
- edit photos in UTi120 Mobile App
- Lightning connector for connecting the camera to the socket on the mobile phone
- included extension cable 1m
- adjustable emissivity according to the type of objects


Technical parameters :

- total infrared resolution:



120 x 90 pixels
- sensor pixel size:




17μm
- measurement in the infrared spectral band:

8μm - 14μm
- field of view (FOV):




50 ° (H) x 38 ° (W)
- thermal sensitivity (NETD):



<60mK
- spatial resolution (IFOV):



7.6 mrad
- temperature range:



from -20 ° C to 200 ° C
- temperature resolution:



0.1 ° C
- temperature measurement accuracy> -10 ° C:

± 2% or ± 2 ° C (whichever is greater, at an ambient temperature of 25 ° C)
- frame rate:




≤25Hz
- lens:





fixed adjustment
- adjustable emissivity:



0.01 to 1.0
- temperature analysis area:



point, line, rectangle, circle
- transposition of the thermal image into the color palette:
iron red, rainbow, gray scale, hot red, black and white, lava, high contrast rainbow
- blending the thermal image from the infrared camera with the image in the visible spectrum from the front or rear camera of the mobile phone, including image mirroring
- monitoring the highest and lowest temperature in the image, setting temperature alarms
- current language support in the application:

English, Chinese (default)
- ambient operating temperature:


0 ° C to 45 ° C
- ambient storage temperature:


-20 ° C to +60 ° C
- relative humidity:




10% to 85%, no condensation
- protection against falling from a height of 2 m:

yes
- working altitude:




2000m
- CE, RoHS, FCC certificates:



yes


Package contents :

- thermal imager UTi120 Mobile: 1pc
- extension cable 1m: 1 pc
- operating instructions
