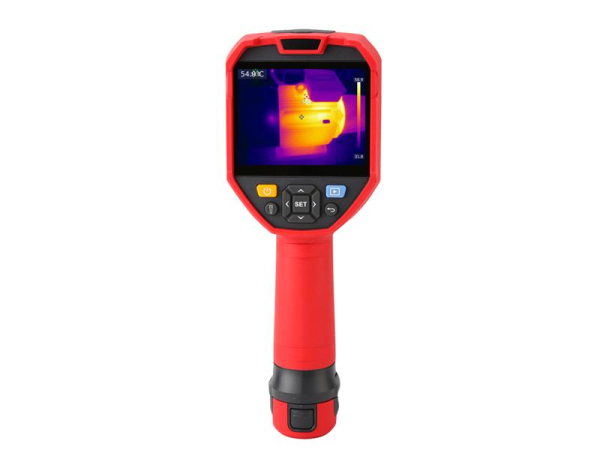

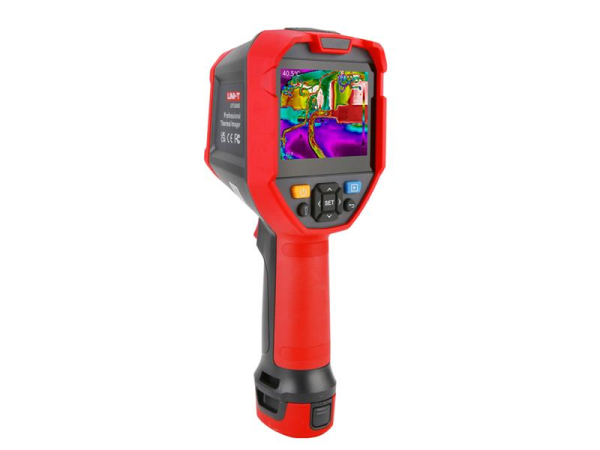

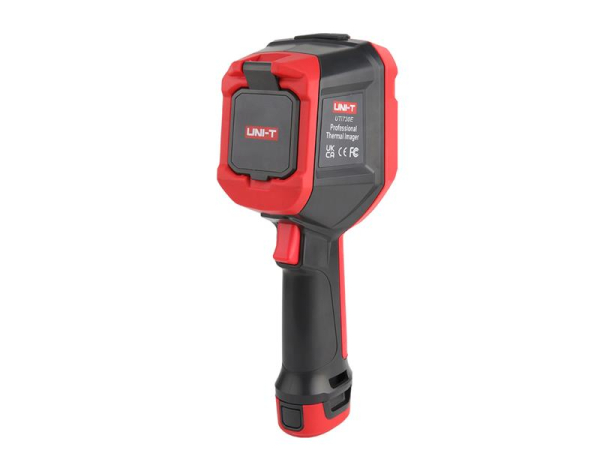

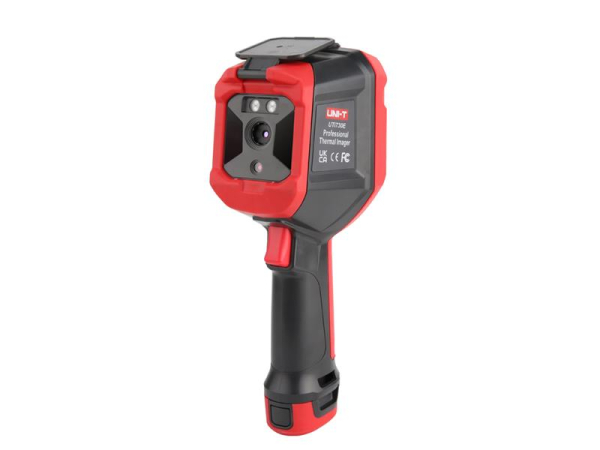

Thermal imager UNI-T UTi730E

The thermal camera UTi730E is a top camera working in the field of infrared radiation, designed for measuring the surface temperature of objects in the range from -40°C to +400°C.
The camera contains 76,800 uncooled vanadium oxide pixels, each 12μm in diameter. The thermal image of the objects converted into a visible image by the selected color palette can blend with the image in the visible light range. Another 2 million pixels for visible light take care of that. Setting the system date and time and generating QR codes for each photo makes it easier to classify photos later. Manual or automatic triggering of the camera shutter at preset intervals. Saving images on the supplied microSD card or transferred via Wi-Fi Hotspot, for example, to a laptop. Real-time image output via USB-C connector to laptop and TV. Switching temperature units in degrees Celsius, Kelvin and Fahrenheit. Automatic monitoring of the hottest and coldest place in the image with temperature indication, temperature analysis of several objects at once: point, line, circular, rectangular. Setting temperature alarms. Photo analysis on a PC or mobile phone using the supplied Vitta software and APP. Removable Li-ion battery 5200mAh, which can be charged in the device or in an external charger.

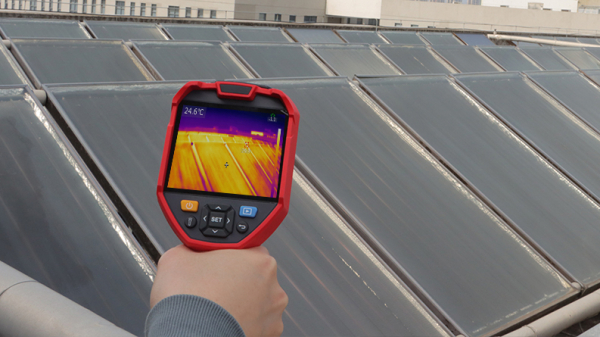

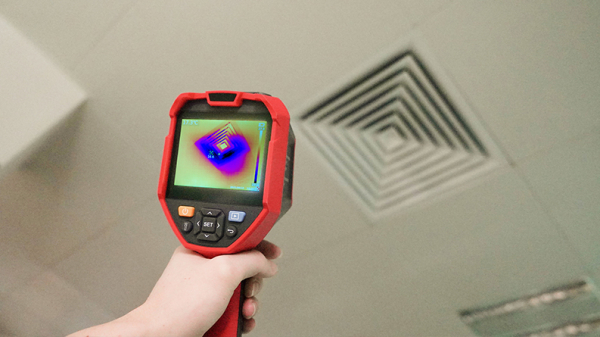

The thermal imager UTi730E will find wide application in the construction industry in the search for heat leaks from masonry, roofs or pipes, in the energy sector in the identification of electrical faults. management, in cold storage, in service centers when searching for overloaded equipment and in scientific research.

On the manufacturer's website, you can download software in the form of (.zip) or (.exe) for connecting to a PC or for mobile applications in the form of (.apk) or (.zip). Here it is also possible to download the user manual in English, French, German, Russian and Spanish:


https://thermal.uni-trend.com/product/uti730e/#Downloadsf52d-5897

Product parameters :

- surface temperature measurement from -40°C to +400°C
- temperature analysis of objects: point, line (line), circle, rectangle
- 7 color swatch palettes for thermal image transposition
- automatic monitoring of the highest and lowest temperature in the image
- adjustable high and low temperature alarms
- blending of the thermal image with the visible image
- freely focused lens, digital Zoom 2x, 4x
- very small thermal imaging pixels, only 12μm
- adjustable emissivity of measured objects
- setting the system time and date
- saving pictures on the supplied micro SD card

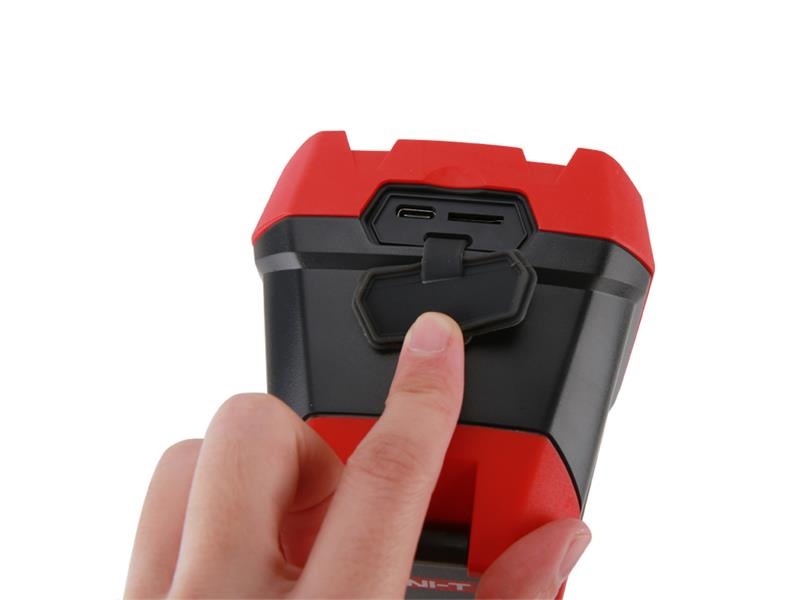

- USB-C connector for charging the battery, transferring images to a PC, and projecting images
- built-in Wi-Fi to create a Hotspot
- 3.5" IPS LCD display with a resolution of 640 x 480px
- built-in LED light
- removable Li-ion battery 5200mAh

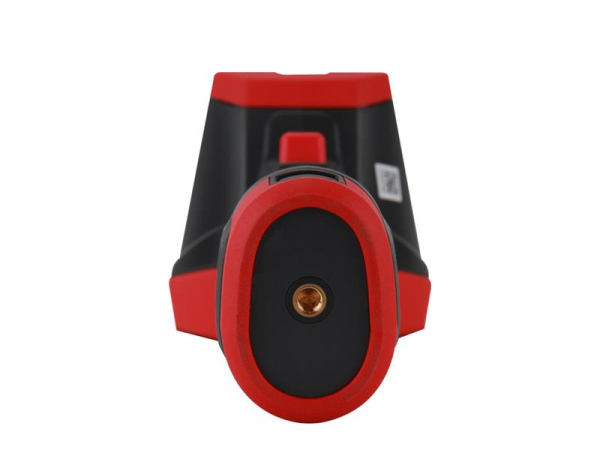

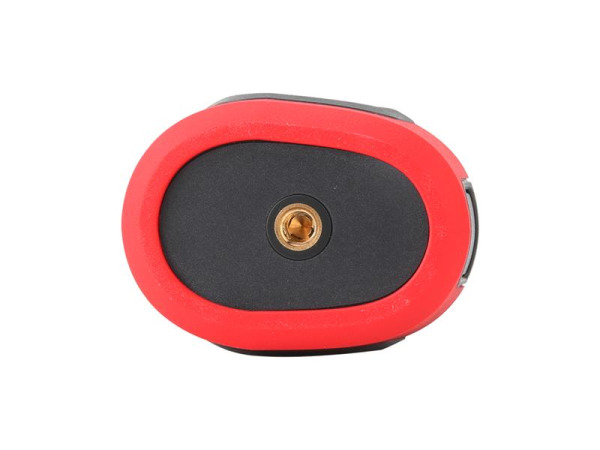

- mounting thread ¼" on the tripod


Technical parameters :

- total infrared resolution:


320 x 240 pixels (total 76800)
- visible light sensor resolution:


2 million pixels
- temperature measurement range:

-40℃ to 400℃ (-40℉ to 752℉)
- temperature measurement unit:

℃ (default), ℉, K
- temperature resolution:


0.1° C
- thermal imaging sensor:


uncooled vanadium oxide
- thermal imaging sensor pixel size:

12 μm
- measurement in the infrared spectral band:
8 μm to 14 μm
- field of view (FOV):



56° x 42°
- thermal sensitivity (NETD):


< 65mK @25℃
- IFOV (Instantaneous Field of View):

3 mrad
- focus mode:



free focus lens
- focal length:



4.0 mm
- digital zoom:



2x, 4x
- frame rate:



9 Hz
- temperature measurement accuracy:

-10℃ to 400℃ (at a room temperature of 25℃ and ± 2℃ / ± 2% to achieve the maximum accuracy value)
- display:




LCD IPS 3.5" with a resolution of 640 x 480px
- image mode:



thermal imaging, visible light, fusion (0%, 25%, 50%, 75% and 100%), and picture-in-picture
- adjustable emissivity:


0.01 to 1.0 (default 0.95)
- temperature analysis area:


point, line, rectangle, circle (up to 6 objects at once)
- thermal image transposition into a color palette:
iron red, rainbow, black heat, white heat, red heat, lava, high contrast rainbow
- high and low temperature alarm:

yes (LED lighting alarm and LCD animation alarm)
- analytical software:


Vitta, APP
- shooting mode:



manual trigger, automatic trigger in an interval of 1 to 1000 sec
- image saving format:


JPG
- interface:



microSD card with a maximum capacity of 32 GB; USB-C (charge, real-time image and save to USB disk); WIFI Hotspot
- menu language:



English/French/German/Spanish/Russian
- certification:



CE, FCC, UKCA, ROHS
- operating temperature:


0℃ to 50℃ (32℉ to 122℉)
- storage temperature:


-10℃ to 60℃ (14℉ to 140℉)
- operating humidity:


10% to 95%RH (without condensation)
- power supply:



removable Li-ion battery 5200 mAh
- automatic shutdown:


yes, optional Off/5/10/20/30/45/60/90 minutes
- charging time:



less than 4 hours
- operating time per charge:


more than 3 hours (with WIFI off)
- IP level:




IP54 (IEC 60529:1989+A1:1999+A2:2013)
- drop test:



2 m
- net weight:



654 g
- product dimensions:


260 × 97 × 99 mm
- standard carton size:


400 x 185 x 345 mm
- weight of standard GW carton packaging:
3.6 kg

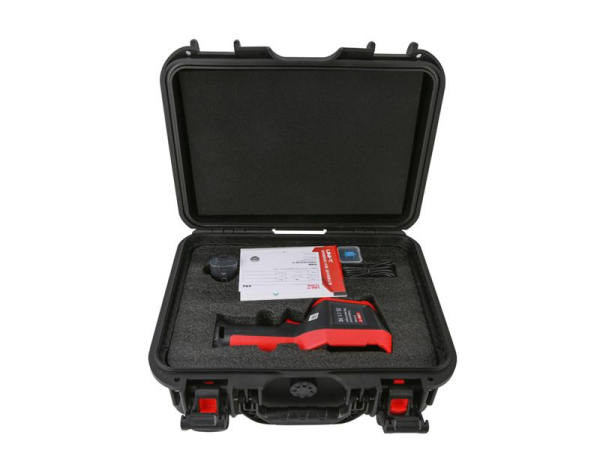

Package contents :

- thermal camera UTi730E:


1 pc
- battery 5200mAh:



1 pc
- USB type C cable:



1 pc
- micro SD card 16 GB:


1 pc
- instruction manual:


1 pc


Manufacturer :

UNI-TREND
www.uni-t.cz
