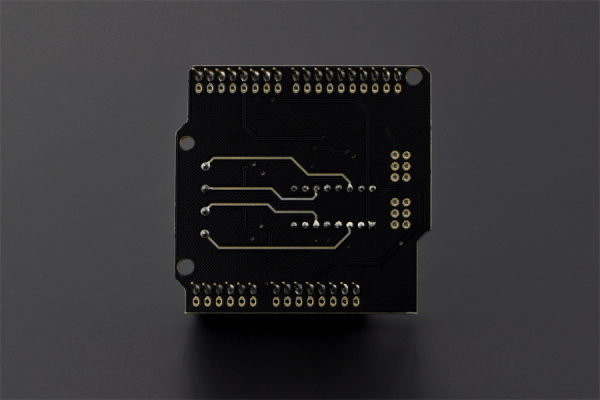

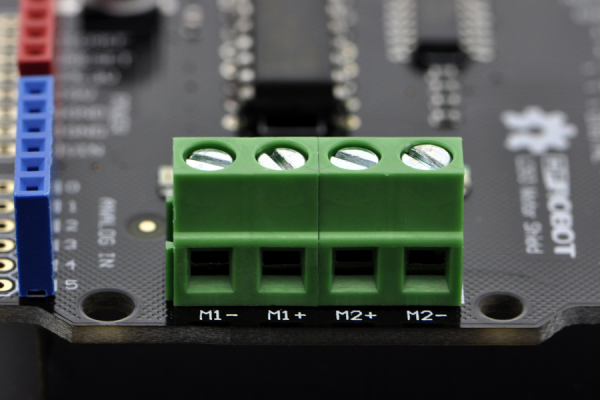

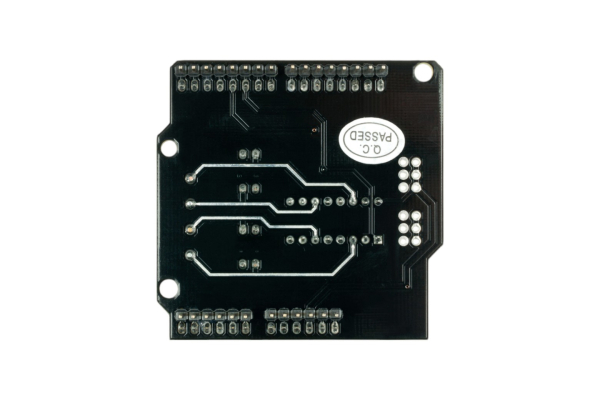

2x1A DC Motor Shield for Arduino

232,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

232,50 DKK pr. stk. -
209,00 DKK pr. stk.
Spar 10%
186,00 DKK pr. stk.
Spar 20%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

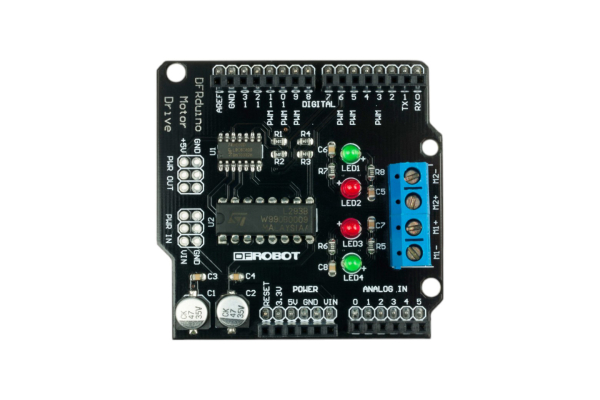

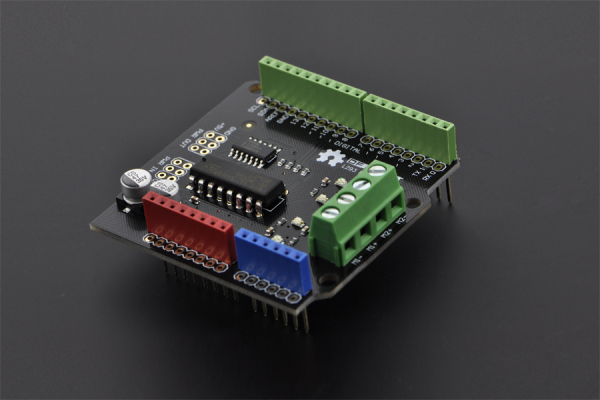

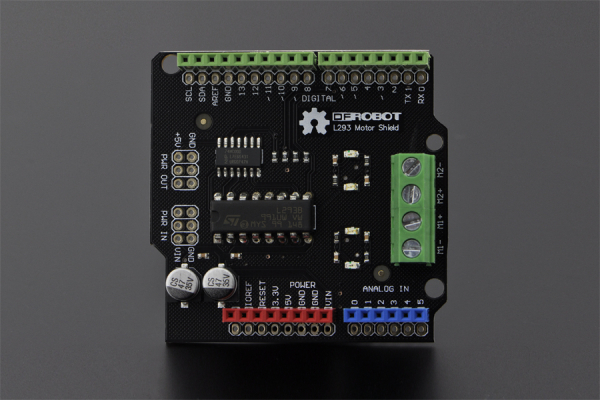

This DC Motor shield  for Arduino uses L293 chip which allow to drive two 7-12V DC motors with maximum 1A current each channel. This shield can be directly stacked on standard Arduino Uno and Arduino Mega

Motor Drive Expansion Board Selection Guide

Product Name 2x1A DC Motor Shield for Arduino Micro:bit Driver Expansion Board Gravity: Dual Bipolar Stepper Motor Shield for Arduino (DRV8825) Quad DC Motor Driver Shield for Arduino
SKU DRI0001 DFR0548 DRI0023 DRI0039
Chip L293B HR8833 DRV8825 TB6612FNG
Operating voltage 5V DC / 3.3V/5V 2.7~5.5V
Motor drive voltage 7-12V DC 3.5~5.5V DC 8.2-45VDC 2.5V-13.5V
Maximum drive current 1A each way 1.5A 1.6A

1.2A continuous current (per channel)

2A (continuous pulse)

3.2A (single pulse)

Motor drive using pins PIN4/5/6/7 (Arduino Controllor) /

D4,D5,D6

D7,D8,D12

D3,4,5,6,7,8,11,12
Dimension 56x57mm 63 x 58mm 83*55*25mm  52mm * 53mm
Weight (g) 60 64 48 24
Frequently used With

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

FIT0278/FIT0503

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

Key Features With motor indicator

8-way servo interface

DC motor x4/stepper motor x2(multiplexed with motor interface)

Full step, 1/2, 1/4, 1/8, 1/16, 1/32 step mode High-speed drive capability, can drive ordinary 2-phase stepper motor to 5000RPM, and drive quad DC at the same time

Product Name Gravity: IO Expansion & Motor Driver Shield Gravity: 2x2A Motor Shield for Arduino Twin TMC260 Stepper Motor Driver Shield 2x2A DC Motor Shield for Arduino
SKU DFR0502 DRI0017 DRI0035 DRI0009
Chip TB6612FNG L298 TMC260 L298P
Operating voltage 2.7~5.5V 5V 5V 5V
Motor drive voltage 12V (peak value) 4.8 ~ 35V 40V max 6.5~12v(VIN Power Supply),4.8~35V (External Power Source)
Maximum drive current

1.2A continuous current (per channel)

2A (continuous pulse)

3.2A (single pulse)

up to 2A/channel up to 2A per motor coil  2A
Motor drive using pins

D4 D5 D6 D7

D10,11,12,13 / Pin 4,5,6,7 are used to drive two DC motor
Dimension 68.5mm×53.3mm 56x57mm   55x55mm
Weight (g) 36 35 35 60
Frequently used With

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

FIT0278/FIT0503

FIT0565/FIT0520/

FIT0450/FIT0492/

N20 Series

Key Features Integrated XBee Slot, XBee, WiFi Bee, Bluetooth Bee,  I2C.

Mirrored version of DRI0009.

Drive pins: 10, 11, 12, 13

Not compatible with IO expansion board V7.1. The control port is four, which reduces the overhead of the Arduino digital ports, and easy to program.

Suitable for driving bipolar stepper motors.

SPI serial bus control or STEP/DIR signal control.

Controllers such as Mega with full port expansion.

256 times microstep subdivision.

Use mirror motor to drive DRI0017 to aviod the conflicts . Support PWM speed control. Support PLL advance speed control

Specification

  • 2 way 7-12V motor drive
  • Up to 1A current each way
  • PIN 4,5,6,7 are used to drive two DC motors
  • Support PWM speed control

Shipping List

  • 1A Motor Shield  For Arduino  x1
