Varenr. DFR0721

Fermion: 8421 Encoder-Vertical (Breakout)

65,00
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

65,00 DKK pr. stk. -
57,00 DKK pr. stk.
Spar 12%
49,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    This is an 8421 absolute position encoder with 16-gear code(0-F). The mechanical position determines the uniqueness of each position of the encoder. Compared to a potentiometer, it doesn’t require memory, reference point and constant counting. Whenever you need the position, you can just easily read it. In this case, the anti-interference of the encoder and the reliability of the data are greatly improved. And because of the absolute uniqueness of each position, the anti-interference ability, and no power-off memory function required, this product is widely used in many kinds of industrial systems for device status controlling.

    Specification

    • Operating Current: 150mA, 42V
    • 8421 Encode: 16-gear(0-F)
    • Service Life: 10000 steps
    • Operating Temperature: -40~85℃

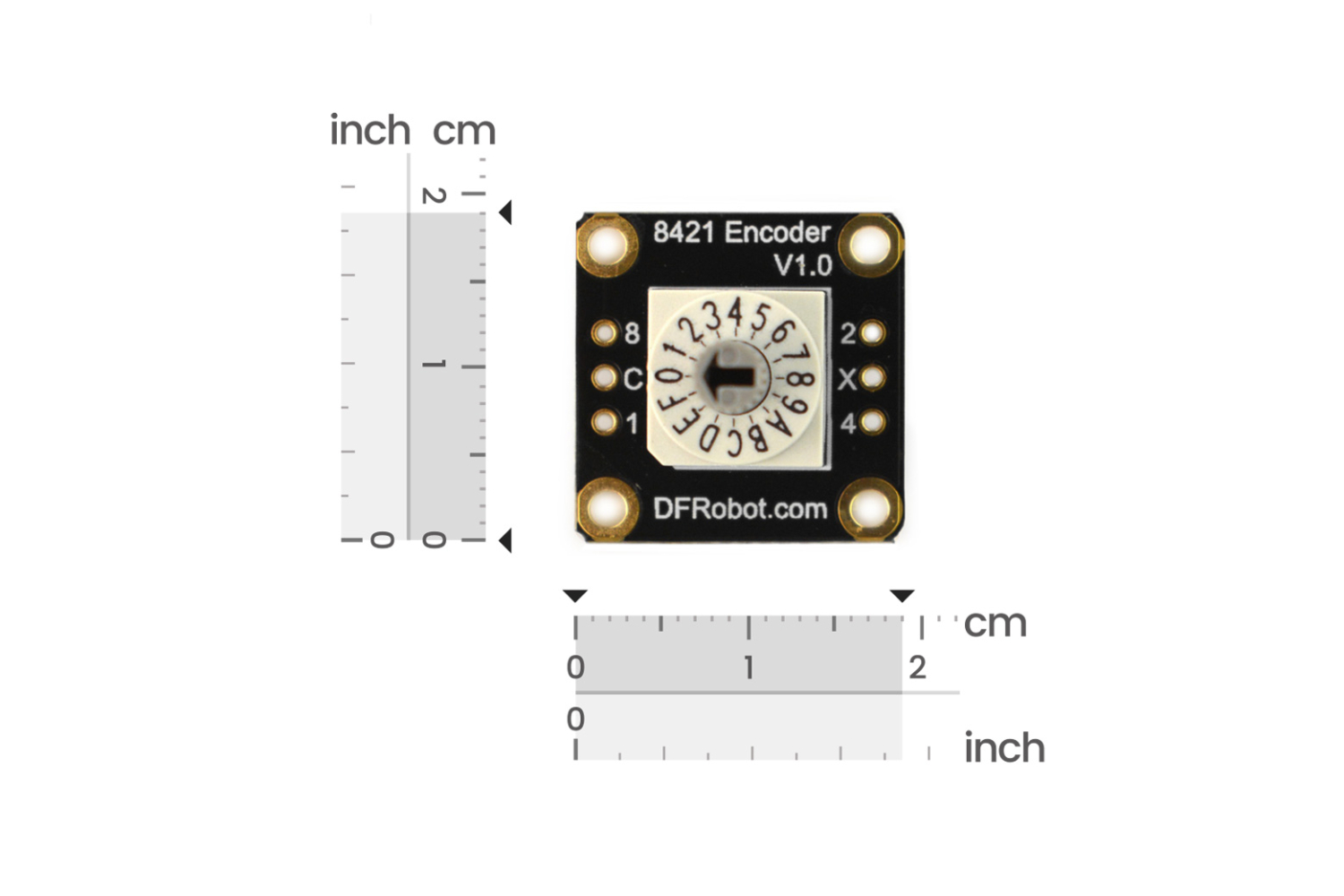

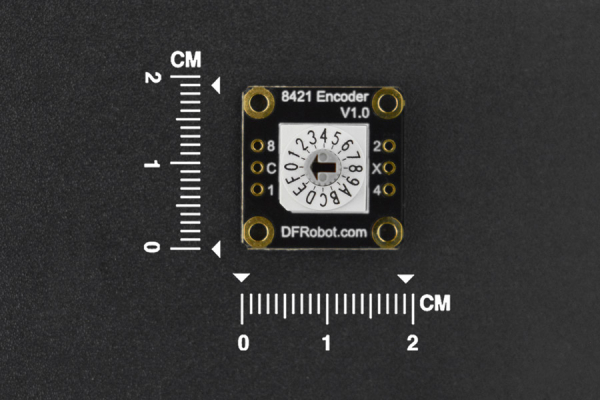

    • Dimension: 19x19mm/0.75x0.75”
    • Mounting Aperture: 2.0mm
    • Mounting Hole Pitch: 15x15mm

    Shipping List

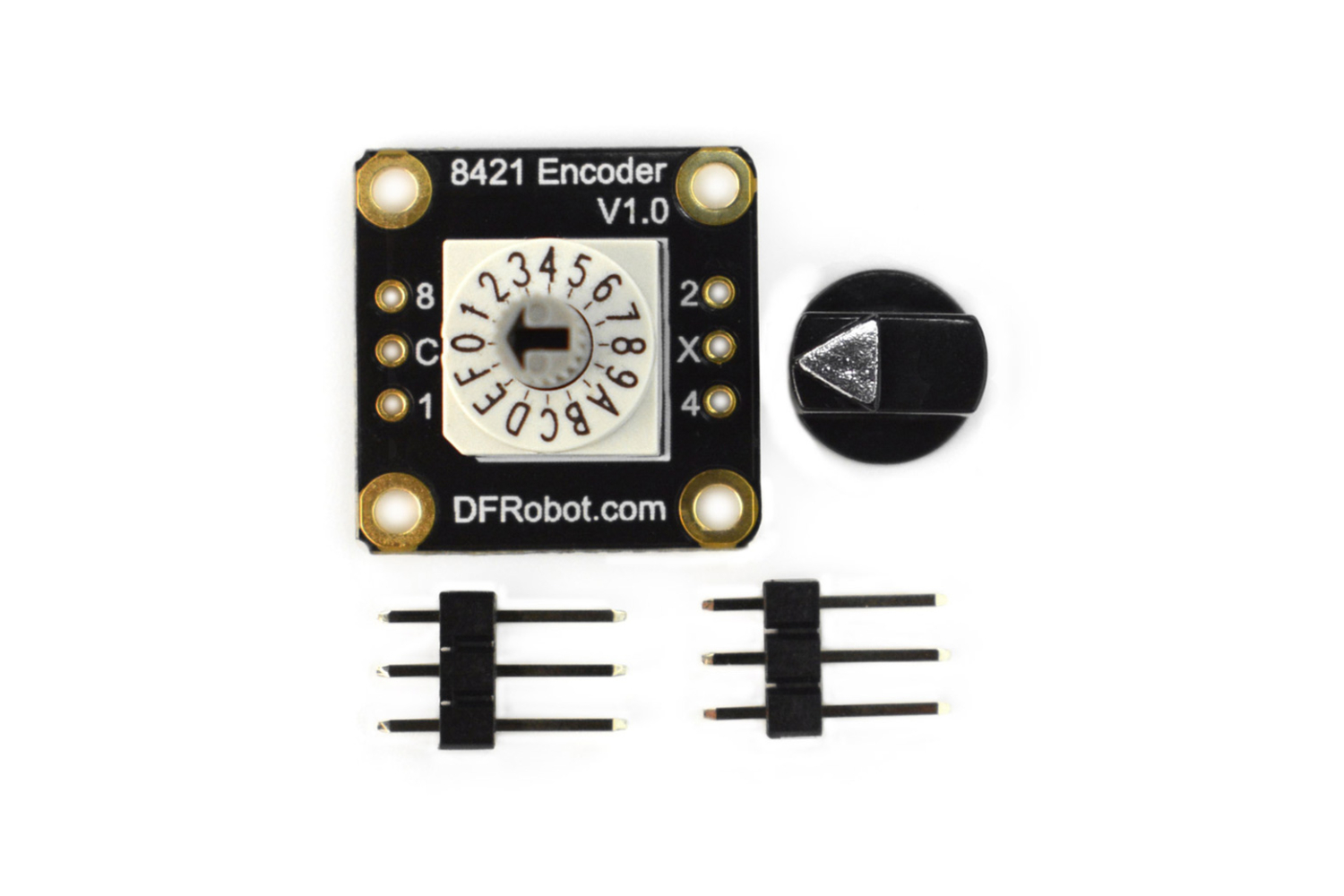

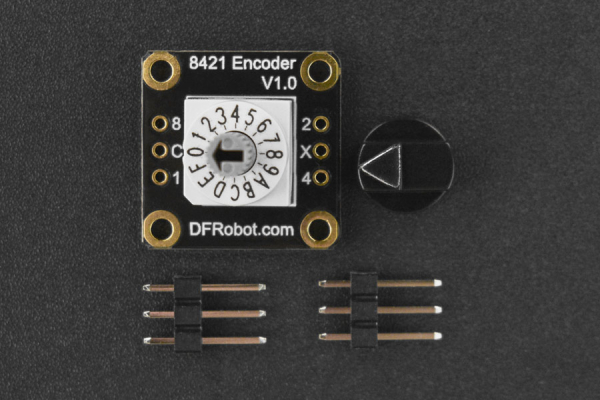

  • 8421 Encoder - Vertical x1
  • 2.54 Black Single Row Pin Header-3P x2
