Varenr. SEN0435

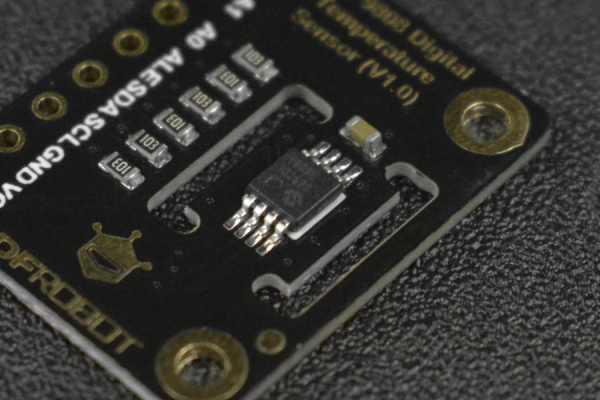

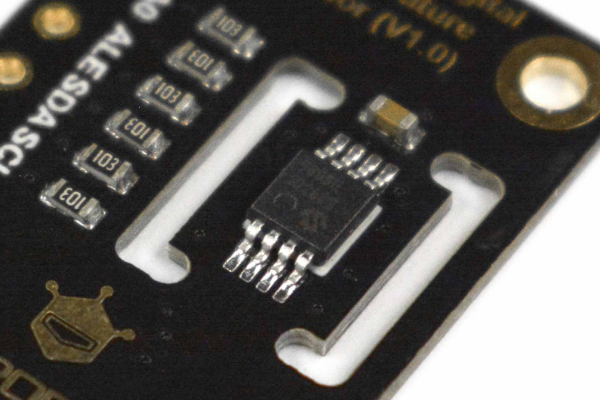

Fermion: MCP9808 High Accuracy I2C Temperature Sensor

81,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

81,25 DKK pr. stk. -
71,00 DKK pr. stk.
Spar 13%
61,00 DKK pr. stk.
Spar 25%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Schematics
  • Dimensions
  • MCP9808 Datasheets
  • Introduction

    Compared to DS18B20, LM35, and other common temperature sensors, the MCP9808 is one of the more accurate temperature sensing options, with a typical accuracy of ±0.25°C and maximum accuracy of ±0.5°C over the sensor's -40°C to +125°C range and precision of +0.0625°C.

    The MCP9808 comes with user-programmable registers that allow user-selectable settings such as Shutdown or Low-Power modes and the specification of temperature Alert window limits and critical output limits. When the temperature changes beyond the specified boundary limits, the MCP9808 outputs an Alert signal. The user has the option of setting the Alert output signal polarity as an active-low or active-high comparator output for thermostat operation, or as a temperature Alert interrupt output for microprocessor-based systems.

    These features make the MCP9808 ideal for sophisticated, multi-zone, temperature-monitoring applications.

    Fermion: MCP9808 High Accuracy I2C Temperature Sensor

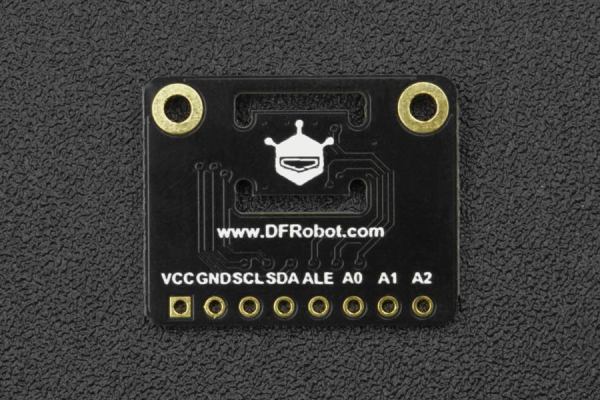

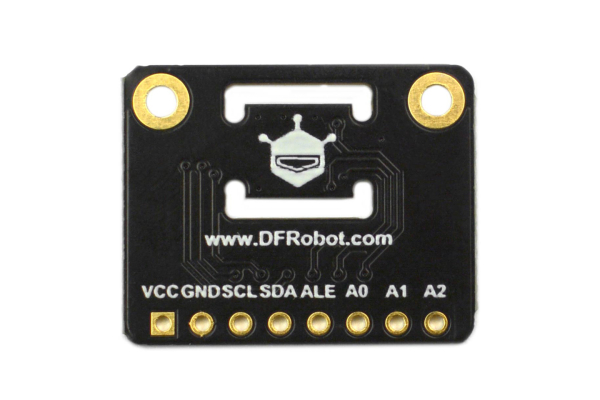

    Label Description
    VCC Power Positive
    GND Power Negative
    SCL Clock line
    SDA Data line
    ALT Alert
    A0 I2C Address Configuration Pin
    A1 I2C Address Configuration Pin
    A2 I2C Address Configuration Pin


    Fermion: MCP9808 High Accuracy I2C Temperature Sensor

    Connection Diagram

    Features

  • High-temperature detection accuracy ±0.25°C/±0.5°C (typical/maximum)
  • Wide temperature detection range from -40°C to +125°C
  • Specification

  • Operating Voltage: 2.7~5.5V
  • Operating Current: 200μA (typical)
  • Accuracy:
                 ±0.25°C (typical) from -40°C to +125°C
                 ±0.5°C (maximum) from -20°C to 100°C
                 ±1°C (maximum) from -40°C to +125°C
  • User-Selectable Measurement Resolution: +0.5°C, +0.25°C, +0.125°C, +0.0625°C
  • User-Programmable Temperature Alert: Temperature Threshold Alert, Critical Temperature Alert
  • Communication Interface: I2C (2.54mm Breakout)

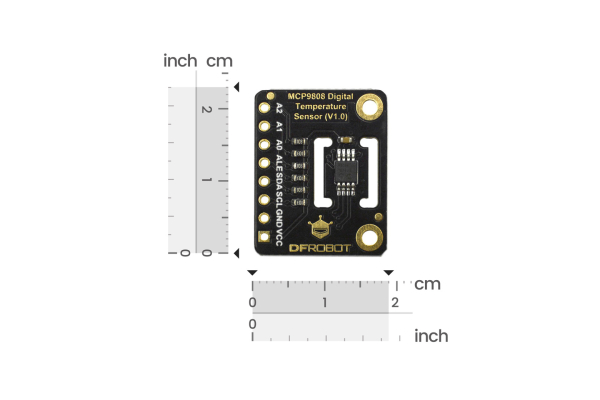

  • Dimension: 18.5×23mm/0.73×0.91"
  • Mounting Hole Size: 2mm
  • Mounting Hole Pitch: 18mm
  • Shipping List

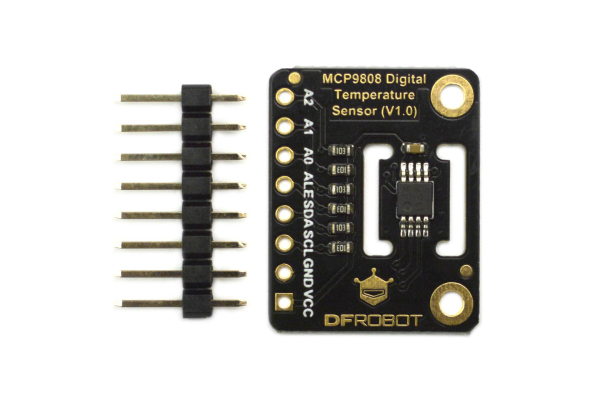

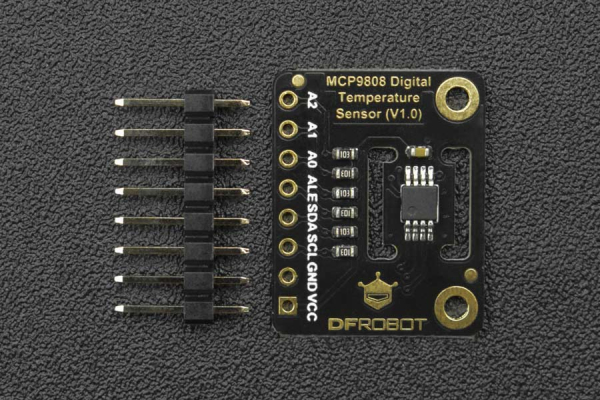

  • Fermion: MCP9808 High Accuracy I2C Temperature Sensor x1
