Varenr. SEN0428

Fermion: SHT40 Temperature & Humidity Sensor (Breakout)

122,50
DKK

Lagerstatus: Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

122,50 DKK pr. stk. -
108,00 DKK pr. stk.
Spar 12%
94,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Schematics
  • Introduction

    The SHT4X is the 4th generation digital temperature and humidity sensor from Sensirion. In line with Sensirion’s industry-proven humidity and temperature sensors, the SHT40 offers consistent high accuracy within measuring range.

    The SHT40 sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±1.8%RH and ±0.2℃. The internal variable power heater enables the device to work properly under extreme operating conditions like condensing environment.

    The board supply voltage of 3.3V to 5V and an current consumption below 0.15mA in low power mode make the SHT40 perfectly suitable for mobile or wireless battery-driven applications. It is suitable for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

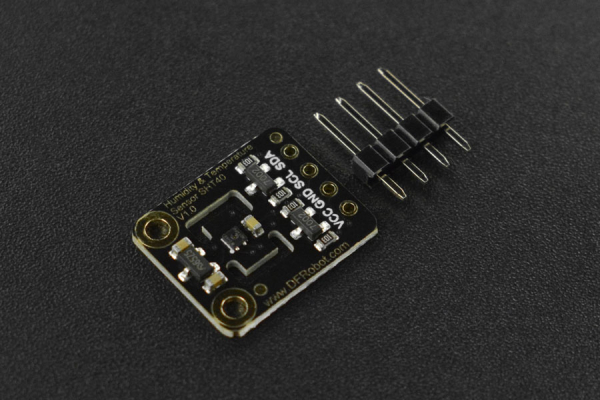

    Fermion:SHT40 humidity & temperature sensor

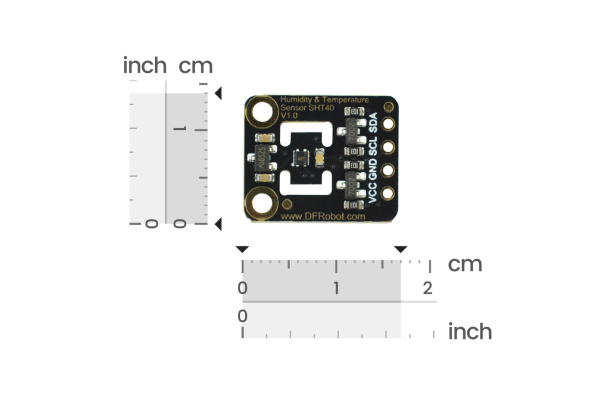

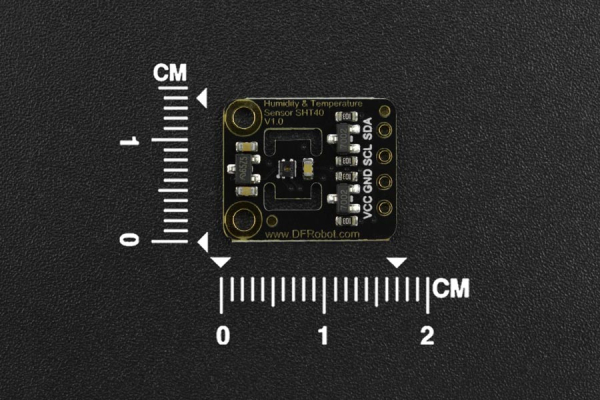

    Board Overview

    Fermion:SHT40 humidity & temperature sensor

    Connection Diagram

    Features

  • High Accuracy
  • Low Power Comsumption
  • Small Size
  • Fast Response
  • Specification

  • Operating Voltage: 3.3V-5V
  • Operating Current: 0.45mA
  • Communication Interface: I2C
  • Response Time: 8s (tau63%)
  • Humidity Measurement Range: 0~100%RH
  • Humidity Measurement Accuracy: ±1.8%
  • Temperature Measurement Range: -40~+125℃ (-40 to +275℉)
  • Temperature Measurement Accuracy: ±0.2℃
  • Dimension: 14x17mm/0.55x0.67"
  • Mounting Hole Size: M2 (2mm)
  • Mounting Hole Pitch: 10mm
  • Shipping List

  • Fermion:SHT40 humidity & temperature sensor x1
