Documents

  • Product wiki
  • Schematics
  • SHTC3 Datasheet
  • Introduction

    The SHTC3 digital humidity sensor from Sensirion builds on the success of the proven SHTC1 sensor and offers consistent high accuracy within the measuring range.

    The sensor covers a humidity measurement range of 0 to 100%RH and a temperature detection range of -40°C to 125°C with a typical accuracy of ±2%RH and ±0.2℃.

    The board supply voltage of 3.3V to 5V and a current consumption below 0.15mA in low power mode make the SHTC3 perfectly suitable for mobile or wireless battery-driven applications.

    Fermion: SHTC3 Humidity & Temperature Sensor

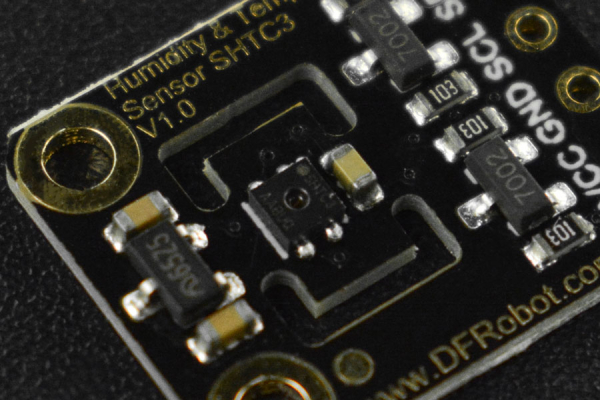

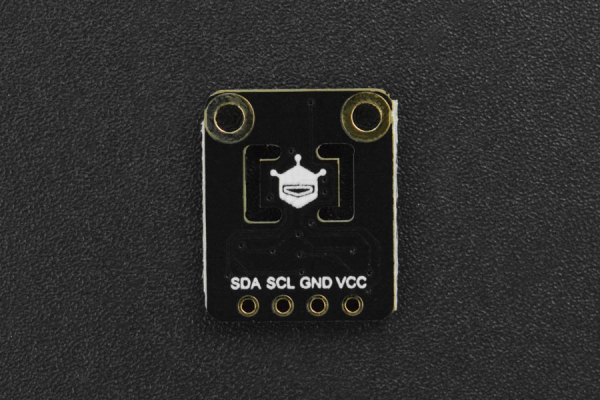

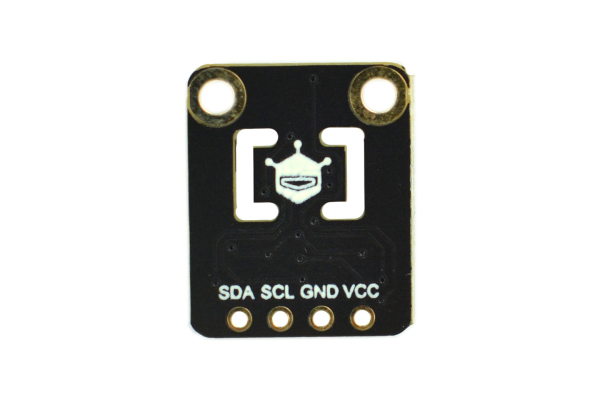

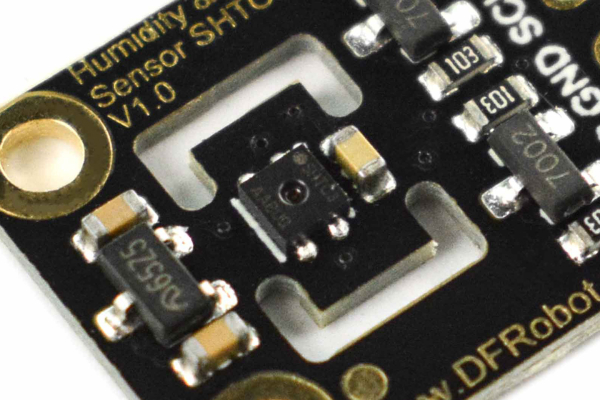

    Board Overview

    Fermion: SHTC3 Humidity & Temperature Sensor

    Connection Diagram

    Features

  • High accuracy
  • With low power mode
  • Specification

  • Communication Interface: I2C
  • Operating Voltage: 3.3V~5V
  • Operating Current: 0.45mA
  • Humidity Measurement Range: 0~100%RH
  • Humidity Measurement Accuracy: ±2%
  • Temperature Measurement Range: -40~+125℃ (-40~+275℉)
  • Temperature Measurement Range: ±0.2℃
  • Response Time: 8s(tau63%)

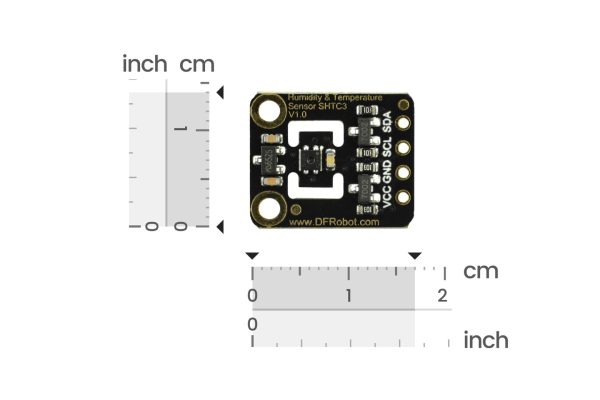

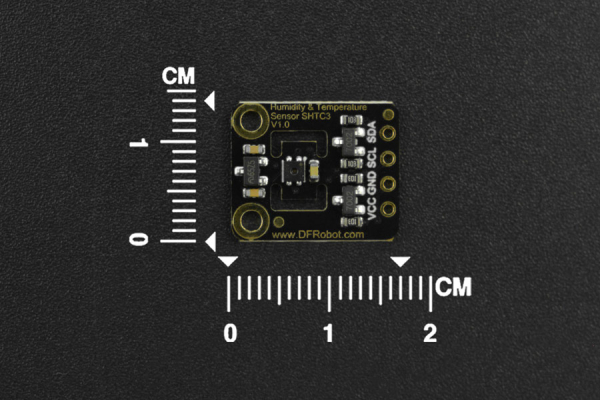

  • Dimension: 14*17mm/0.55*0.67”
  • Mounting Hole Size: M2 (2mm)
  • Mounting Hole Pitch: 10mm
  • Shipping List

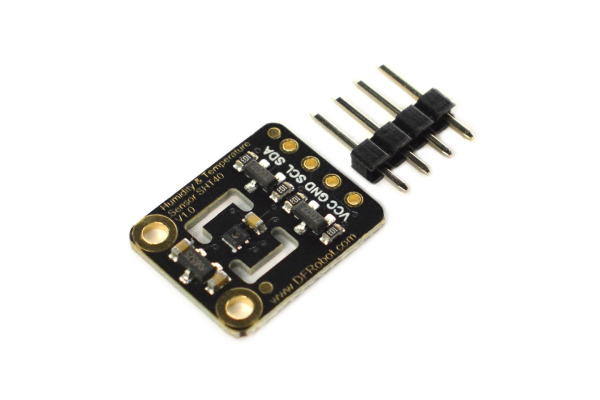

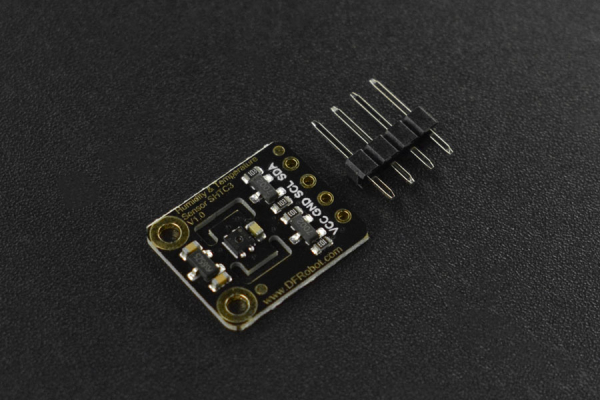

  • Fermion: SHTC3 Humidity & Temperature Sensor x1
  • 2.54 Black Single-row 4Pin Connector x1
