Varenr. SEN0434

Fermion: STS35 High Accuracy Digital Temperature Sensor (Breakout)

122,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

122,50 DKK pr. stk. -
108,00 DKK pr. stk.
Spar 12%
94,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Schematics

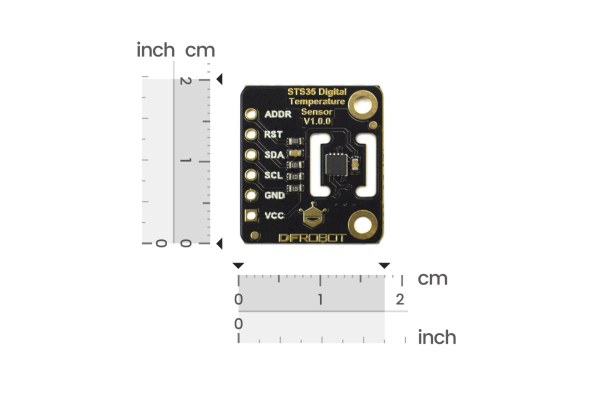

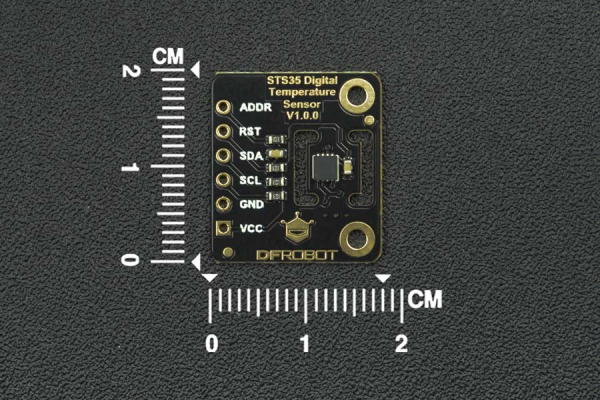

  • Dimensions & Components Layout
  • Introduction

    The STS35 temperature sensor from Sensirion gives a fully calibrated, linearized, and supply-voltage-compensated digital output and has an outstanding accuracy of up to +/–0.1°C.

    It provides an operating temperature range of -40~125℃ and up to 1MHz I2C communication rate. Besides, the sensor can heat up itself to dehumidify the chip, which means it can function properly in a certain level of humidity.

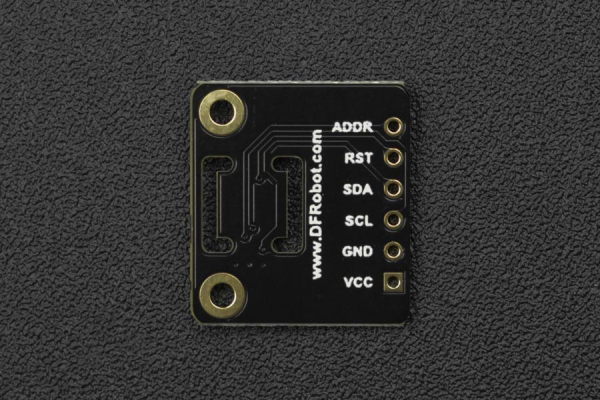

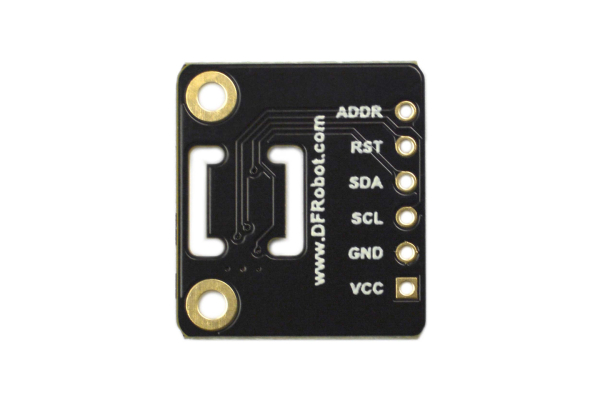

    Pinout


    I2C Wiring Diagram

    Features

  • Factory calibrated, accurate digital output
  • High accuracy, ±0.1℃ temperature error
  • Fast startup time, 0.5ms
  • High reliability, long-term stability
  • Specification

  • Operating Voltage: 2.15~5.5V DC
  • Heating Power Consumption: 3.6~33mW
  • Output Signal: I2C
  • Measuring Range: -40~125℃
  • Accuracy: ±0.1℃
  • Resolution: 0.01℃
  • Preheat: ≤1.5ms (Typical, 0.5ms)
  • Response Time: >2s
  • Operating Temperature: -40~125℃
  • Size: 20x17.5x2mm/0.79x0.69x0.08”
  • Mounting Hole Size: M2(2mm); Pitch 15mm
  • Shipping List

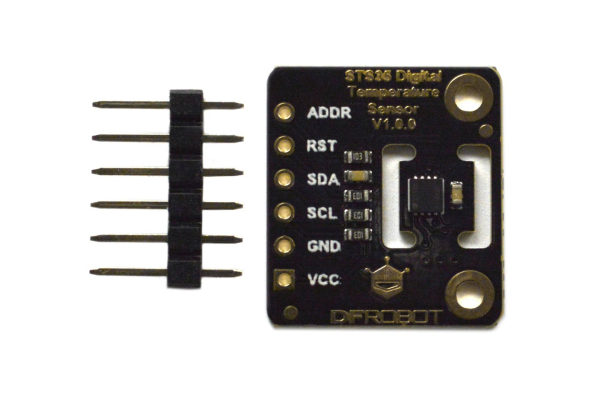

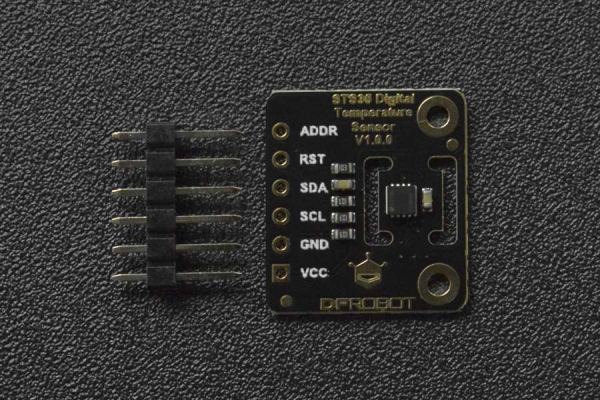

  • Fermion: STS35 High Accuracy Digital Temperature Sensor x1
