DFRobot

Varenr. SEN0156

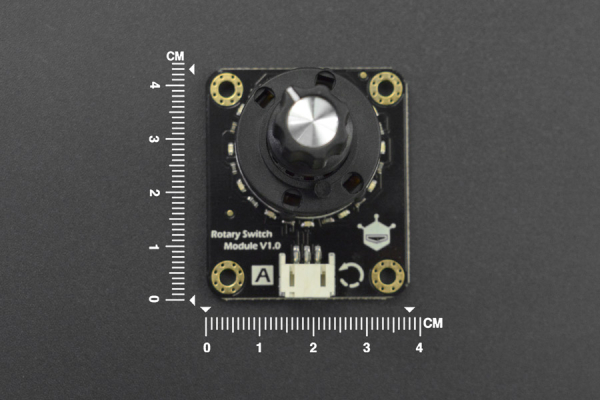

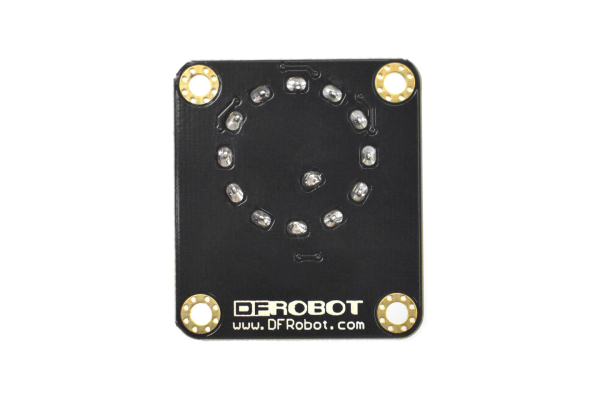

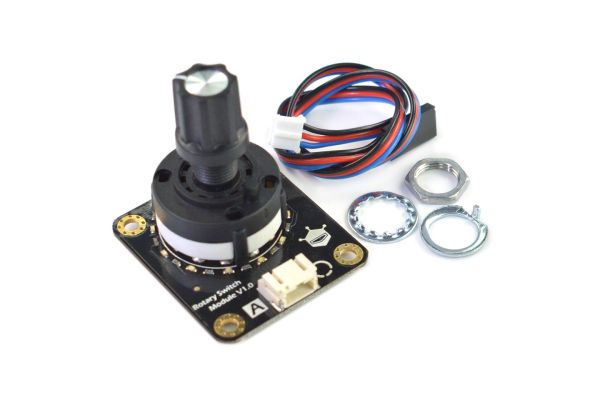

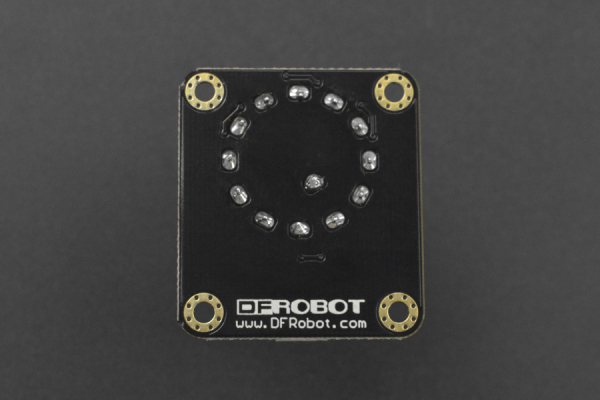

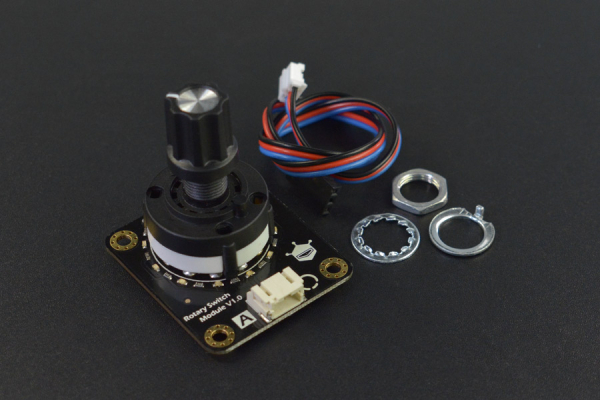

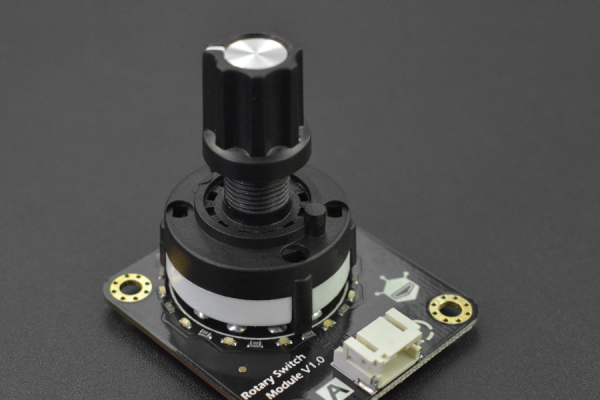

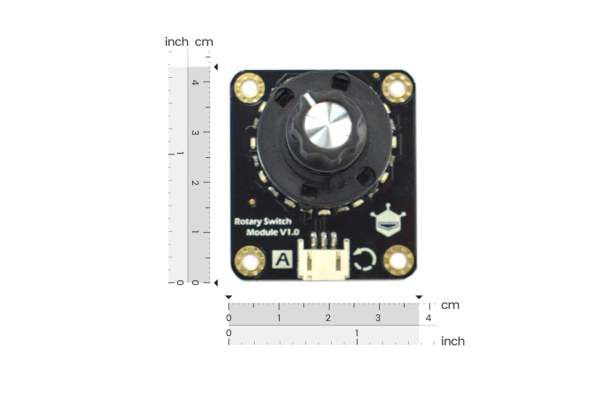

Gravity: Analog Rotary Switch Module V1

88,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

88,75 DKK pr. stk. -
78,00 DKK pr. stk.
Spar 12%
68,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Projects

Project. How To Build Your Own MechaGodzilla Armor! 56 Days To Make Wearable Monster Suit Using EVA & Gears!

TUTORIAL

TUTORIAL

  • Arduino Power Outlet with Exposed Pins
    2014-08-20 00:00:00

Introduction

A rotary switch is a switch operated by rotation. It is often used when more than 2 positions are needed, such as multi-speed control. The Rotary Switch uses an analog input to read the 12 state which saves IO resource for the Arduino. This Rotary Switch Module has 12 positions. Each position has the appropriate indicator. You can also adjust metal buckle inside the switch to change the position number. So, it's very flexible  to use.

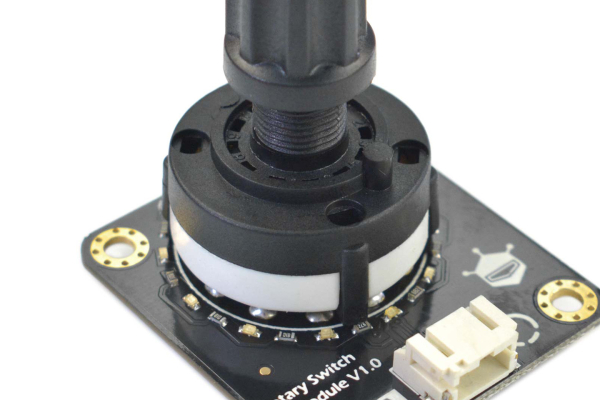

A rotary switch consists of a spindle or "rotor" that has a contact arm or "spoke" which projects from its surface like a cam. It has an array of terminals, arranged in a circle around the rotor, each of which serves as a contact for the "spoke" through which any one of a number of different electrical circuits can be connected to the rotor. Thus a rotary switch provides greater pole and throw capabilities than simpler switches do.

Notice:In order to make it easier for users and more intuitive understanding of our products, we are revising the sensor. A new version of the sensor has the following two features.

1. Unify the digital and analog sensor interface,and directly printed A,D on the board to represent analog and digital
2. Each sensor board is printed with an icon to simply illustrate sensor function.

In order to unfity interface, new version analog sensor pin will all be changed(Please see the following comparison chart). So the new version sensor is currently incompatible with  I/O expansion boards, but can be compatible with Romeo. We will continue to update. For the inconvenience caused, please understand.




Specification

  • 2-12 selectable tap position
  • Indicator leds for each position
  • Supply voltage: voltage controller
  • Interface: Analog
  • Size:43x38x40mm (1.89x1.50x1.57")
