DFRobot

Varenr. SEN0290

Gravity: Lightning Distance Sensor

327,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

327,50 DKK pr. stk. -
300,00 DKK pr. stk.
Spar 8%
273,00 DKK pr. stk.
Spar 17%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • More Documents
  • Introduction

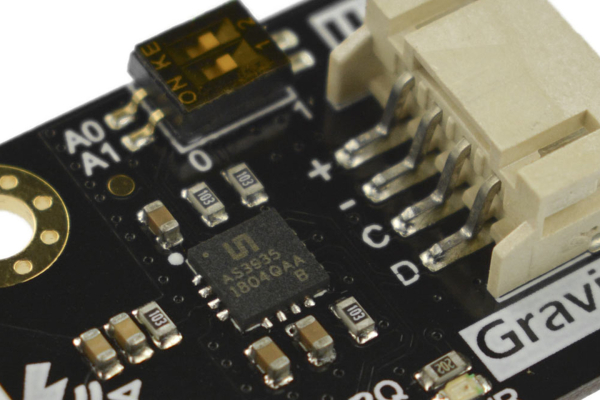

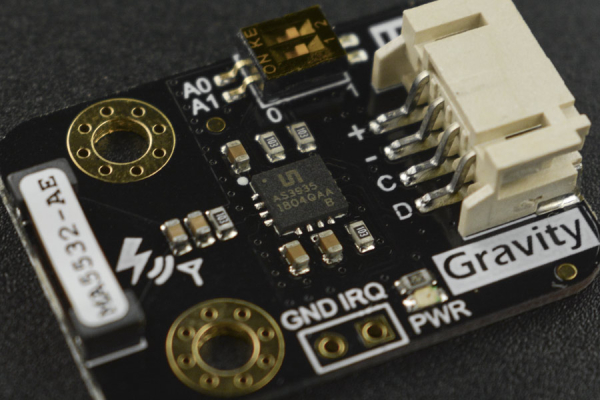

    Gravity: Lightning Sensor employs AMS innovative AS3935 Franklin lightning sensor IC and Coilcraft MA5532-AE dedicated antenna to detect lightning distance, intensity, and frequency within a radius of 40km both indoors or outdoors.

    The embedded man-made disturber rejection algorithm can effectively avoid the electrical interference generated by various household appliances. In addition to allowing general weather enthusiasts to measure local thunderstorm data simply and efficiently, thanks to its compact size and wide detection range, it can also be embedded in various smart wearable devices for outdoor climber or people who work at heights.

    This provides early warning of thunderstorms that people can perceive, so that people can take precautions a step ahead. The sensor can also be embedded in the indoor protection device inside lightning-sensitive equipment, and automatically trigger these devices to switch to the backup power to isolate the power grid when lightning strikes. At the moment of lightning, the interrupt pin IRQ generates a pulse. This can be used to trigger the shutter to open, helping photographers to accurately capture the exciting moment of lightning.

    The maximum estimated distance of lightning strike is 40km. Limited by the inherent measurement method and algorithm, the distance estimation resolution is 1~4km, 40 km in 15 steps. Read More details.

    Connection Diagram

    Gravity: Lightning Sensor (Arduino UNO)

    Gravity: Lightning Sensor (Arduino UNO)

    Gravity: Lightning Sensor (Raspberry Pi 3B)

    Gravity: Lightning Sensor (Raspberry Pi 3B)

    Features

    • Lightning detection within 40km in 15 steps
    • Lighting intensity detection
    • Used both indoors or outdoors
    • Embedded man-made disturber rejection algorithm

    Specification

    • Input Voltage : 3.3V~5.5V
    • Maximum Detection Range: 40 km
    • Distance Detection Resolution: 1~4 km
    • Intensity Detection Resolution: 21 bits, i.e. 0 ~16777201
    • I2C Address: Three options 0x03, 0x02, 0x01
    • Interface: Gravity I2C (logic level: 0-VCC)

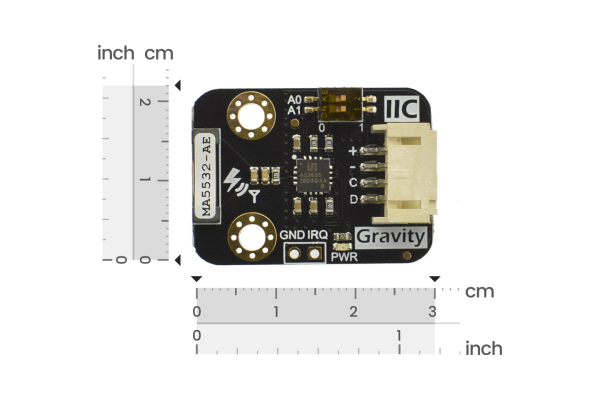

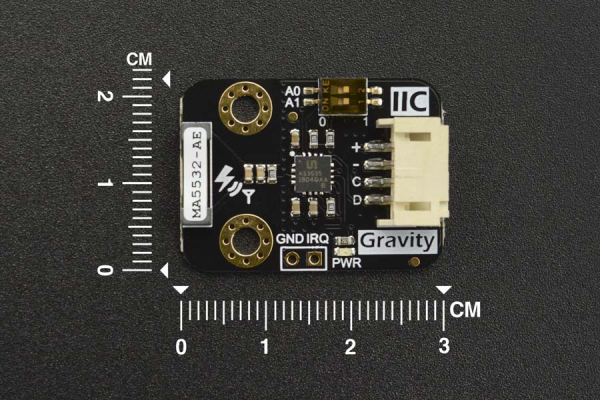

    • Dimension: 30.0mm*22.0mm/1.18*0.87 in

    Shipping List

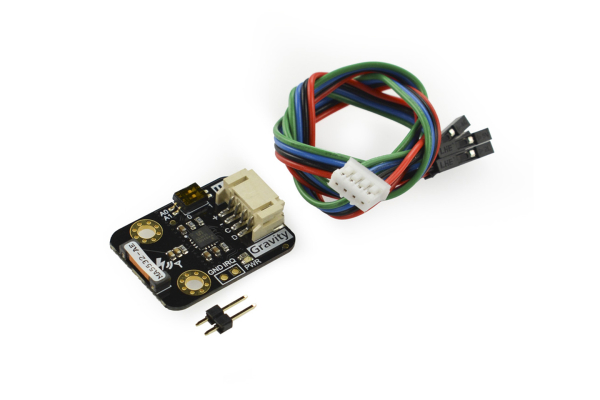

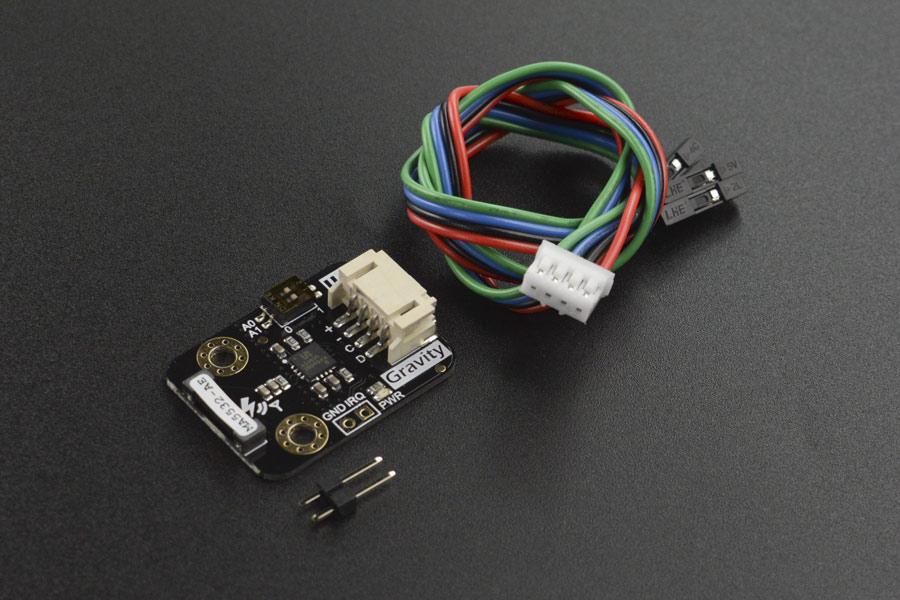

    • Gravity: Lightning Sensor                        x1
    • XH2.54-2P Black Header                        x1
    • Gravity-4P I2C/ UART Sensor Wire            x1
