Varenr. SEN0546

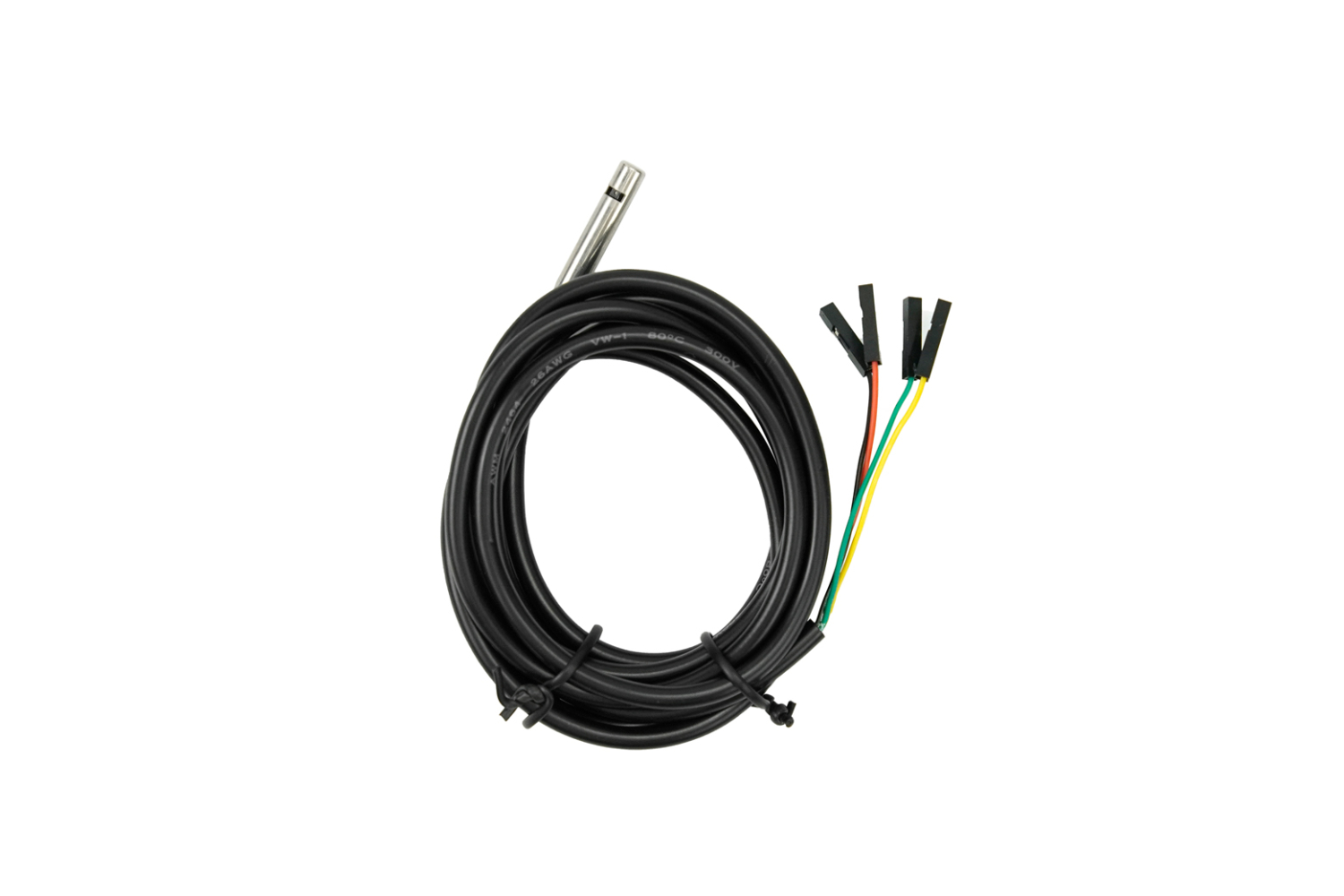

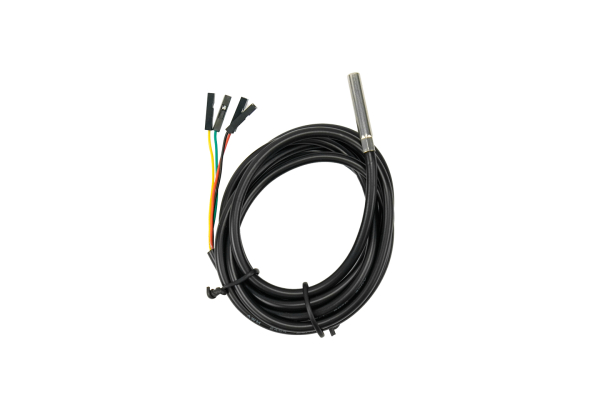

I2C Temperature & Humidity Sensor (Stainless Steel Shell)

112,50
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

112,50 DKK pr. stk. -
99,00 DKK pr. stk.
Spar 12%
86,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Datasheet
  • STM32_cht8305
  • Introduction

    This I2C digital temperature & humidity sensor offers high accuracy of ±3.0RH% for humidity and ±0.5℃ for temperature and features a user-programmable humidity & temperature alarm function.

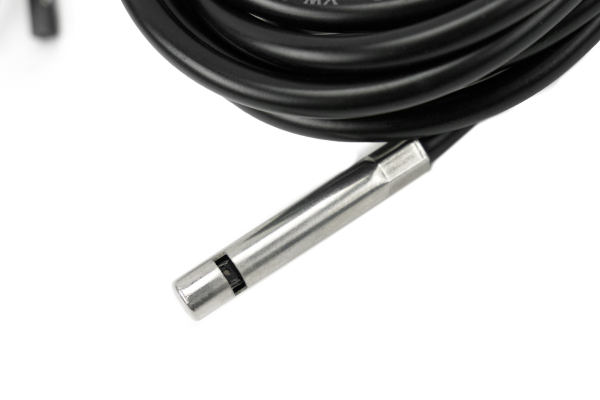

    Its housing is made of 304 stainless steel to ensure good impact resistance, heat resistance, low temperature, and chemical resistance. The sensor output is designed as DuPont 2.54 connector for easy wiring. Also, there are two built-in 4.7K pull-up resistors and one 100nF filtering capacitor so the sensor can be directly used with microcontrollers like Arduino.

    This temperature & humidity sensor can be applied to electronic, medical, automotive, industrial, weather, and other fields, including home appliances like HVAC, dehumidifiers and refrigerators, testing & inspection equipment, and other relevant temperature & humidity measurements and controls.

    Pinout


    Connection Diagram

    Features

  • 304 stainless steel, good impact resistance
  • Low power consumption, high accuracy
  • User-programmable temperature & humidity alarm response address (ARA)
  • Specification

  • Operating Voltage: 2.5V~5.5V
  • Standby Current: 0.05uA (Typical), 0.3uA (Max)
  • Average Operating Current: 1.5uA (Typical), 3.0uA (Max)
  • Temperature Measurement Range (℃): -40℃~125℃
  • Temperature Measurement Accuracy (℃): ±0.5℃@0℃~50℃
  • Humidity Measurement Range (%RH): 0%RH~100%RH
  • Humidity Measurement Accuracy (%RH): ±3.0%RH@20%RH~80%RH
  • Communication: I2C
  • Connector: DuPont 2.54
  • Reserved DuPont Wire Length: 5cm
  • Wire Length: 1.5m
  • Housing: 304 stainless steel

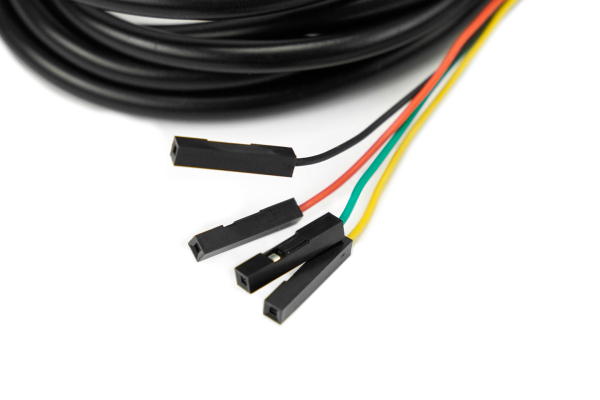

  • Wire Sequence: red VCC; black GND; white SCL; yellow SDA
  • Shipping List

  • I2C Temperature & Humidity Sensor (Stainless Steel Shell) x1
