DFRobot

Varenr. SEN0148

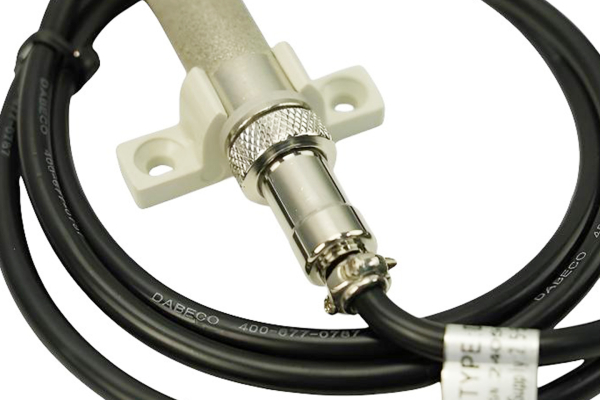

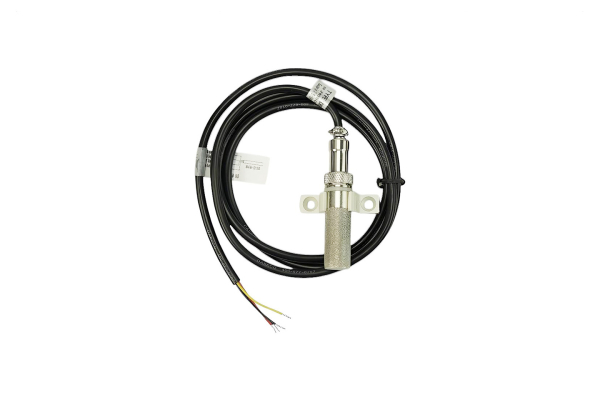

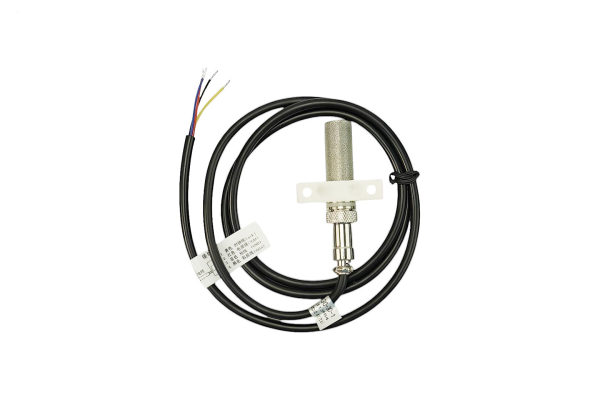

Digital Temperature & Humidity Sensor (With Stainless Steel Probe)

421,25
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

421,25 DKK pr. stk. -
394,00 DKK pr. stk.
Spar 6%
367,00 DKK pr. stk.
Spar 13%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

This is an anti-rust, robust and precise SHT30 sensor, which can master enterprise-class and industrial-level applications. It can be applied in various fields: telepoint base stations, electronic control cabinet, production site, storehouse, machine rooms, greenhouses, animal farming, medicine stock and etc. Metallic package enables it to deal with the very dusty or other severe circumstance. the wall-hanging style makes it easy to install.

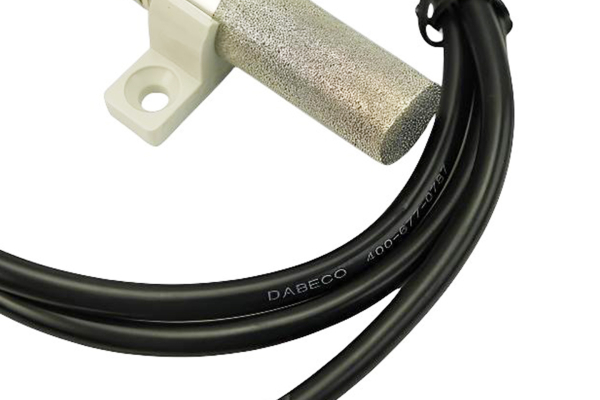

The metallic mesh covering the sensor adopts method of infiltering copper during sintering to enhance the temperature resistance, pressure resistance, and wearing resistance of it. The 2-wire serial interface and internal voltage regulation allows for easy and fast system integration. Moreover, it's Arduino compatible and we will supply the library for it.

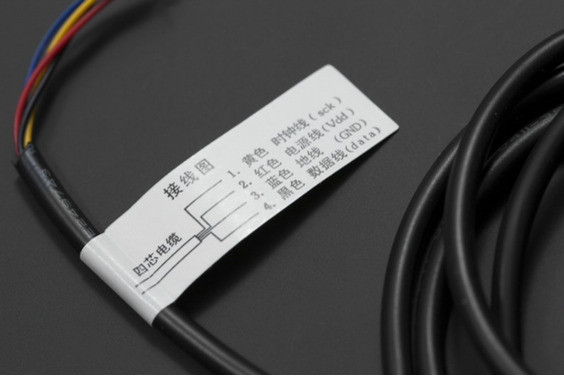

Caution: the line to the ground is blue instead of black.

Connection

Digital Temperature & Humidity Sensor (With Stainless Steel Probe)

Specification

  • Power consumption: 0.15mW(Average)
  • Interface Type: Two-Wire interface(Digital)
    • Red wire - 5v
    • Blue wire - GND
    • Yellow wire - Clock wire
    • Black wire - Data wire
  • Humidity Ranger:0-100%RH
  • Temperature ranger: -10-80℃
  • Humidity accuracy:±5.0%RH
  • Temperature accuracy:±0.5℃
  • Size: 49mm x 14mm (1.93" x 0.55")
  • Cable Length: 90 cm

Shipping List

  • Digital Temperature and humidity sensor   x1
