DFRobot

Varenr. SEN0235

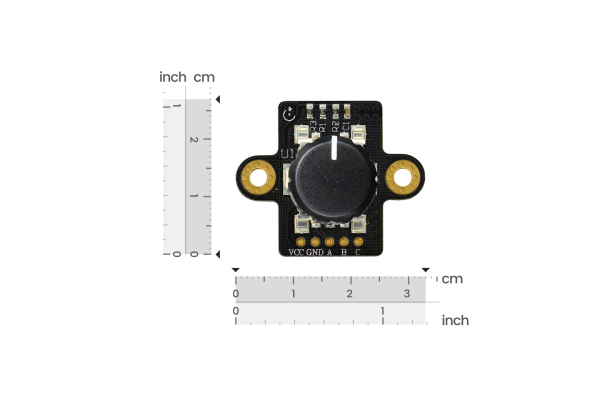

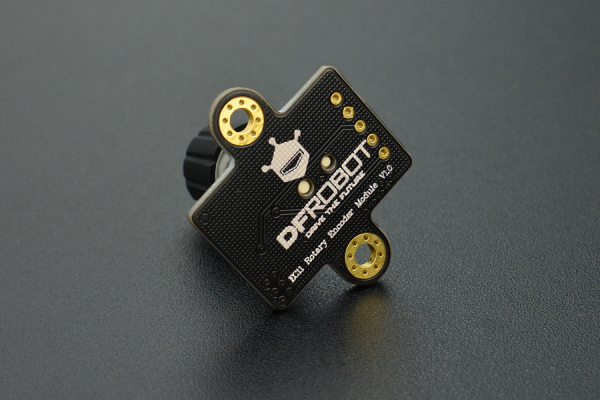

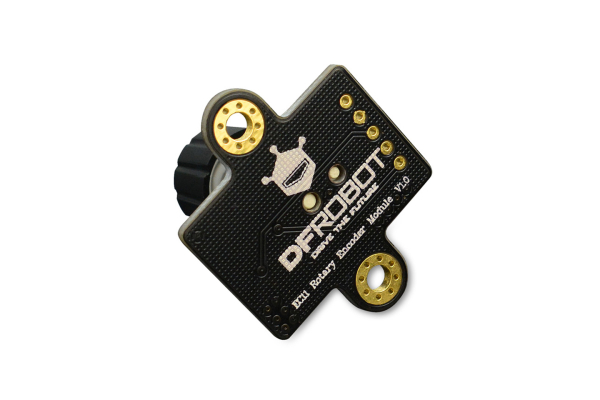

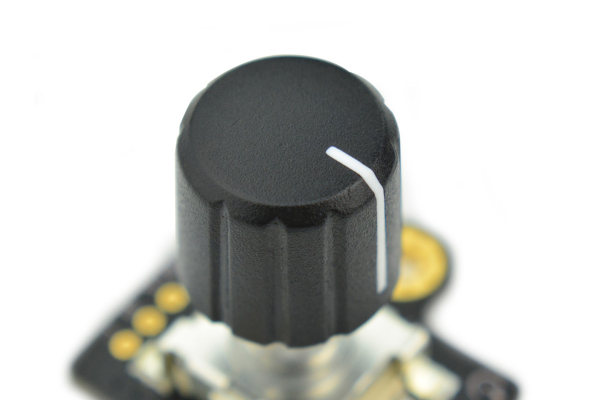

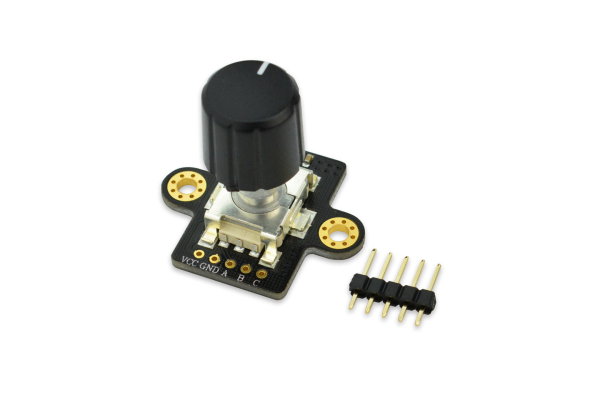

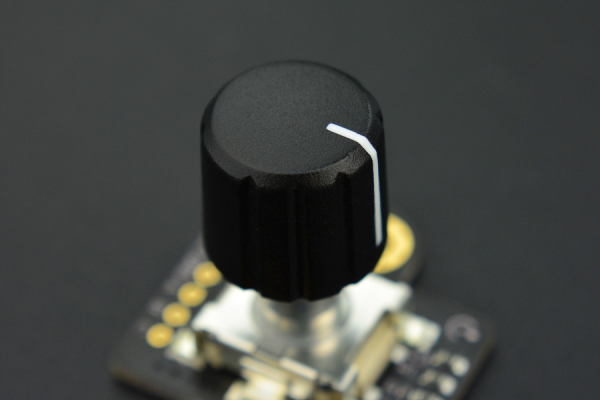

Fermion: EC11 Rotary Encoder Module (Breakout)

48,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

48,75 DKK pr. stk. -
43,00 DKK pr. stk.
Spar 12%
37,00 DKK pr. stk.
Spar 24%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Product WIKI

Introduction

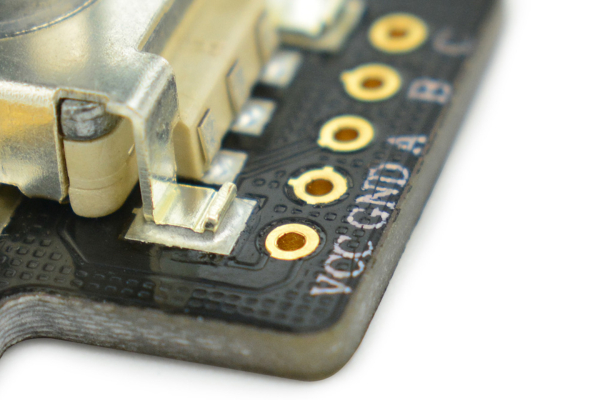

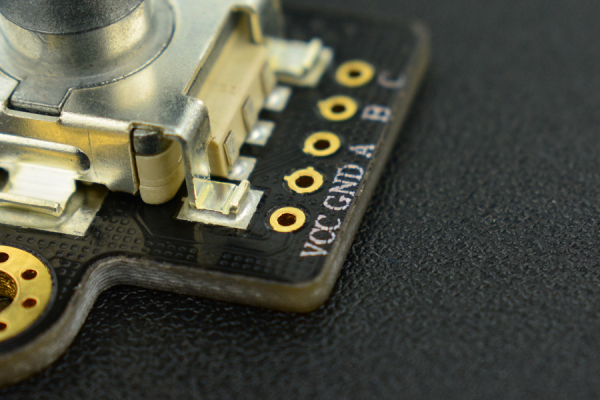

The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are encoder output; terminal C is the button signal output. It is quite suitable for applications such as a volume knob and varying lighting voltage. The rotary encoder module comes with XH2.54 bonding pad, easy to use in prototyping projects such as automotive electronics, multimedia speakers, instrumentation, smart home and other fields.

Specification

  • Operating Voltage: 3.3V ~ 5V
  • Full Rotation Angle: 360 degrees (no stop point)
  • Number of pulse: 20
  • Rotation Life: 30000 ± 200 Cycles
  • Contact Resistance: ≤ 100mΩ
  • Insulation Resistance: 100MΩ or more
  • Oscillation: <10ms Press
  • Working Temperature: -30 ℃ ~ +80 ℃

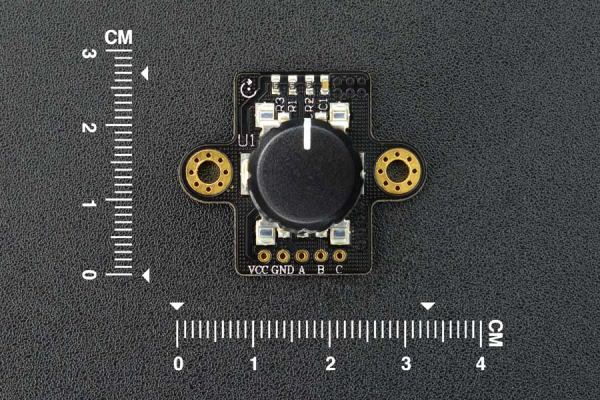

  • Module Size: 33.8 * 22.4 (mm) /1.3 * 1.1 (inches)
  • Weight: 14g
  • Shipping List

  • EC11 Rotary Encoder Modulex1
  • XH2.54-5pin header x1
