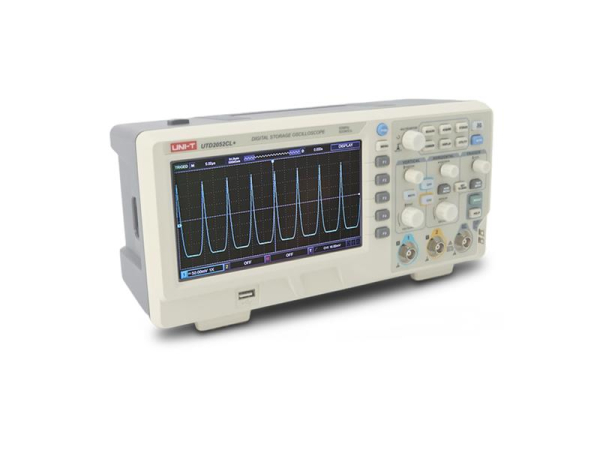

Osciloskop UNI-T UTD2102CL+

The UTD2102CL+ oscilloscope is a multifunctional, high-performance desktop digital oscilloscope from the UTD2000CL+ series, which is easy to operate, with very good technical specifications, with two analog input channels, offering a bandwidth of 100 MHz with a sampling rate of 500MS/s. It is equipped with a seven-inch color TFT display with a resolution of 800 x 480 pixels.

The oscilloscope has an internal memory with a depth of 64 kpts and a waveform capture speed of 5,000 wfms/s and allows automatic measurement of up to 34 signal parameters and work with mathematical operations between signals.

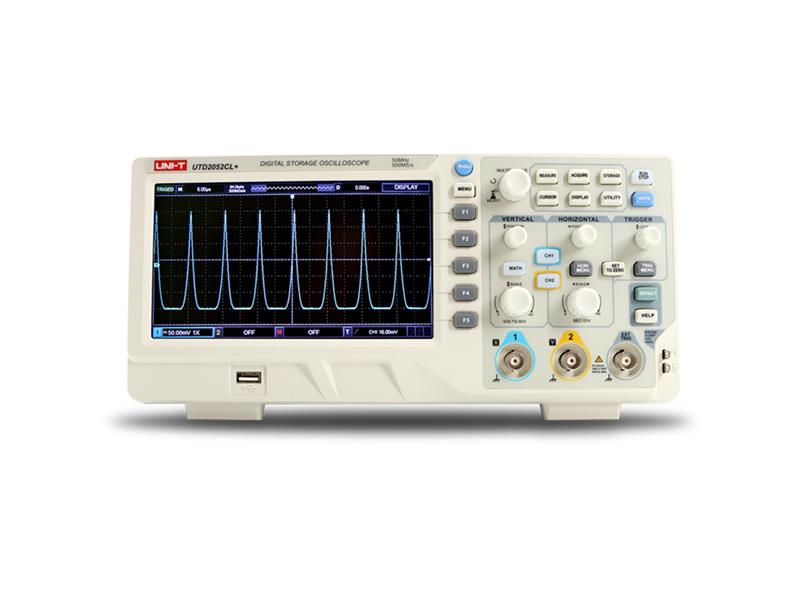

A simple front panel with clearly marked functions for basic operations, scaling and positioning of individual channels allows the use of habits acquired in the use of traditional instruments, so the oscilloscope can be used without the need to learn anything complicated and can be used for long periods without fatigue. In addition, the device can be easily set by pressing the AUTO button.

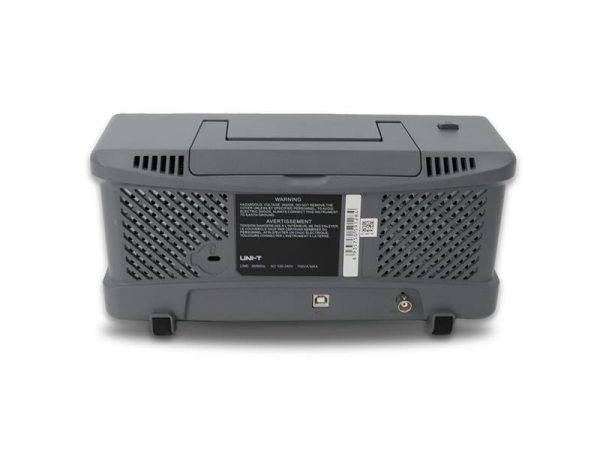

The oscilloscope supports USB storage, and thanks to the USB OTG function, you can save the measured values ​​to a USB flash drive. It also supports PC communication via USB plug and play. The option to download software for connecting to a PC and updating the firmware from the manufacturer's website:
https://instruments.uni-trend.com/download?name=161&scode=77&series=UTD2000CL+/CL

You can download the datasheet from the manufacturer's website: http://unitrend.oss-cn-hongkong.aliyuncs.com/20220526/1653548284320621.pdf


Product parameters :

- bandwidth:



100MHz
- number of channels:


2
- input coupling:



(1MΩ±2%)//(18pF±3pF)
- compensated signal input:


in the range of 3Vpp/1kHz
- max. input voltage:


400Vpk, transition max. 1000Vpk
- sampling:



500MS/s
- time base range:



2ns/div to 50s/div
- rise time:



≤ 3.5ns
- vertical axis:



1mV/div to 20V/div (1MΩ), each channel has a separate vertical menu
- vertical resolution:



8 bit
- accuracy of DC gain:


≤ ±3% in the range 5mV to 20V/div and ≤ ±4% in the range 1mV to 2mV/div
- length of saved recording:


2 x 512k sampling points
- memory depth:



one channel 64kpts, two channels 2 x 32kpts
- triggering:



Edge, Pulse, Video, Slope, Alternating trigger
- mathematical operations with waveforms:
A+B, A-B, AxB, A/B, FFT, Editable Advanced, Filter
- automatic measurement of signal parameters:
Max, Min, High, Low, Middle, Pk-Pk, Ample, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, OverShoot, PreShoot, Period, Freq, Rise, Fall, + Width, -Width, +Duty, -Duty, RiseDelay, FallDelay, Phase, FRFR, FRFF, FFFR, FFFF, FRLF, FRLR, FFLR, FFLF
- number of measurements:


5 simultaneous measurements
- statistical measurement:


average, Max, Min, standard deviation, number of measurements
- frequency counter:



6 bits
- standard interface:



USB-Host, USB-Device, AUX (Trig Out, Pass/Fail)
- software buttons in the screen
- on-screen software keyboard for naming saved files
- number of files stored in the oscilloscope memory/USB flash: 20/200
- saving the current screen in BMP format on a USB flash drive
- multilingual menu (among others English, German, French, Portuguese, Spanish, Russian)


Technical parameters :

- display:




TFT LCD, diagonal 178mm (7 inches), 800 x 480 pixels x RGB, max. brightness typically 300nit
- calibration interval:


1 year
- power supply:



100V-240V AC, 50/60Hz
- consumption:



max. 100VA
- ambient working temperature:

0°C to +40°C
- ambient working humidity:


<35℃: ≤90%RH, 35℃ to 40℃: ≤60%RH
- working altitude:



max. 2000m
- storage temperature:


-20°C to +60°C
- dimensions (w x h x d):


306 x 138 x 124 mm
- weight:




Net 2.5kg, Gross 3kg


Contents of individual packaging :

- oscilloscope UTD2102CL+:


1 pc
- probe 100MHz UT-P04 (with compensation and switchable divider 1x, 10x): 2 pcs
- detachable three-wire power cable:

1pc
- USB cable UT-D14:



1 pc
- a quick installation guide with a link to the manufacturer's website
- instructions for use


Manufacturer:
UNI-TREND
- www.uni-t.cz
