DFRobot

Varenr. DFR0028

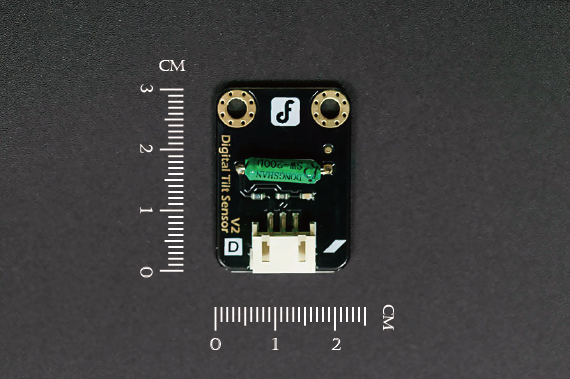

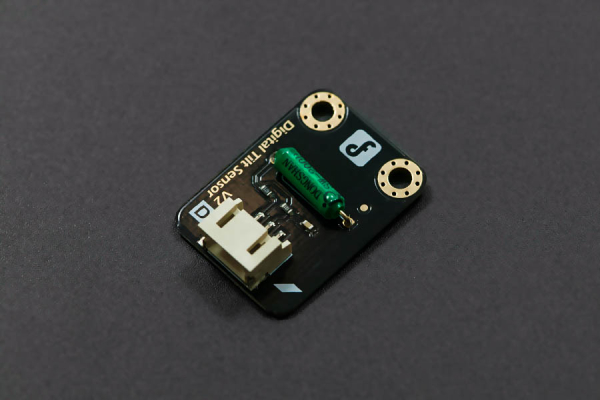

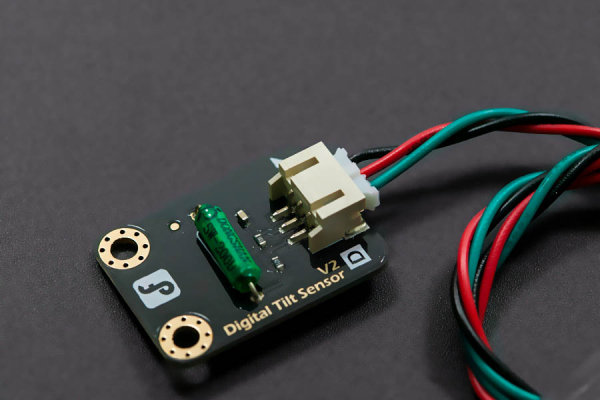

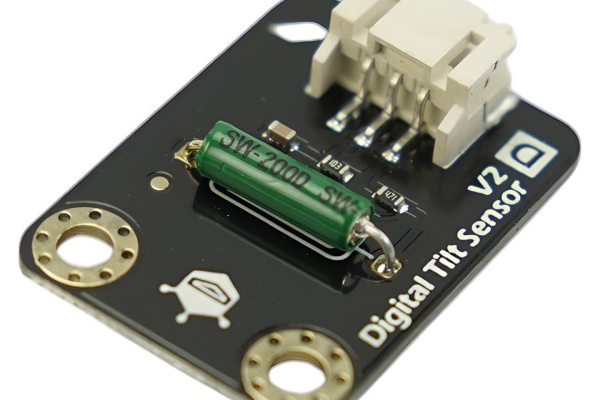

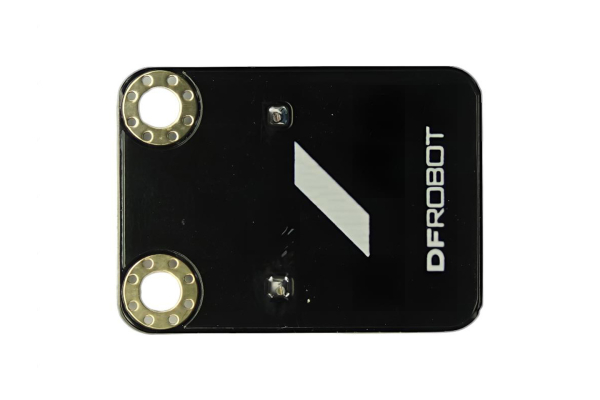

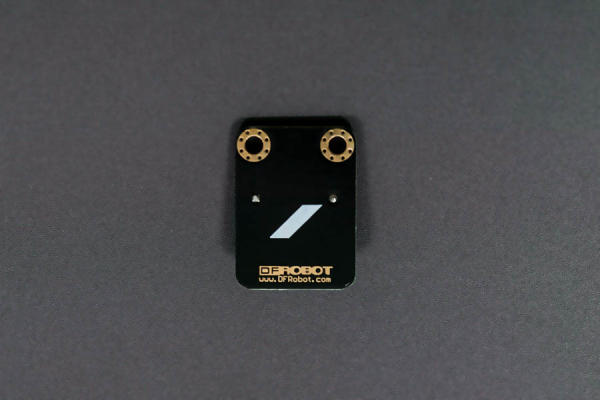

Gravity: Digital Tilt Sensor for Arduino / Raspberry Pi

33,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

33,75 DKK pr. stk. -
29,00 DKK pr. stk.
Spar 14%
24,20 DKK pr. stk.
Spar 28%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

Introduction

This is an arduino tilt sensor. It is used to detect orientation. Inside the sensor, there is a ball that make contact with the pins when the case is upright. Tilt the sensor over and the balls don’t touch, thus not making a connection.

Here is the principle of tilt sensor to illustrate how it works:

Arduino Tilt sensor: how it works

Simple plug to our Arduino IO Sensor Expansion Shield, you can make amazing interactive projects.

As this sensor is now woking under 3.3V, it is now able to be compatible with Raspberry Pi. An Arduino Shield for Raspberry Pi B+/2B/3B will make it easy to use.

Features

  • Wide voltage range from 3.3V to 5V
  • Standard assembling struct (two 3mm holes with multiple of 5cm as interval)
  • Easily recognitive interfaces of sensors ("A" for analog and "D" for digital)
  • High quality connector
  • Immersion gold surface

Specification

  • Supply Voltage: 3.3V to 5V
  • Interface: Digital
  • Size:22x30mm (0.87 x 1.18 in)

Shipping List

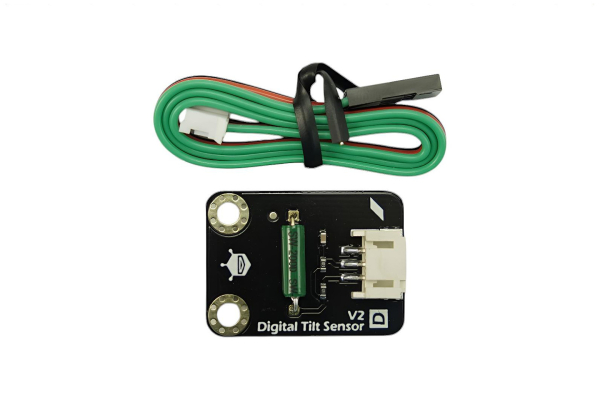

  • Digital Tilt Sensor For Arduino x1
