Varenr. SEN0497

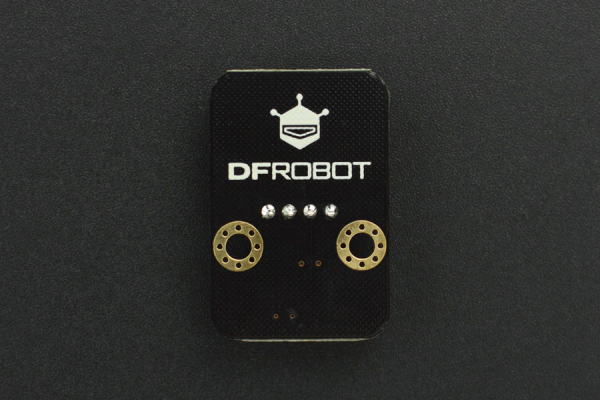

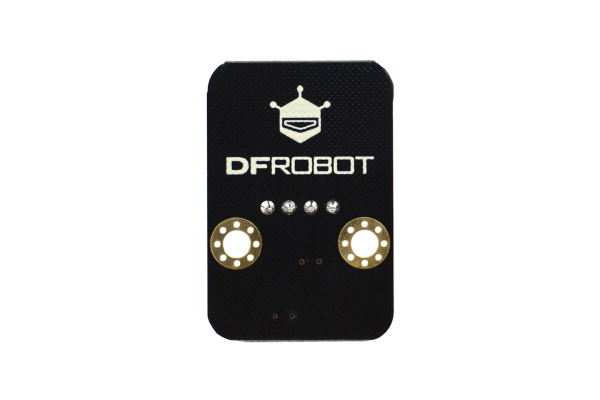

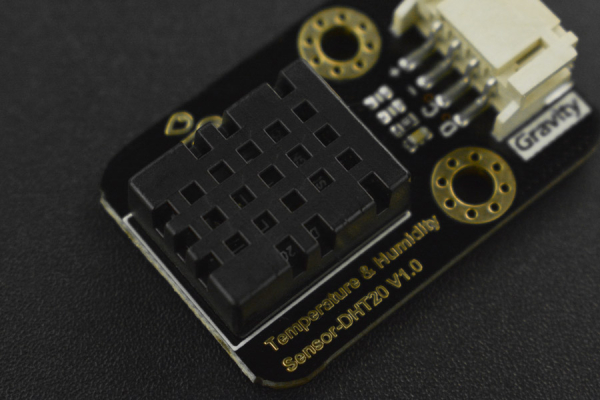

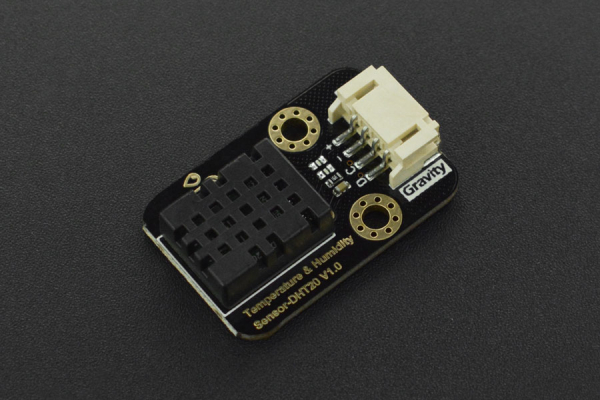

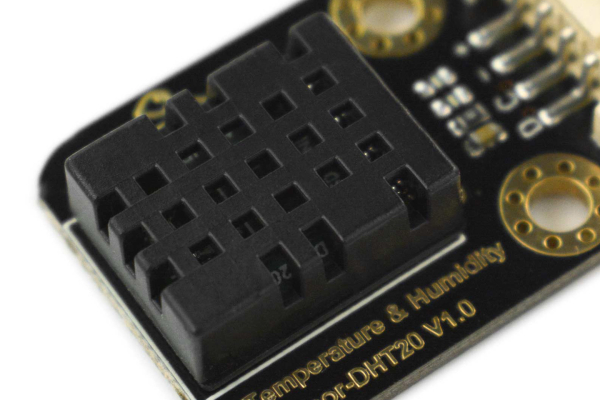

Gravity: DHT20 Temperature & Humidity Sensor for Arduino

128,75
DKK

På fjernlager Bestil før Onsdag kl 20 og varen afsendes ugen efter

Køb flere og spar:

128,75 DKK pr. stk. -
113,00 DKK pr. stk.
Spar 12%
99,00 DKK pr. stk.
Spar 23%

This item is only sold in badges of .

eller

Du skal vælge en variant.
Minimumsmængde nået.
Maksimal mængde nået
  • Fri fragt ved køb over 999 kr

    Til pakkeshop i DK Læs mere.

  • 60 dages returret

    Se venligst Handelsbetingelser Læs mere.

  • Danmarks største udvalg

    Over 4000 produktnumre Læs mere.

Documents

  • Product wiki
  • Introduction

    The DHT20 temperature & humidity sensor is the newly upgraded version of the DHT11. Data accuracy, stability, response speed, measurement range are greatly improved up.

    DHT20 is a brand new ASIC dedicated chip, an improved MEMS semiconductor capacitive humidity sensor element and a standard on-chip temperature element. All sensors are factory calibrated and characterized by low power, high precision & stability, fast response, and strong anti-interference. Moreover, the DHT20 performance parameters of accuracy, power supply voltage, measurement range and response time have been enhanced greatly over the previous generation, making it more cost-effective.

    Besides that, the DHT20 temperature & humidity sensor employs I2C digital output protocol, which is very suitable for HVAC, automobiles, data loggers, weather stations, home appliances, and other related temperature and humidity detection and controlled areas.

    Application


    Selection Guide

    Gravity: DHT11 Temperature & Humidity Sensor Gravity: DHT22 Temperature & Humidity Sensor Gravity: DHT20 Temperature & Humidity Sensor
    SKU DFR0067 SEN0137 SEN0497
    Communication Method One wire One wire I2C
    Operating Voltage 3.3-5V 5V 3.3-5V
    Temperature range ± error 0~+50 ± 2 ℃ -40~+80 ± 0.5℃ -40~+80  ± 0.5℃
    Humidity range ± error 20~90% ± 5%RH 0~100% ± 2%RH 0~100% ± 3%RH
    Introduction Classic temperature and humidity sensor, low price, suitable for designs with low accuracy requirements High-precision temperature and humidity sensor, high price, high detection range and accuracy High-precision temperature and humidity sensor, DHT11 upgrade version, the same price but improved performance, using I2C communication, data is more stable

    Features

  • Factory calibration
  • I2C digital output
  • Quick response, strong anti-interference ability
  • Low power, low cost
  • Compatible with mainboards like Arduino, micro:bit, ESP32, Raspberry Pi
  • Compatible with 3.3~5.5V main controller
  • Specification

  • Operating Voltage: 3.3V ~ 5.5V DC
  • Operating Current: <1mA
  • Output Signal: I2C (0×38)
  • Temperature Range: -40 ~ +80°C ±0.5°C
  • Humidity Range: 0~100%RH ±3%RH (25°C)
  • Resolution: 0.01℃, 0.024%RH
  • Storage Condition: 10℃-50℃, 20-60%RH

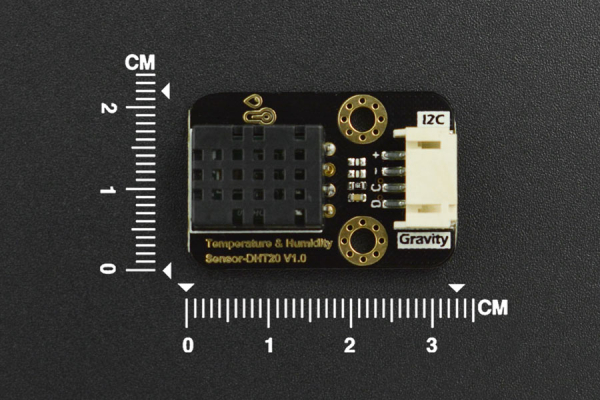

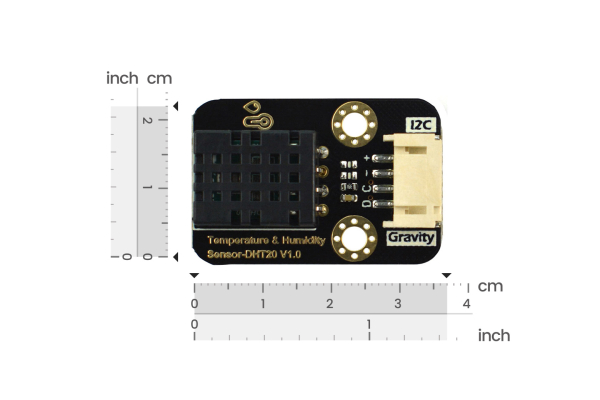

  • Board Dimension: 22*33 mm/0.87*1.30”
  • Mounting Hole Size: Inner diameter 3.1mm (0.13”)/Outer diameter 6 mm (0.24”)

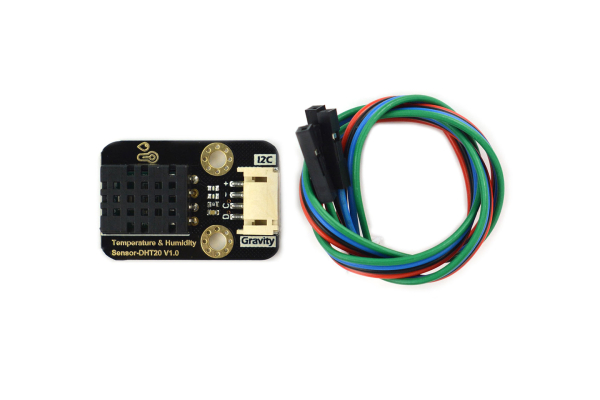

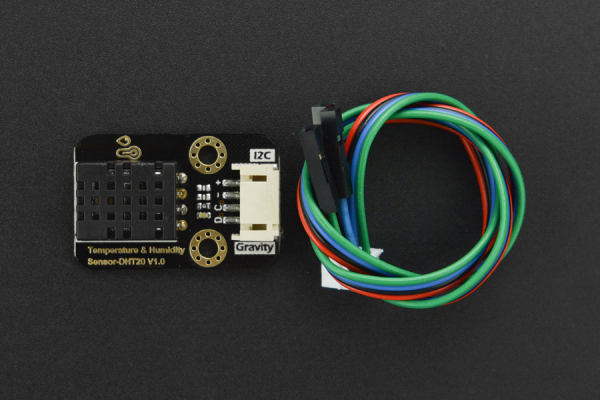

  • Shipping List

  • Temperature and Humidity Sensor x1
  • Gravity-4Pin I2C Sensor Connector (30cm) x1
